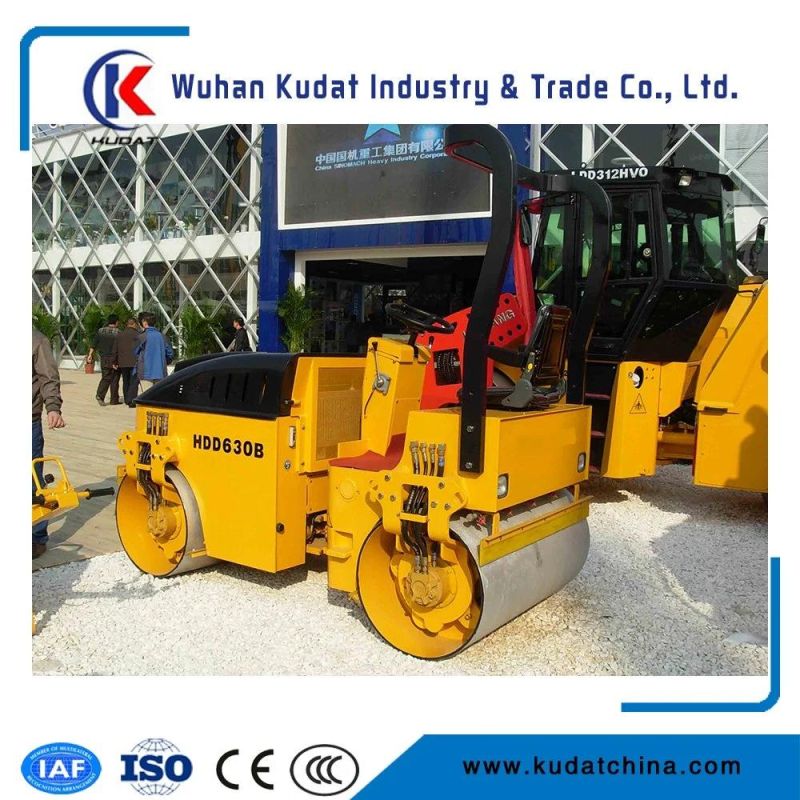

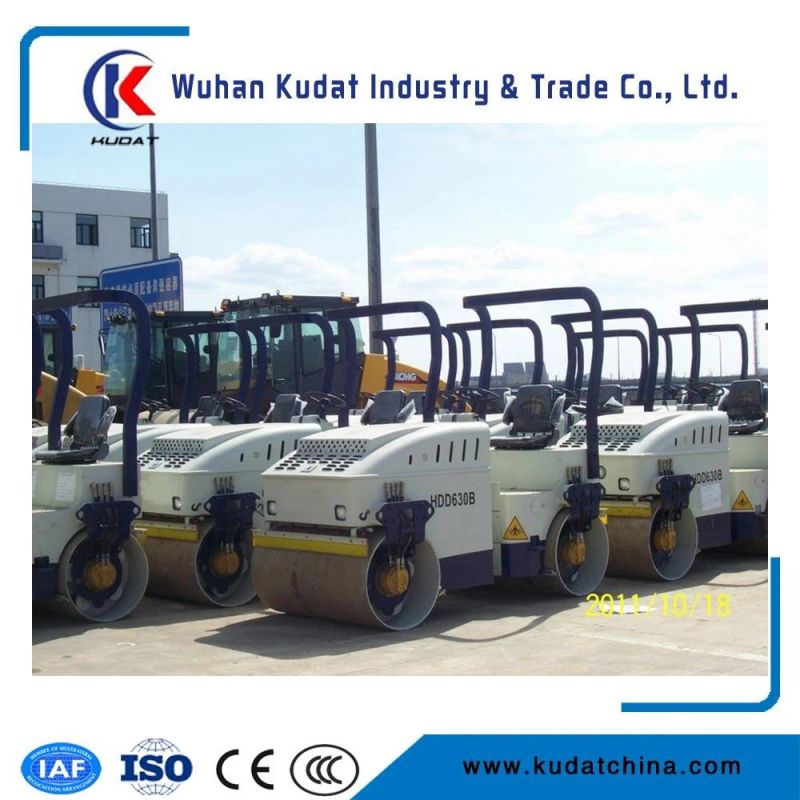

3 Tons Fully Hydraulic Dual Drum Road Roller with Ubota Diesel Engine 26kw
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Road Roller
- Object：Soil Surface
- Moving Type：Mobile
- Mixing Method：Continuous Drum
- Automatic Grade：Automatic
- Certification：ISO9001: 2000, CE
Base Info
- Model NO.：HDD630B
- Condition：New
- Operation Mass：3000
- Front/Rear Module Mass：1550,1450kg
- Static Linear Load (Front Wheel)：119n.Cm
- Static Linear Load (Rear Wheel)：112n.Cn
- Water Tank Capacity：110L
- Fuel Tank Capacity：80L
- Hydraulic Oil Tank Capacity：70L
- Steering Radius：5000mm
- Grade Ability：30%
- Vibration Amplitude：0.45mm
- Transport Package：by Sea Required
- Trademark：kudat
- Origin：China
- Production Capacity：50, 000 PCS,Year
Description
ModelHDD630 Operation mass kg 3000 Front/Rear module mass kg 1550/1450 Static linear load (front wheel) N.cm 119 Static linear load (rear wheel) N.cn 112 Water tank capacity L 110 Fuel tank capacity L 80 Hydraulic oil tank capacity L 70 Steering radius mm 5000 Grade ability % 30 Vibration amplitude mm 0.45 Vibration frequency Hz 57 Turning angle 30 degree Vibration drum diameter/width/thickness mm 700/1300/12 Swing angle 7 degree Wheel base mm 1948 Overall dimension (LxWxH) mm 2650x1380x2540 Min. ground clearance mm 220 Engine model KUBOTA D1703 Engine rated power 26kw@2600rpm Driving speed Km/h 0-9
