Haiqin Brand Small Bee Loader (HQ908) with Ce, TUV
Weifang Haiqin Top Machinery Co., Ltd.- Certification：TUV, ISO, CE, SGS,Rops&Fops
- Condition：New
- Rated Load：<1t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：HQ908
- Type：Small Loader
- Loading Weight：800kg
- Operating Weight：2550kg
- Engine Power：29kw
- Cabin：Rops&Fops for Option
- Transport Package：4 Units in a 40 Container
- Specification：CE, ISO, SGS, ROPS&FOPS
- Trademark：Haiqin
- Origin：Shandong, China
- HS Code：84295100
- Production Capacity：6000 Units,Year
Description
Main Technical Parameter of HQ908 mini loader Item Parameter Rated load (kg) 800 Max load (kg) 1000 Bucket capacity (m 3 ) 0.4-0.5 Wheel tread (mm) 1160 Wheel base (mm) 1620 Min turning radius (mm) 3000 Min ground clearance (mm) 220 Dumping height (mm) 2300 Corresponding dumping reach (mm) 900 Lifting time (s) 4.5 Hydraulic cycle time (s) 9 Maximum excavating force (KN) 21 Drive mode Four Wheel Drive Machine weight (kg) 2600 Overall dimensions (mm) (Length*width*height) 4480*1300*2200 Engine model Changchai 390 engine Rated power of engine (kw) 29KW Rated speed of engine (rpm) 2200

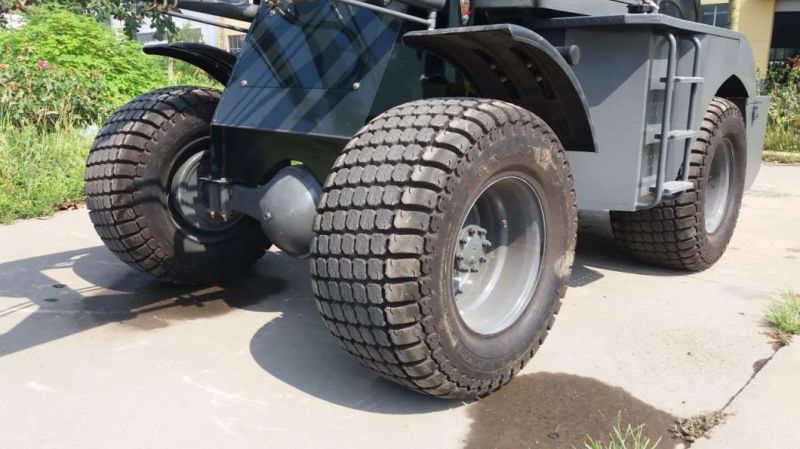

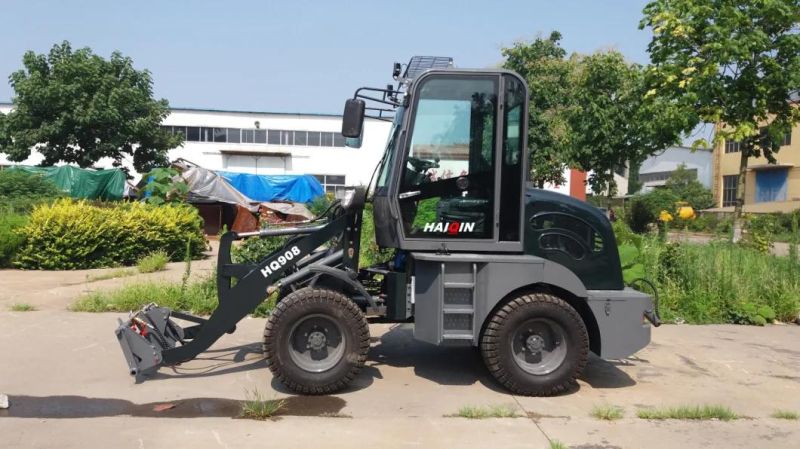

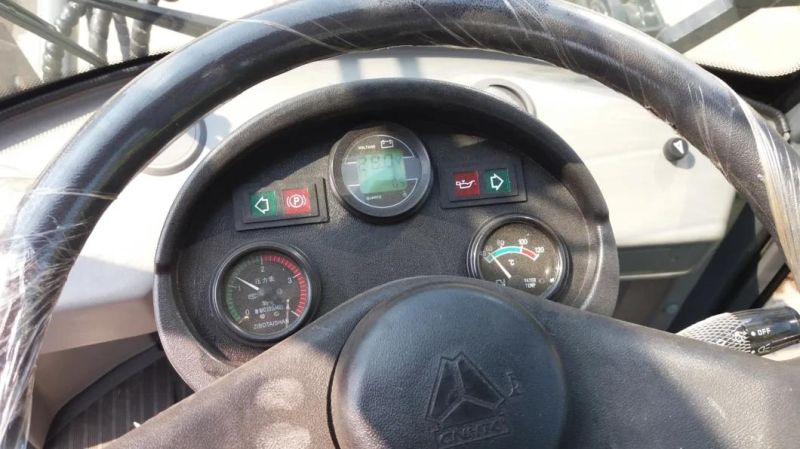

3, More details photos of bee loader / payloader :

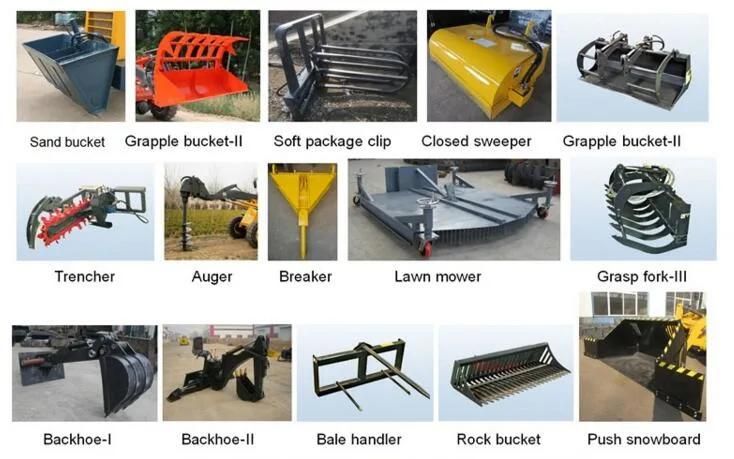

4, The attachments we can attach to our Farm tractor .
5, Factory view of haiqin machinery .
