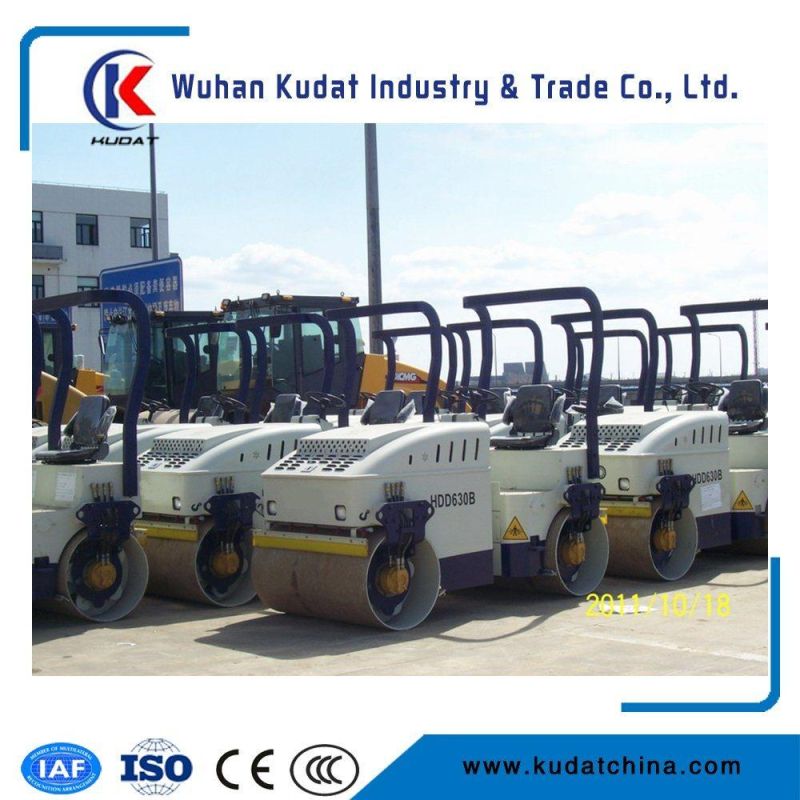

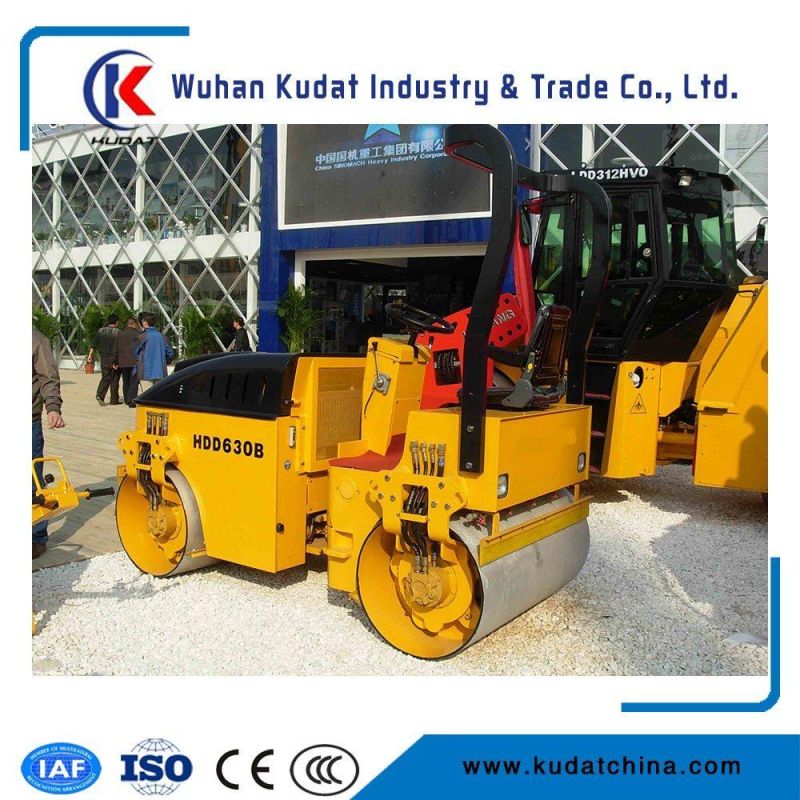

Fully Hydraulic Dual Drum Road Roller 3000kg with Japan Kubota Diesel Engine
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Road Roller
- Object：Soil Surface
- Moving Type：Mobile
- Mixing Method：Continuous Drum
- Automatic Grade：Automatic
- Certification：ISO9001: 2000, CE
Base Info
- Model NO.：HDD630B
- Condition：New
- Operation Mass：3000
- Front/Rear Module Mass：1550,1450kg
- Static Linear Load (Front Wheel)：119n.Cm
- Static Linear Load (Rear Wheel)：112n.Cn
- Water Tank Capacity：110L
- Fuel Tank Capacity：80L
- Hydraulic Oil Tank Capacity：70L
- Steering Radius：5000mm
- Grade Ability：30%
- Vibration Amplitude：0.45mm
- Transport Package：by Sea Required
- Trademark：kudat
- Origin：China
- Production Capacity：50, 000 PCS,Year
Description
ModelHDD630 Operation mass kg 3000 Front/Rear module mass kg 1550/1450 Static linear load (front wheel) N.cm 119 Static linear load (rear wheel) N.cn 112 Water tank capacity L 110 Fuel tank capacity L 80 Hydraulic oil tank capacity L 70 Steering radius mm 5000 Grade ability % 30 Vibration amplitude mm 0.45 Vibration frequency Hz 57 Turning angle 30 degree Vibration drum diameter/width/thickness mm 700/1300/12 Swing angle 7 degree Wheel base mm 1948 Overall dimension (LxWxH) mm 2650x1380x2540 Min. ground clearance mm 220 Engine model KUBOTA D1703 Engine rated power 26kw@2600rpm Driving speed Km/h 0-9
After-sales ServiceWarranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.

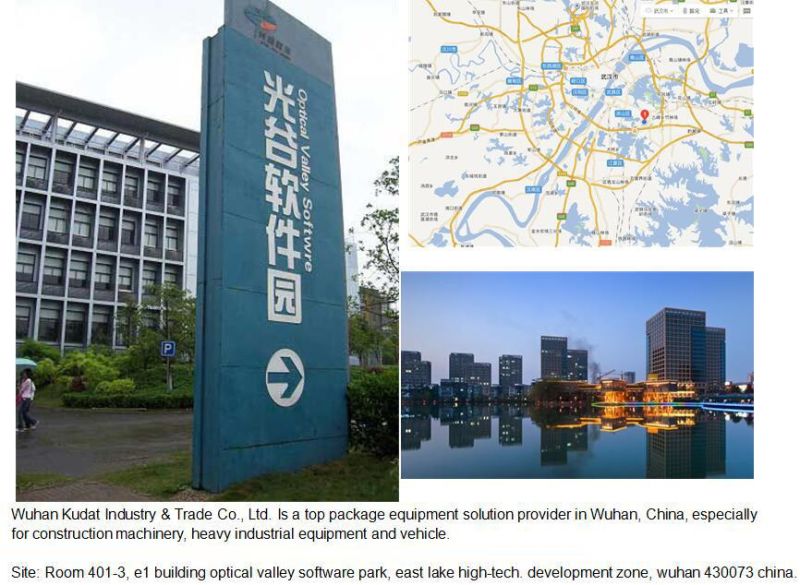

Company Overview
Certificate
After-sales ServiceWarranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.
Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.
Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.
Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
Company Overview
Certificate
