Trenchless Horizontal Directional Drilling
Wuhan Kudat Industry & Trade Co., Ltd.- Type：Drill
- Pressure Pile Driver Type：Hydraulic Pile Driver
- Pile Hammer Type：Hydraulic Hammer
- Power Source：Diesel
- Motor Power：145kw
- Noise：With Noise
Base Info
- Model NO.：KDP-35
- Certification：ISO 9001:2000
- Condition：New
- Pulling/Thrust Force：35t
- Max Push Capacity：350kn
- Max Pull Capacity：350kn
- Rated Torque：13000 N. M
- Lower Rated Speed：0-50r,Min
- Higher Rated Speed：0-100r,Min
- Drilling Angle：10-20 Degree
- Length of Pull Backward：500 M
- Diameter of Guide Hole：130 mm
- Dimensions：5820*2250*2400 mm
- Transport Package：Naked Packing
- Specification：Pulling ,thrust force: 32 T
- Trademark：KUDAT
- Origin：China
- HS Code：8430412900
- Production Capacity：2000PCS,Year
Description
Basic Info.
Model NO. KDP-35 Certification ISO 9001:2000 Condition New Pulling/Thrust Force 35t Max Push Capacity 350kn Max Pull Capacity 350kn Rated Torque 13000 N. M Lower Rated Speed 0-50r/Min Higher Rated Speed 0-100r/Min Drilling Angle 10-20 Degree Length of Pull Backward 500 M Diameter of Guide Hole 130 mm Dimensions 5820*2250*2400 mm Transport Package Naked Packing Specification Pulling /thrust force: 32 T Trademark KUDAT Origin China HS Code 8430412900 Production Capacity 2000PCS/YearProduct Description

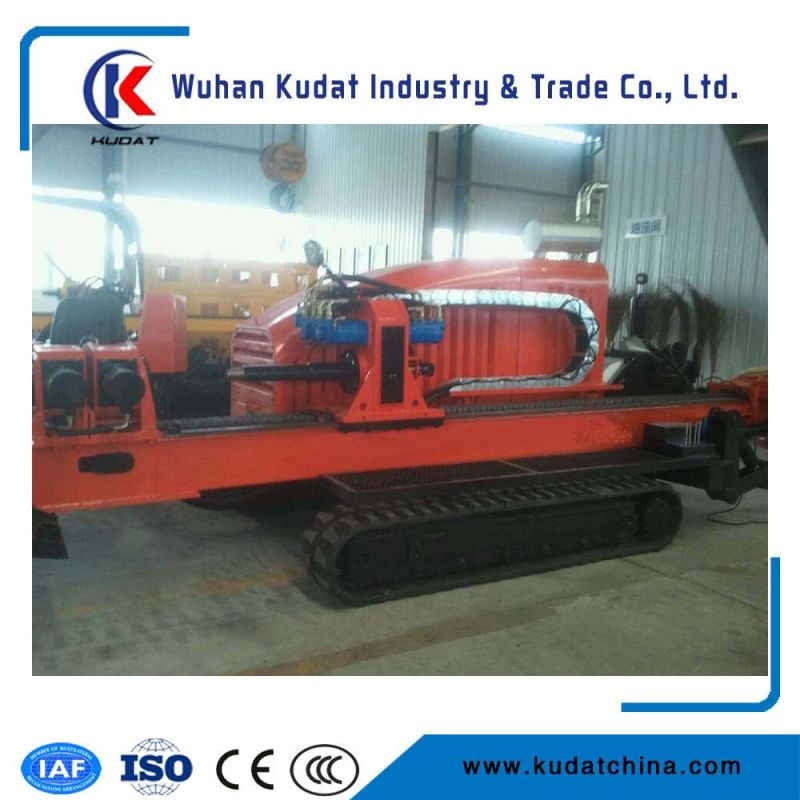

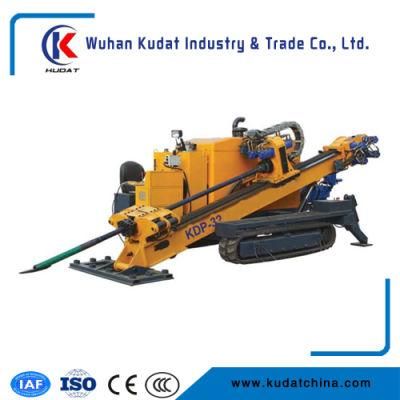

Main specification for KDP-35HDD machine32ton pullback/thrust force horizontal directional drilling machine
Max push capacity 350KN
Max pull capacity 350KN
Rated torque 13000 N. M
Rated speed Lower 0-50r/min
High 0-100r/min
Feed travel 3300 mm
Drilling angle 10-20 degree
Length of pull backward 500 m
Diameter of guide hole 130 mm
Max diameter of reaming 1000 mm
Pressure of hydraulic system 20MPa
Power of drill (diesel engine) 145kw
Weight 8400 kg
Dimensions (L× W× H) 5820× 2250× 2400 mm
Move mode Moves with track
Mud pump Model BW-250
Mud pump Flux 250 L/min
Drill pipe Φ 73mm× 3000mm
| KD-20 | KD-35 | KD-38 | |
| Engine Brand | DEUTZ | DEUTZ | CUMMINS |
| Engine power | 106kW | 130kW | 179kW |
| Max. spindle Torque | 7000N*m | 13000N*m | 16000N*m |
| Max. pullback force | 231kN | 350kN | 380kN |
| Max. thrust force | 140kN | 220kN | 273kN |
| Spindle speed | 0-110rpm | 0-100rpm | 0-100rpm |
| Entry drill angle | 10-21 0 | 10-21 0 | 10-21 0 |
| Mud pump flow rate | 250L/min | 250L/min | 320L/min |
| Mud pump pressure | 8Mpa | 8Mpa | 8Mpa |
| Drill rod (dia. x length) | 60x3000mm | 73x3000mm | 73x3000mm |
| Overall dimension | 5500x2150x2300mm | 5800x2150x2450mm | 6200x2250x2400mm |
| Operation weight | 8000kg | 9300kg | 11500kg |
