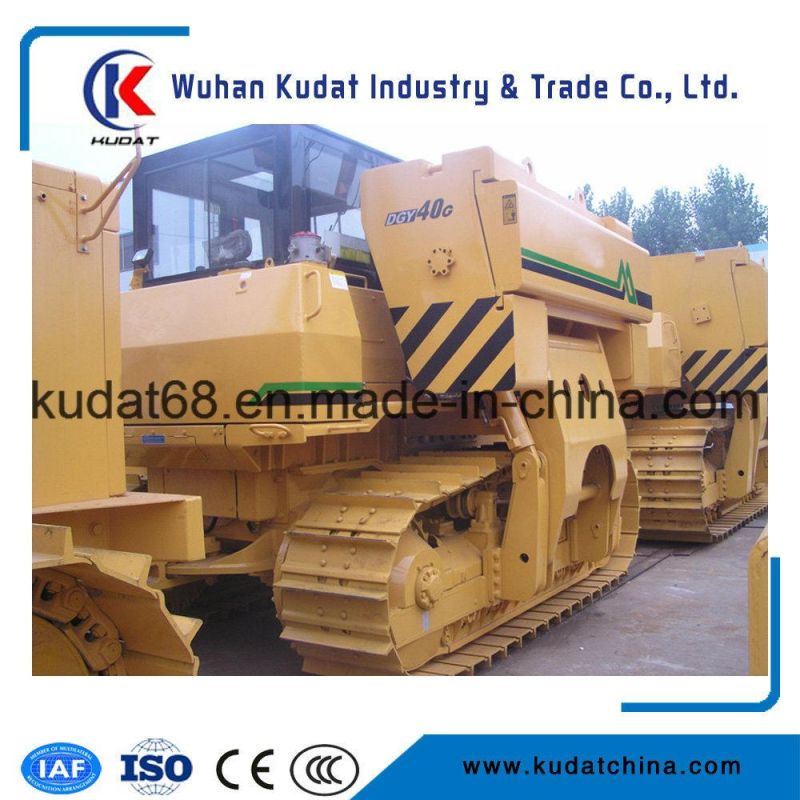

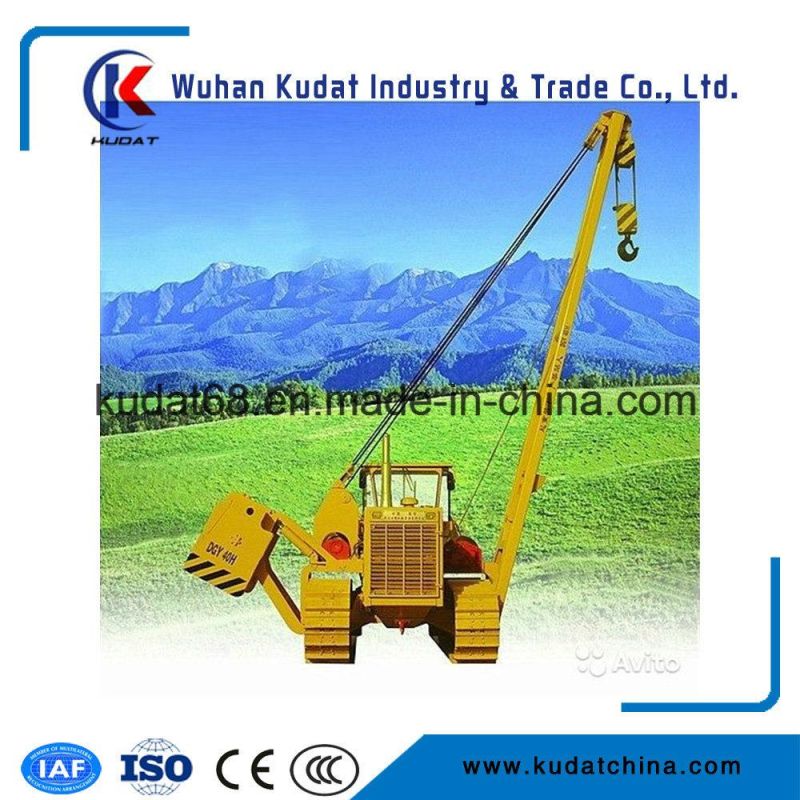

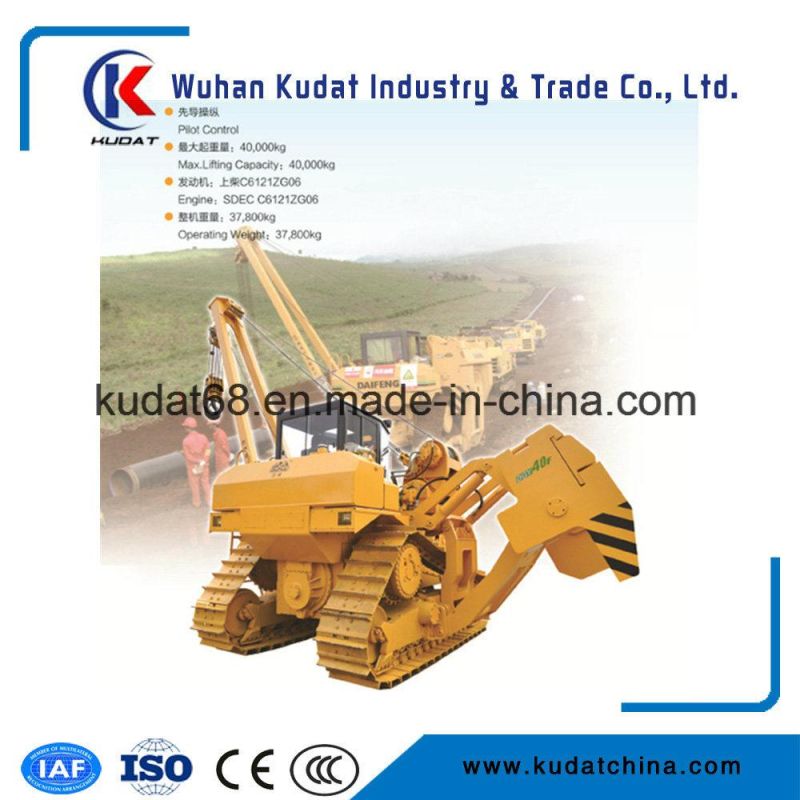

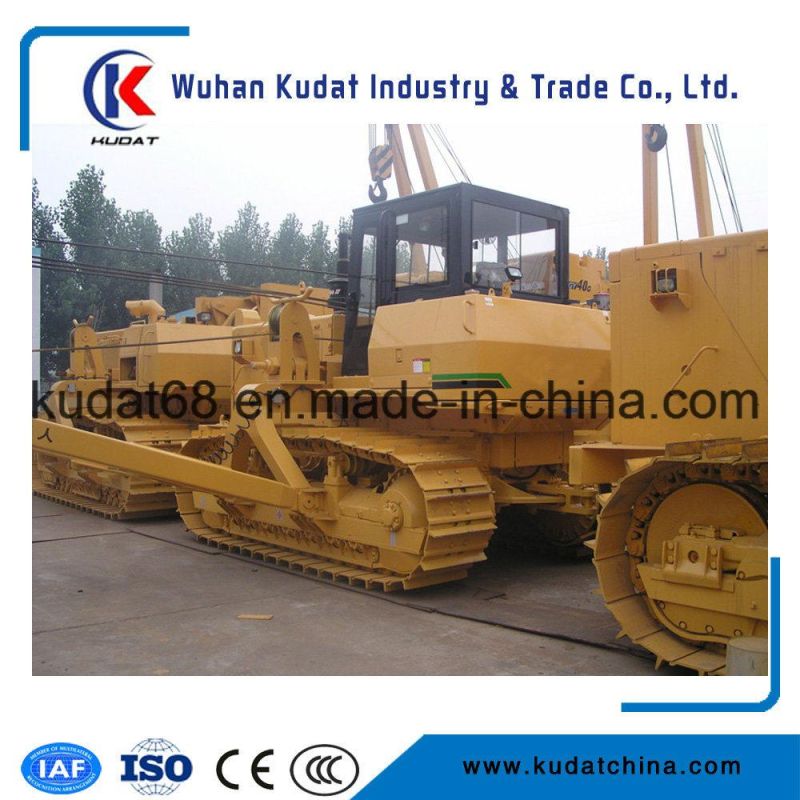

• Model NO.：DGY40F
• Chassis Model：SD7LGP
• Engine Power Kw/Rpm：173,2100
• Ground Pressure：0.088 MPa
• Max. Grade Ability：18%

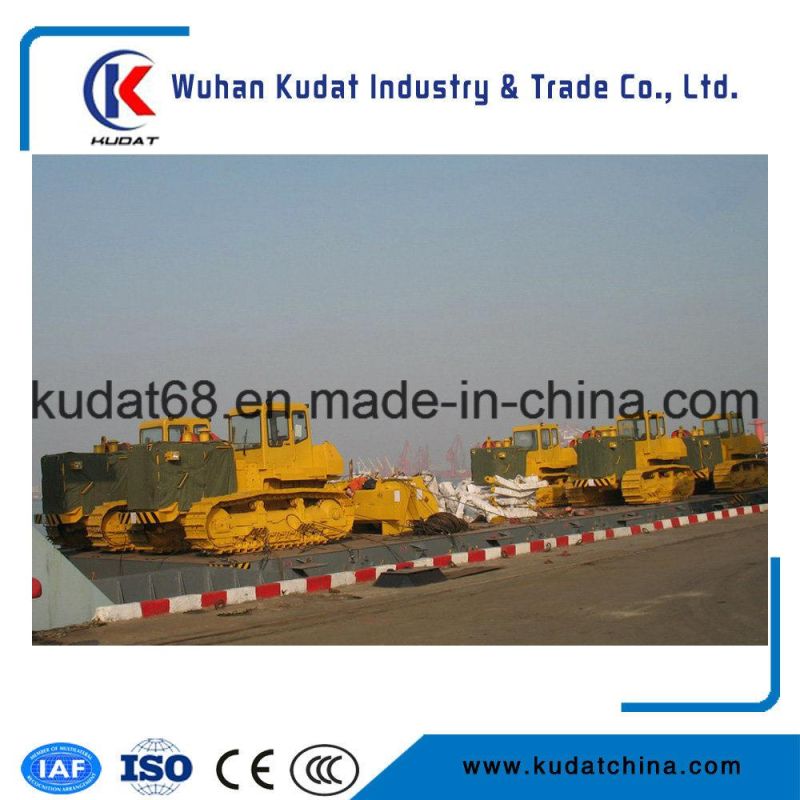

• Transport Package：in Nude Package
• Specification：CE
• Trademark：Kudat
• Origin：China
• HS Code：84269900
• Production Capacity：1000PCS,Year

Max. lifting capacity of boomTon40Max. lifting moment at min. range of the boom (392kN * 1.22M)kN.m478Max. lifting moment at max. range of the boom (73.5kN * 5.50M)kN.m404Boom lengthm7.5Max. lifting height of the boomm5.7Hoisting speed (6times)m/min7Time of change ranges35Chassis model SD7LGPEngine model SDEC C6121ZG06Engine powerkW/rpm173/2100Track gaugemm2235Track length on groundmm3185Track shoe widthmm660Hydraulic pump model CBY4140/2020Hydraulic pump pressureMpa20Lifting winchHydraulic driven, planetary transmission, free-fall functionRated pulling force of single rope (3rd layer)N72,000Wire rope diametermm20Ranging winchHydraulic driven, planetary transmissionRated pulling force of single rope (2nd layer)N55,000Max. grade abilityo18Operation temperature (std.)oC-40 ~ +60Overall dimension
(LxWxH)with boommm4910*4760*8200without boommm4910*3320*3100Ground pressurewithout loadMpa0.088Operation weightkg37,800
