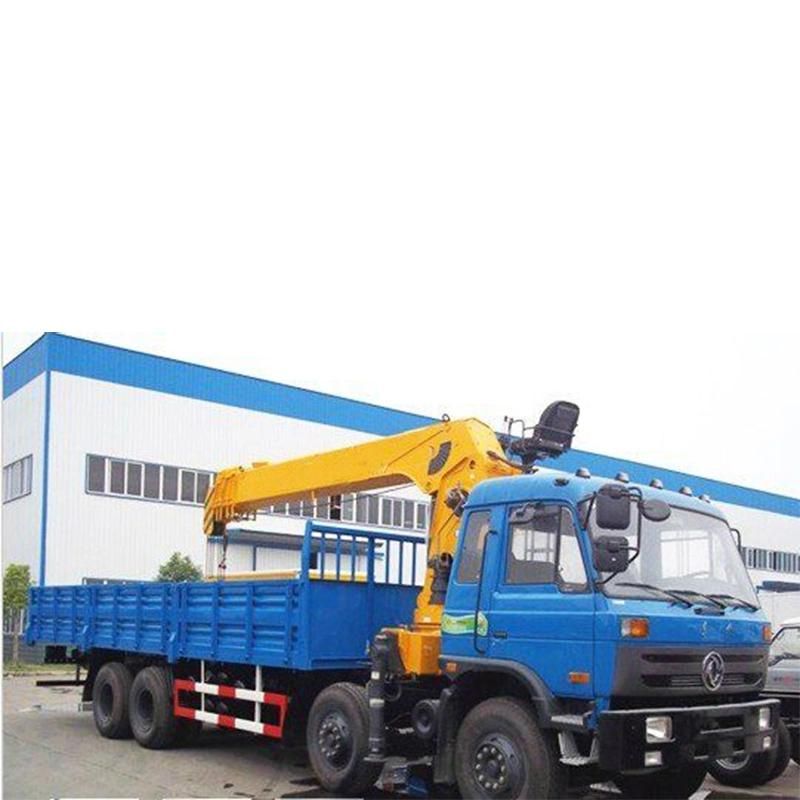

China 16 Ton Mobile Truck Crane for Sale
Jining Yuansheng Electromechanical Co., Ltd.- Type:Truck Crane
- Application:Construction
- Certification:CE
- Condition:New
- Transport Package:Iron Package
- Specification:6455kgs
Base Info
- Model NO.:SQ16SK
- Trademark:YS
- Origin:China
- Production Capacity:1000 PCS
Description
Basic Info.
Model NO. SQ16SK Trademark YS Origin China Production Capacity 1000 PCSProduct Description
SQ16SK type heavy cantilever crane is a kind of crane which adopts single cylinder cable synchronous telescopic technology and can be used in automobile chassis. The crane can reach 16 tons of lifting tonnage under the condition of 3.3 meters. It is composed of one main boom and four telescopic booms. The maximum working radius can reach 18.5 meters and the maximum lifting height can reach 20.85 meters. SQ16SK heavy cantilever crane is a intermittently operated machine, which goes through a series of processes of loading, transporting, discharging and returning to its original place when handling materials. Wire rope is one of the important parts of truck crane, it has the advantages of high strength, light weight, smooth operation, good elasticity, rarely abrupt fracture, etc., so it is widely used in lifting mechanism, luffing mechanism, also used in traction and slewing mechanism. With the development of China's economy, the market of SQ16SK heavy-duty cantilever crane has gradually matured and will develop at a faster speed.
Item | Unit | Data |
Max lifting Capacity | KG | 16000 |
Max lifting Moment | T.M | 43.2 |
Recommend Power | KW | 41 |
Oil Flow of Hydraulic System | L/min | 80 |
Pressure of Hydraulic System | MPa | 28 |
Oil Tank Capacity | L | 260 |
Crane Weight | KG | 6455 |
Installation Space | mm | 1400 |
Rotation Angle | ° | 360 |
Working Radius(m) | Length of Arm/Max lifting load 5.9m | Length of Arm/Max lifting load 8.8m | Length of Arm/Max lifting load 11.8m | Length of Arm/Max lifting load 14.8m | Length of Arm/Max lifting load 18.8m |
2.50 | 16000 | 7000 | 6500 | ||
3.00 | 14000 | 6600 | 6200 | ||
3.50 | 12000 | 6300 | 5590 | 4000 | |
4.00 | 11310 | 6000 | 5290 | 3920 | |
4.50 | 10050 | 5940 | 5260 | 3840 | 3000 |
5.00 | 8560 | 5860 | 5230 | 3770 | 2940 |
5.50 | 7000 | 5700 | 5200 | 3710 | 2880 |
6.00 | 5330 | 5140 | 3640 | 2820 | |
6.50 | 5000 | 5090 | 3580 | 2760 | |
7.00 | 4760 | 5030 | 3500 | 2710 | |
7.50 | 4540 | 4850 | 3310 | 2660 | |
8.00 | 4400 | 4510 | 3120 | 2610 | |
8.50 | 4200 | 4160 | 2970 | 2580 | |
9.00 | 3870 | 2780 | 2500 | ||
9.50 | 3610 | 2670 | 2470 | ||
10.00 | 3400 | 2610 | 2430 | ||
10.50 | 3340 | 2560 | 2400 | ||
11.00 | 3270 | 2500 | 2360 | ||
11.50 | 3200 | 2460 | 2320 | ||
12.00 | 2430 | 2240 | |||
12.5 | 2400 | 2110 | |||
13.00 | 2350 | 1980 | |||
13.50 | 2300 | 1860 | |||
14.00 | 2250 | 1700 | |||
14.50 | 2200 | 1600 | |||
15.00 | 1500 | ||||
15.50 | 1400 | ||||
16.00 | 1300 |
