• Model NO.：SQ10SK
• Trademark：YS
• Origin：China
• Production Capacity：1000 PCS

Basic Info.

Model NO. SQ10SK Trademark YS Origin China Production Capacity 1000 PCS

Product Description

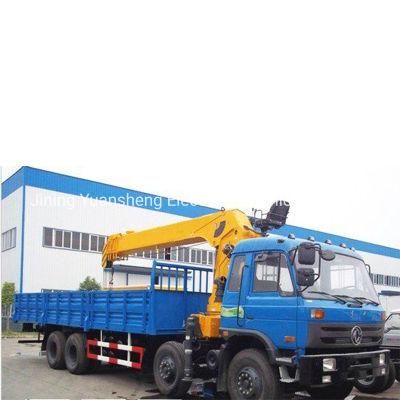

SQ10SK cantilever crane adopts planetary reducer to reduce speed and make the rotation more stable, with full rotation Angle of 360 degrees and no dead point of rotation. The front leg of the crane adopts elongated span to increase stability, with a full extension span of 5.74m. The standard configuration is fixed rear leg, conforming to normal working conditions. Optional hydraulic rear leg, increase the stability of the vehicle, suitable for more complex and harsh working conditions. SQ10SK cantilever crane adopts hexagon section, and its lateral stability and boom stiffness are greatly improved compared with the traditional quadrilateral. Standard height limit switch and over - winch alarm device, solid protective working device. High-power LED working light is optional, which can be used for insufficient light or night working lighting. Optional torque limiter to provide customers with a safer and more reliable working environment. SQ10SK cantilever crane is equipped with high seat, which is more comfortable and convenient for operation, and provides operators with a wider operating horizon.

Item	Unit	Data
Max lifting Capacity	KG	10000
Max lifting Moment	T.M	25
Recommend Power	KW	30
Oil Flow of Hydraulic System	L/min	63
Pressure of Hydraulic System	MPa	26
Oil Tank Capacity	L	160
Crane Weight	KG	3765
Installation Space	mm	1150
Rotation Angle	°	360



Working Radius(m)	Length of Arm/Max lifting load 4.85m	Length of Arm/Max lifting load 7.35m	Length of Arm/Max lifting load 9.35m	Length of Arm/Max lifting load 12.35m
2.50	10000	6960	5990
3.00	7940	6020	5420	5280
3.50	6980	5330	5150	4540
4.00	6140	5140	4880	3930
4.50	5500	4860	4550	3680
5.00		4310	4100	3420
5.50		3880	3600	3170
6.00		3600	3350	2930
6.50		3400	3130	2730
7.00		3200	2920	2530
7.50			2710	2340
8.00			2530	2190
8.50			2400	2060
9.00			2300	1930
9.50				1840
10.00				1760
10.50				1680
11.00				1630
11.50				1560
12.00				1500



Item	Unit	Data
Max lifting Capacity	KG	10000
Max lifting Moment	T.M	25
Recommend Power	KW	30
Oil Flow of Hydraulic System	L/min	63
Pressure of Hydraulic System	MPa	26
Oil Tank Capacity	L	160
Crane Weight	KG	3955
Installation Space	mm	1150
Rotation Angle	°	360



Working Radius(m)	Length of Arm/Max lifting load 5.3m	Length of Arm/Max lifting load 8.3m	Length of Arm/Max lifting load 11.3m	Length of Arm/Max lifting load 12.35m
2.50	10000	6500	5200
3.00	8300	6500	5200	4000
3.50	7150	5900	5150	4000
4.00	6250	5200	4520	3950
4.50	5000	4600	4000	3500
5.00		4150	3600	3200
5.50		3770	3250	2900
6.00		3500	3000	2700
6.50		3200	2750	2500
7.00		3000	2550	2350
7.50		2700	2400	2200
8.00		2500	2250	2100
8.50			2120	1950
9.00			2000	1850
9.50			1900	1750
10.00			1800	1740
10.50			1720	1630
11.00			1600	1550
11.50				1450
12.00				1400
12.50				1350
13.00				1300
13.50				1300
