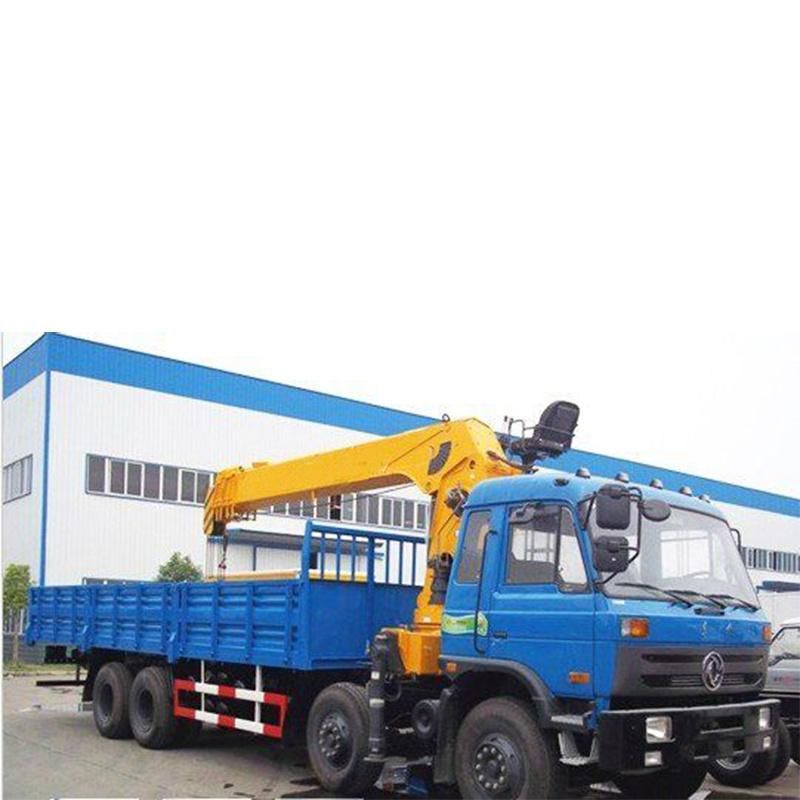

China 12 Ton Mobile Truck Crane for Sale
Jining Yuansheng Electromechanical Co., Ltd.- Type：Truck Crane
- Application：Construction
- Certification：CE
- Condition：New
- Transport Package：Iron Package
- Specification：4316kgs
Base Info
- Model NO.：SQ12SK
- Trademark：YS
- Origin：China
- Production Capacity：1000 PCS
Description
Basic Info.
Model NO. SQ12SK Trademark YS Origin China Production Capacity 1000 PCSProduct Description
SQ12SK truck mounted crane with the help of constantly developing new scientific and technological means, a variety of cranes can meet the needs of different occasions, with the least economic investment to achieve the maximum use value. Our company in digestion and absorption of foreign advanced technology on the basis of production of SQ series telescopic boom type, folding wall type truck crane, products from the market by the majority of consumers recognized. SQ12SK truck-mounted crane is a new type of highly efficient lifting and transportation equipment, which is recognized and accepted by more and more users for its advantages of fast, flexible, efficient, convenient and combination of loading, unloading and transportation.
| Item | Unit | Data |
| Max lifting Capacity | KG | 12000 |
| Max lifting Moment | T.M | 30 |
| Recommend Power | KW | 30 |
| Oil Flow of Hydraulic System | L/min | 63 |
| Pressure of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 160 |
| Crane Weight | KG | 4316 |
| Installation Space | mm | 1300 |
| Rotation Angle | ° | 360 |
| Working Radius(m) | Length of Arm/Max lifting load 5.15m | Length of Arm/Max lifting load 7.35m | Length of Arm/Max lifting load 9.35m | Length of Arm/Max lifting load 12.85m |
| 2.50 | 12000 | 8180 | 7500 | |
| 3.00 | 9700 | 7710 | 7310 | 6000 |
| 3.50 | 8000 | 7170 | 6670 | 5200 |
| 4.00 | 7000 | 6500 | 6020 | 4500 |
| 4.50 | 6000 | 5860 | 5420 | 4300 |
| 5.00 | 5310 | 4890 | 4100 | |
| 5.50 | 4820 | 4370 | 3900 | |
| 6.00 | 4400 | 3990 | 3700 | |
| 6.50 | 4000 | 3690 | 3500 | |
| 7.00 | 3500 | 3420 | 3250 | |
| 7.50 | 3210 | 3020 | ||
| 8.00 | 2990 | 2800 | ||
| 8.50 | 2800 | 2630 | ||
| 9.00 | 2700 | 2470 | ||
| 9.50 | 2300 | |||
| 10.00 | 2180 | |||
| 10.50 | 2060 | |||
| 11.00 | 1980 | |||
| 11.50 | 1920 | |||
| 12.00 | 1850 | |||
| 12.5 | 1800 |
| Item | Unit | Data |
| Max lifting Capacity | KG | 12000 |
| Max lifting Moment | T.M | 30 |
| Recommend Power | KW | 30 |
| Oil Flow of Hydraulic System | L/min | 100 |
| Pressure of Hydraulic System | MPa | 26 |
| Oil Tank Capacity | L | 260 |
| Crane Weight | KG | 4460 |
| Installation Space | mm | 1300 |
| Rotation Angle | ° | 360 |
| Working Radius(m) | Length of Arm/Max lifting load 5.60m | Length of Arm/Max lifting load 8.55m | Length of Arm/Max lifting load 11.50m | Length of Arm/Max lifting load 14.50m |
| 2.50 | 12000 | 7000 | 5500 | |
| 3.00 | 10000 | 7000 | 5500 | |
| 3.50 | 8500 | 7000 | 5500 | 4000 |
| 4.00 | 7500 | 6250 | 5500 | 4000 |
| 4.50 | 6600 | 5500 | 5000 | 4000 |
| 5.00 | 6000 | 5000 | 4500 | 3890 |
| 5.50 | 4500 | 4000 | 3500 | |
| 6.00 | 4150 | 3750 | 3300 | |
| 6.50 | 3800 | 3450 | 3000 | |
| 7.00 | 3500 | 3200 | 2850 | |
| 7.50 | 3300 | 3000 | 2675 | |
| 8.00 | 2600 | 2800 | 2500 | |
| 8.50 | 2650 | 2350 | ||
| 9.00 | 2500 | 2250 | ||
| 9.50 | 2350 | 2140 | ||
| 10.00 | 2250 | 2050 | ||
| 10.50 | 2140 | 1950 | ||
| 11.00 | 1900 | 1860 | ||
| 11.50 | 1780 | |||
| 12.00 | 1710 | |||
| 12.5 | 1650 | |||
| 13.00 | 1580 | |||
| 13.50 | 1500 | |||
| 14.00 | 1500 |
