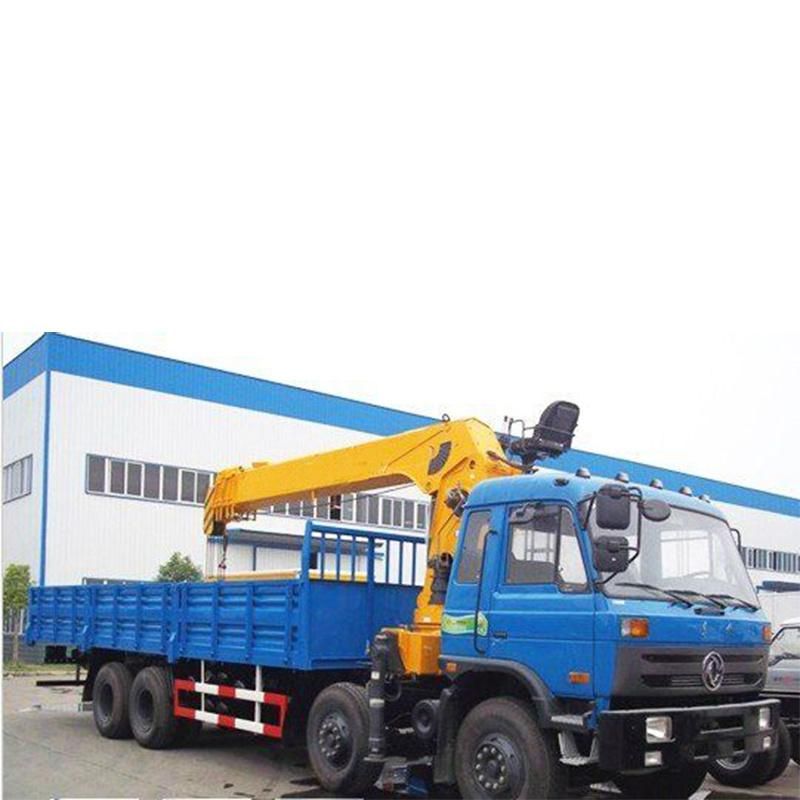

China 3 Ton Truck Mobile Crane for Sale
Jining Yuansheng Electromechanical Co., Ltd.- Type:Truck Crane
- Application:Construction
- Certification:CE
- Condition:New
- Transport Package:Iron Package
- Specification:1105kgs
Base Info
- Model NO.:SQ3.2SK
- Trademark:YS
- Origin:China
- Production Capacity:1000 PCS
Description
Basic Info.
Model NO. SQ3.2SK Trademark YS Origin China Production Capacity 1000 PCSProduct Description
SQ3.2SK crane equipment is generally used to lift large items, now the market is more and more widely used with the truck crane, this type of crane moving with the vehicle, lifting items is very convenient, the following is what characteristics with the crane.
1. Single cylinder cable synchronous telescopic technology, higher working efficiency, pentagonal and hexagonal boom technology, good to the neutral, strong section bending ability.
2. Hoist is safe and stable with high working efficiency, long life of hydraulic system, strong lifting capacity, compact design and small space occupancy.
3. The unique floating three-point bridge structure design can effectively reduce the additional stress borne by the chassis girder when the vehicle is running. The independently developed rotary mechanism has a strong driving force, which can meet the needs of more working conditions.
SQ3.2SK crane equipment overcomes the damage caused to pavement by crawler crane (crawler crane) crawler plate, making it more convenient to use.
Item | Unit | Data |
Max lifting Capacity | KG | 3200 |
Max lifting Moment | T.M | 6.8 |
Recommend Power | KW | 14 |
Oil Flow of Hydraulic System | L/min | 25 |
Pressure of Hydraulic System | MPa | 20 |
Oil Tank Capacity | L | 30 |
Crane Weight | KG | 1105 |
Installation Space | mm | 850 |
Rotation Angle | ° | 360 |
Working Radius(m) | Length of Arm/Max lifting load 3.3m | Length of Arm/Max lifting load 5.5m |
2.10 | 3200 | 2000 |
2.50 | 2300 | 2300 |
3.00 | 1350 | 1850 |
3.50 | 1650 | |
4.00 | 1420 | |
4.50 | 1250 | |
5.00 | 990 |
