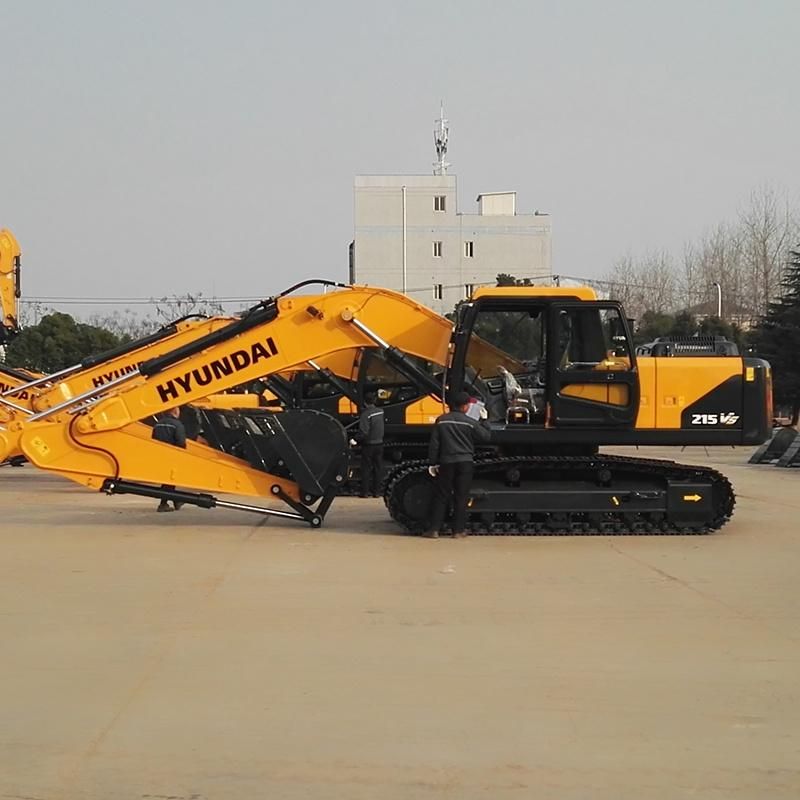

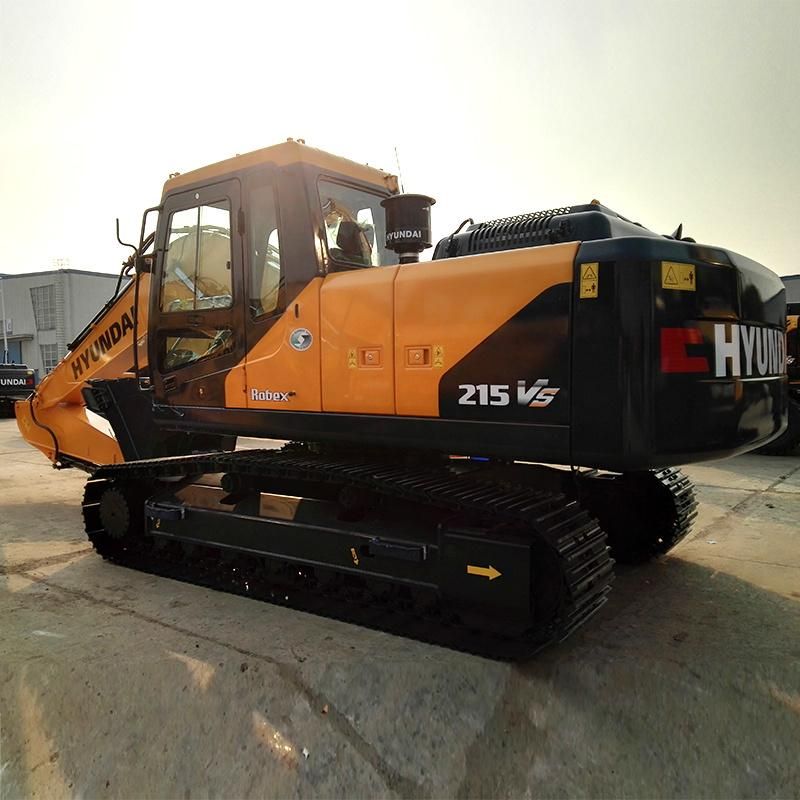

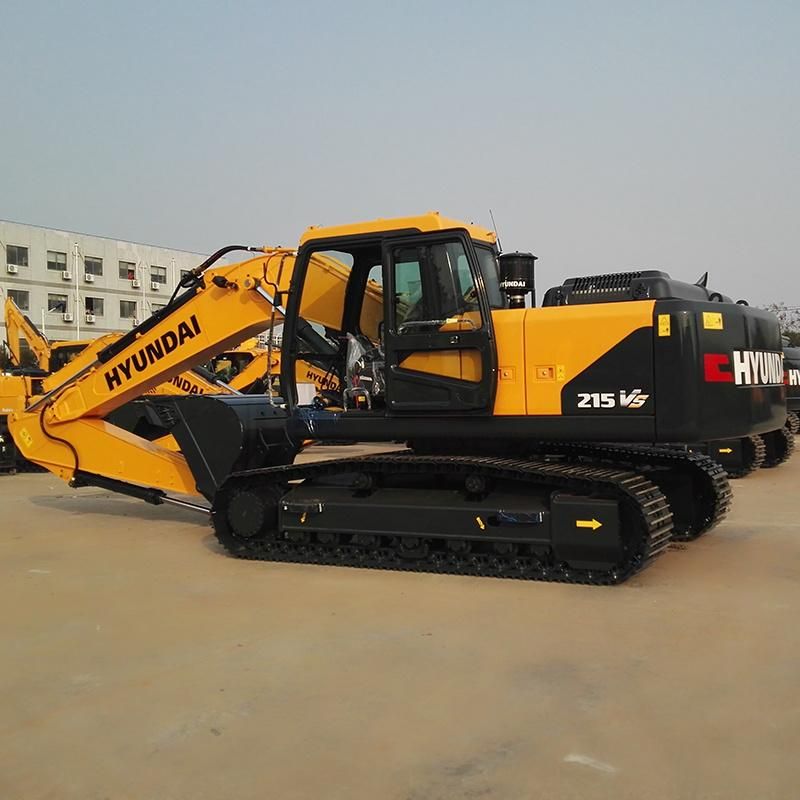

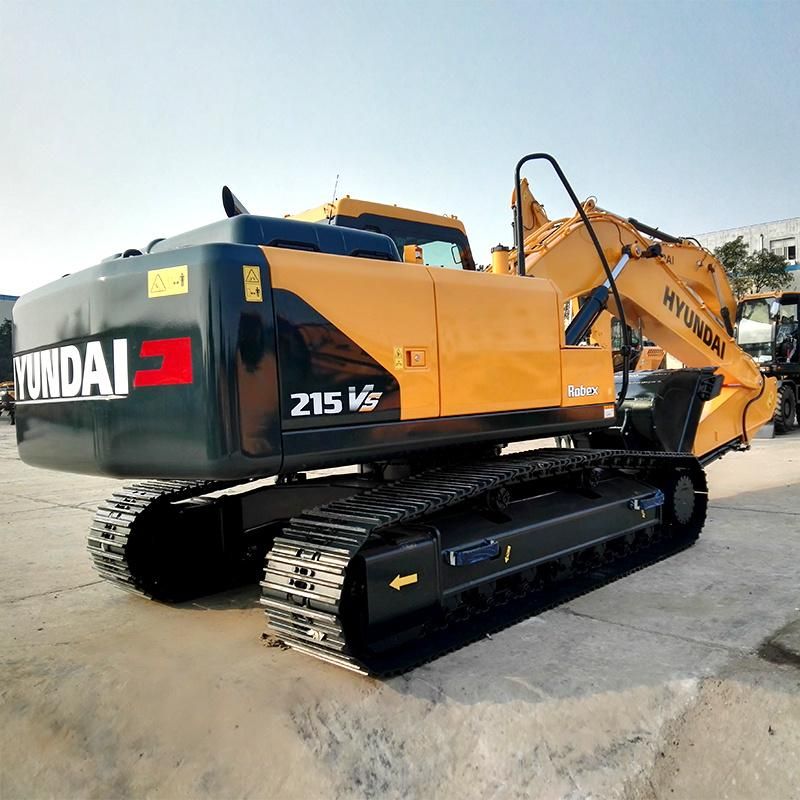

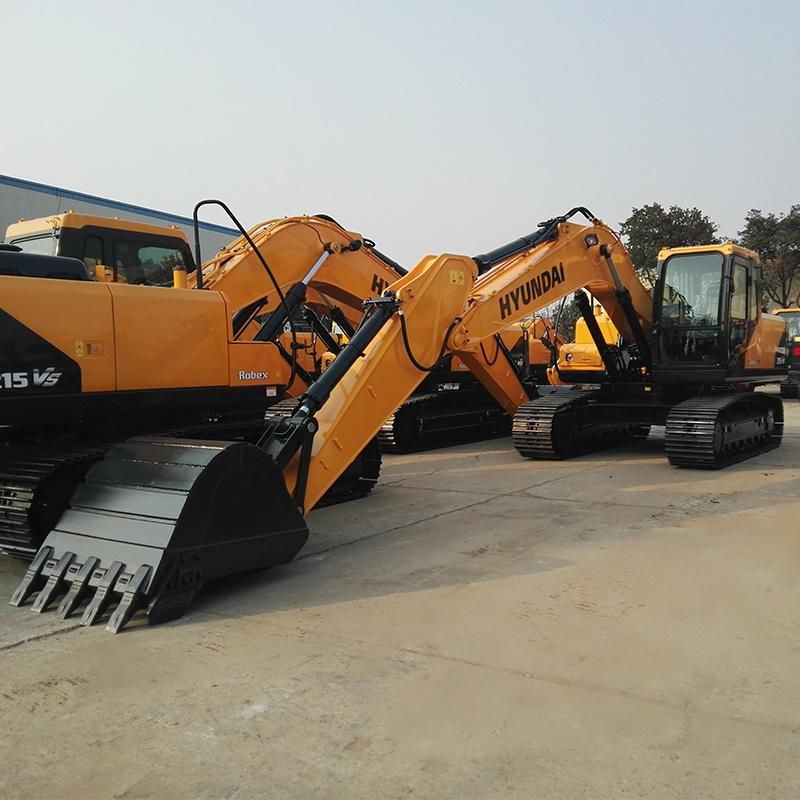

Earth Moving Equipment Hyundai 21 Ton Crawler Excavator (R215vs)
Sinomada Heavy Industry (Changsha) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.5~1.0m³
Base Info
- Model NO.：R215VS
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Rated Power：125kw
- Maximum Digging Height：9730mm
- Maximum Digging Depth：6800mm
- Transport Package：Container
- Specification：20900kg
- Trademark：HYUNDAI
- Origin：China
- HS Code：8429521200
- Production Capacity：100units,Month
Description
Overview
Product Description Modelunit R215VS Operating weight kg 20700 bucket capacity m³ 0.92 Engine Engine Model hyun_dai D6BT-C Rated power/speed kW/rpm 110/1950 Max. torque/speed kgf/rmp 62.6/1500 hydraulic system working pressure kgf/cm³ 300 Rate flow of main pump L/min 2×220 Working Performance Swing speed rmp 12.5 Travel speed km/h 5.2/3.5 Max.Bucket digging force kgf 13500 Max.arm crowd force kgf 9700 Max. gradeability 35° Max.traction force kgf 19500 running gear A length of track mm 4160 B ground contact length of track mm 3360 C track gauge mm 2200 D Track width mm 600 Ground pressure kgf/cm³ 0.48 E min ground clearance mm 480 Oil tank capacity fuel tank L 320 hydraulic oil tank L 165 Dimension F Overall length mm 9510 G Overall width mm 2800 H Overall height mm 2990 I Clearance under counter weight mm 1060 J Length of tail portion mm 2770 K The width of the upper mm 2700 L Overall height of cab mm 2920 J' tail swing radius mm 2830 Working ranges A Max excavating distance mm 9930 A'Max ground excavating distance mm 9760 B Max. digging depth mm 6800 B'Max.ground digging depth mm 6610 C Max. vertical wall digging depth mm 6060 D Max. digging height mm 9730 E Max. dumping height mm 6910 F Min. swing radius mm 3440
