• Model NO.：SQ5SK
• Trademark：YS
• Origin：China
• Production Capacity：1000 PCS

Basic Info.

Model NO. SQ5SK Trademark YS Origin China Production Capacity 1000 PCS

Product Description

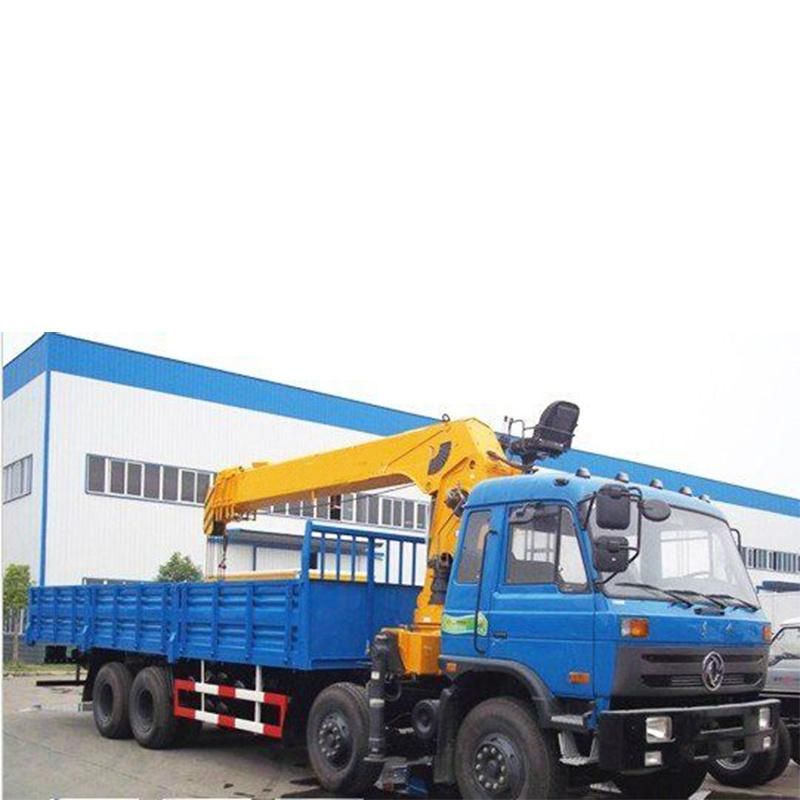

SQ5SK crane, which combines lifting and transportation, not only saves labor, but also greatly reduces working intensity and improves working efficiency. SQ5SK crane has the characteristics of compact structure and easy operation, which can be widely used in transportation, port, warehouse and all small and medium-sized industrial cargo loading and unloading and long-distance transportation. The lifting mechanism includes hydraulic motor, reduction gear, ratchet stop and reel. The reducer is used to reduce the driving speed of the hydraulic motor, and the reel is used to wind in or out the wire rope. When the mechanism is working, the hydraulic motor drives the reducer, and the low-speed shaft of the reducer drives the reel, which rolls the wire rope up or out, and makes the load rise or fall through the pulley block system. The rise and fall of SQ5SK crane is determined by the rotation direction of the motor, and the brake is realized by the ratchet stop.


Item	Unit	Data
Max lifting Capacity	KG	5000
Max lifting Moment	T.M	12.5
Recommend Power	KW	18
Oil Flow of Hydraulic System	L/min	32
Pressure of Hydraulic System	MPa	20
Oil Tank Capacity	L	90
Crane Weight	KG	2120
Installation Space	mm	900
Rotation Angle	°	360



Working Radius(m)	Length of Arm/Max lifting load 3.8m	Length of Arm/Max lifting load 6.25m	Length of Arm/Max lifting load 8.7m
2.50	5000	3000	1800
3.00	3420	2910	1800
3.50	2940	2720	1800
4.00		2470	1760
4.50		2120	1700
5.00		1780	1610
5.50		1650	1520
6.00		1500	1460
6.50			1280
7.00			1240
7.50			1180
8.00			1100
8.50			1050

1050
