China 6 Ton Mobile Truck Crane for Sale
Jining Yuansheng Electromechanical Co., Ltd.- Type：Truck Crane
- Application：Construction
- Certification：CE
- Condition：New
- Transport Package：Iron Package
- Specification：2160kgs
Base Info
- Model NO.：SQ6.3SK
- Trademark：YS
- Origin：China
- Production Capacity：1000 PCS
Description
Basic Info.
Model NO. SQ6.3SK Trademark YS Origin China Production Capacity 1000 PCSProduct Description

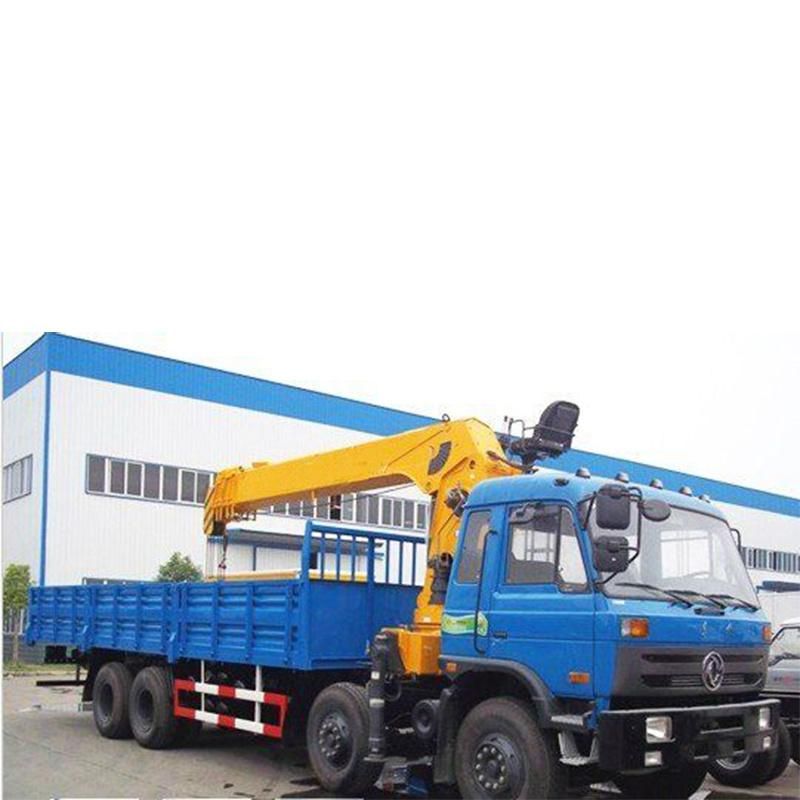

Sq6.3sk vehicle crane is a multi-action lifting machine mounted on the chassis of a vehicle to vertically lift and horizontally carry heavy objects within a certain range, also known as an onboard crane, which is a material handling machine. Sq6.3sk truck crane is a lifting equipment mounted on ordinary truck, which is mainly composed of stable leg, rotary base, boom assembly, hook, etc. The truck crane and the truck control system is completely separate, so the truck crane can not only achieve lifting operations, and does not affect the truck chassis of the cargo transport. Sq6.3sk truck crane is widely used. Because of its flexibility and other characteristics, it can replace small and medium-sized truck crane for lifting operation in many working conditions, which is well received by the majority of users.
| Item | Unit | Data |
| Max lifting Capacity | KG | 6300 |
| Max lifting Moment | T.M | 15.7 |
| Recommend Power | KW | 20 |
| Oil Flow of Hydraulic System | L/min | 40 |
| Pressure of Hydraulic System | MPa | 20 |
| Oil Tank Capacity | L | 90 |
| Crane Weight | KG | 2160 |
| Installation Space | mm | 900 |
| Rotation Angle | ° | 360 |
| Working Radius(m) | Length of Arm/Max lifting load 4.02m | Length of Arm/Max lifting load 6.37m | Length of Arm/Max lifting load 8.72m |
| 2.50 | 6300 | 3000 | 1900 |
| 3.00 | 3870 | 3000 | 1900 |
| 3.50 | 3650 | 2750 | 1900 |
| 4.00 | 2480 | 1880 | |
| 4.50 | 2180 | 1860 | |
| 5.00 | 1920 | 1840 | |
| 5.50 | 1770 | 1680 | |
| 6.00 | 1680 | 1520 | |
| 6.50 | 1400 | ||
| 7.00 | 1350 | ||
| 7.50 | 1290 | ||
| 8.00 | 1250 | ||
| 8.50 | 1200 |
| Item | Unit | Data |
| Max lifting Capacity | KG | 6300 |
| Max lifting Moment | T.M | 15.7 |
| Recommend Power | KW | 20 |
| Oil Flow of Hydraulic System | L/min | 40 |
| Pressure of Hydraulic System | MPa | 20 |
| Oil Tank Capacity | L | 90 |
| Crane Weight | KG | 2290 |
| Installation Space | mm | 900 |
| Rotation Angle | ° | 360 |
| Working Radius(m) | Length of Arm/Max lifting load 4.16m | Length of Arm/Max lifting load 6.51m | Length of Arm/Max lifting load 8.86m | Length of Arm/Max lifting load 11.2m |
| 2.50 | 6300 | 3000 | 1850 | 1500 |
| 3.00 | 4100 | 3000 | 1850 | 1500 |
| 3.50 | 3440 | 2760 | 1820 | 1420 |
| 4.00 | 2510 | 1820 | 1370 | |
| 4.50 | 2280 | 1800 | 1320 | |
| 5.00 | 2030 | 1760 | 1240 | |
| 5.50 | 1880 | 1700 | 1200 | |
| 6.00 | 1690 | 1580 | 1150 | |
| 6.50 | 1420 | 1060 | ||
| 7.00 | 1360 | 1000 | ||
| 7.50 | 1300 | 970 | ||
| 8.00 | 1260 | 930 | ||
| 8.50 | 1230 | 890 | ||
| 9.00 | 850 | |||
| 9.50 | 800 | |||
| 10.00 | 750 | |||
| 10.50 | 660 |
