• Model NO.：XD123
• Travel Speed：0-10km,H
• Centrifugal Force：40KN
• Certification：ISO 9001:2000
• Condition：New
• Operating Weight：12300kg
• Load on Front Drum：6150kg
• Load on Rear Wheels：6150kg
• Minimum Ground Clearance：340mm
• Static Linear Load：282,282n,Cm
• Vibration Frequency(Low/High)：48,45Hz
• Engine Model：Bf4m2012c
• Engine Power：98kw
• Rated Engine Speed：2300r,Min
• Transport Package：Nude Package
• Specification：5700x2420x3060mm
• Origin：China
• HS Code：84294019
• Production Capacity：10000

XD123 12 Ton Double Drum Road RollerPerformance ParameterOperating weightkg12300Load on front drumkg6150Load on rear wheelskg6150Main.Working ParameterStatic linear load(F)N/cm282Static linear load(R)N/cm282Vibration frequencyHz48/45Nominal amplitudemm0.41/0.8Min.ground clearancemm340Centrifugal forcekN85/140DrivingSpeed range  Ikm/h0-10IIkm/h-IIIkm/h-Wheel basemm3700Drum widthmm2130Theoretical gradeability%30Min.turning radiusmm4770/6900EngineModel BF4M2012CRated rotating speedr/min2300Rated powerkW98Rated oil wearg/kW·h222DimensionL*W*Hmm5700×2420×3020(3220)

Contact me: Mia Zhu

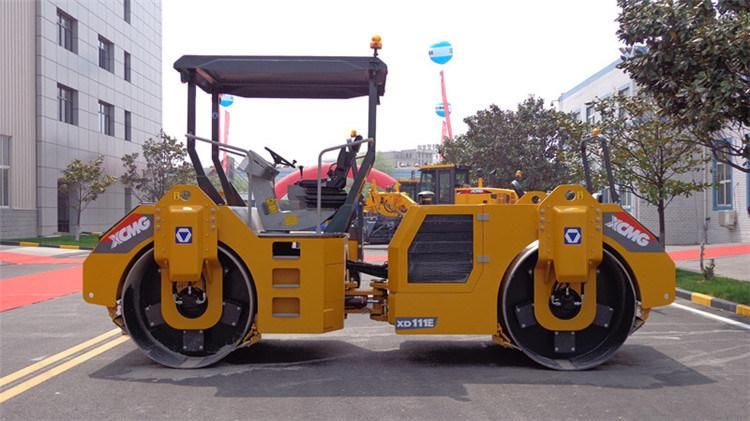

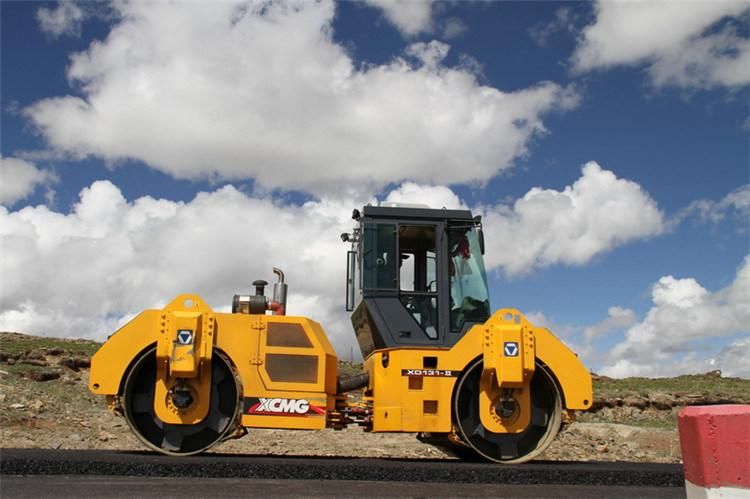

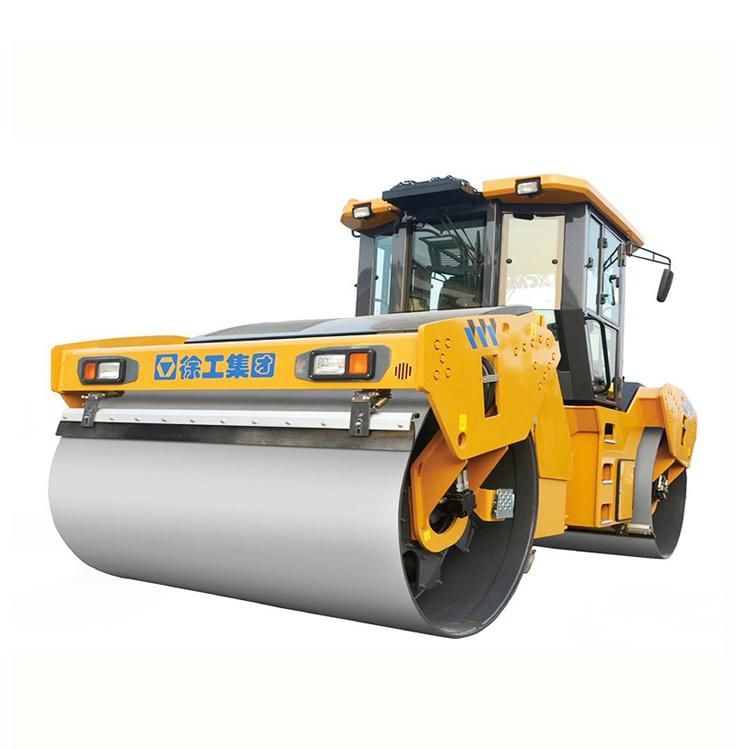

Pictures:
