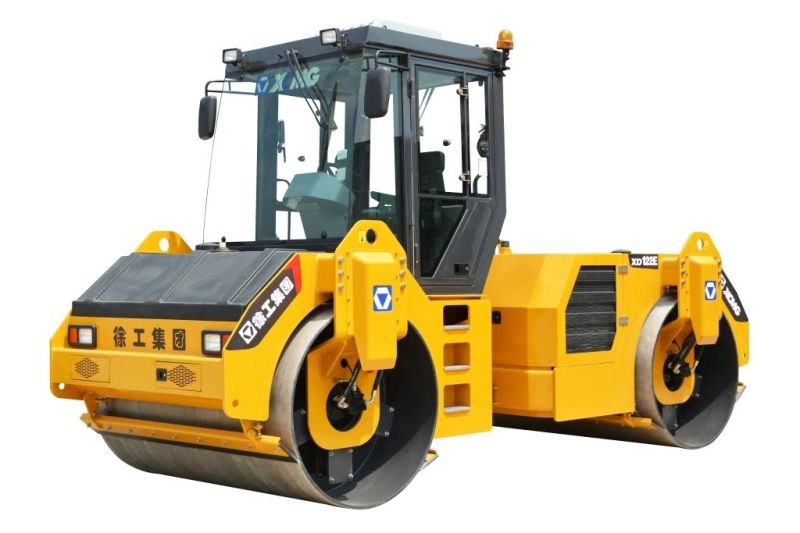

• Model NO.：XD122E
• Travel Speed：0-10km,H
• Centrifugal Force：40KN
• Certification：ISO 9001:2000
• Condition：New
• Operating Weight：12000kg
• Load on Front Drum：6000kg
• Load on Rear Wheels：6000kg
• Minimum Ground Clearance：340mm
• Static Linear Load：282,282n,Cm
• Vibration Frequency(Low/High)：45,48Hz
• Engine Model：Deutz Bf4m2012c
• Engine Power：98kw
• Rated Engine Speed：2300r,Min
• Transport Package：Nude Package
• Specification：5700x2420x3060mm
• Origin：China
• HS Code：84294019
• Production Capacity：10000

TypeUnitXD122EOperating weight (including cab)kg12000load on front drumkg6000Load on rear wheelskg6000Static linear load N/cm282/282Speedkm/h0-10Gradeability in theory%30Minimum turning radius(Inner/Outer)mm4770/6900Crab-walking distancemm160Minimum ground clearancemm340Wheel basemm3700Steering angle± °35Swing angle±°8Vibration frequencyHz45/48Nominal amplitude mm0.41/0.8Centrifugal forcekN85/140Model and manufacturer DEUTZ BF4M2012CRated rotating speedr/min2300Rated powerkW98Rated oil wearg.kw/h222Dimensions(LxWxH)mm5700x2420x3060Water tank capacityL2×450Fuel tank capacityL210
