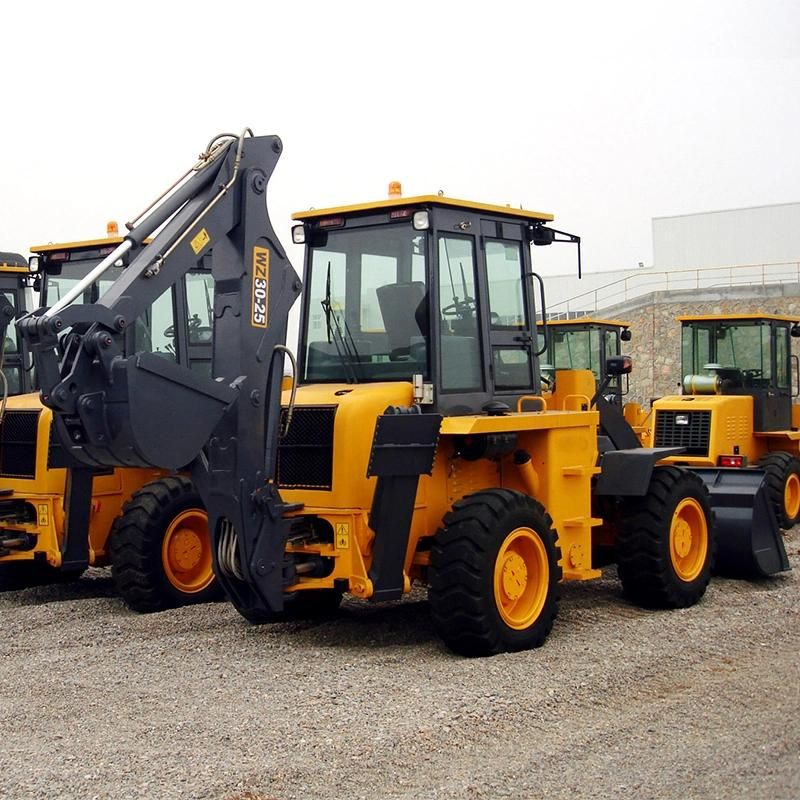

China Brand Backhoe Loader Wz30-25 Small Backhoe Excavator Loader
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Condition：New
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Rated Operating Load：9500kg
- Bucket Capacity：0.5-1m3
- Dump Clearance at Maximum Lift：2650mm
Base Info
- Model NO.：Wz30-25
- Reach at Maximum Lift：1100~1220mm
- Wheel Base：2600mmmm
- Tread：1700mmmm
- Engine：Yc4a105z-T20
- Tyre：16,70-24
- Dumping Reach：930mm
- Colour：Yellow
- Digger Capacity：0.3m3
- Transport Package：Nude Packing
- Specification：8000*2200*3350mm
- Origin：Jiangsu, China
- HS Code：842951000
- Production Capacity：1000,PCS
Description
Parameters list for WZ30-25 backhoe loaderBucket capacity(heaped) 1.0 m³ Digger capacity 0.3 m³ Dumping clearance 2650 mm Dumping reach 930 mm Max.steering angle ±35 . Max.steering angle of dig working device ±85 . Traceing speed I/II/III/IV(F/R) 0-6.2/0-12/0-20/0-33 Km/h Back I/II speed 0-8/0-28.5 Km/h Diesel Model (Yuchai) YC4B90-T20/ (Yuchai) YC4A105Z-T20(Turbo) Rated power 65/75(Turbo) kW Rated speed 2400/2200 r/min Wheel base 2600 mm Tread 1700 mm Tires 16/70-24 Max. digging depth 4400 mm Max. digging radium 5471 mm Overall dimensions 8000x2200x3350 mm Operating weight 9500 kg
