• Model NO.：4140
• Operating Weight：13500 Kg
• Engine Model：Cu-Mmins 6btaa5.9-C150
• Rated Power：112 Kw (152 HP) , 2200 Rpm
• Drawbar Pull：70 Kn
• Blade Width：3660 mm
• Turning Radius：7200 mm
• Transport Package：Nude Packing
• Specification：8400* 2470* 3350 mm
• Trademark：Liugong
• Origin：Guangxi, China
• HS Code：8429209000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 4140 Operating Weight 13500 Kg Engine Model Cu-Mmins 6btaa5.9-C150 Rated Power 112 Kw (152 HP) / 2200 Rpm Drawbar Pull 70 Kn Blade Width 3660 mm Turning Radius 7200 mm Transport Package Nude Packing Specification 8400* 2470* 3350 mm Trademark Liugong Origin Guangxi, China HS Code 8429209000 Production Capacity 5000PCS/Year

Product Description

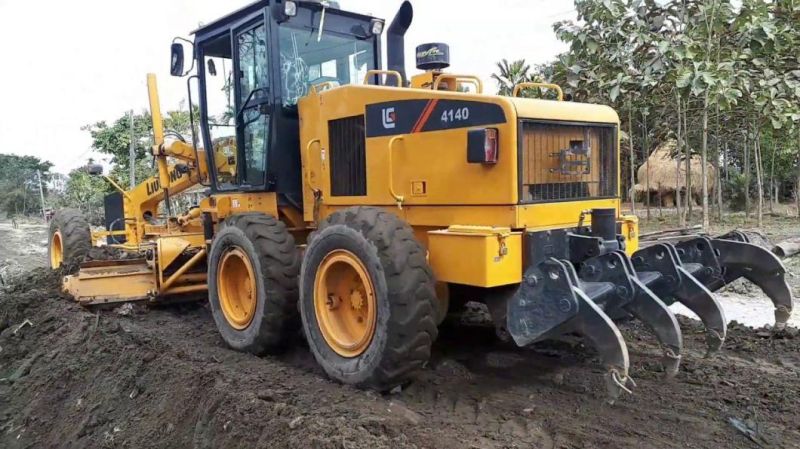

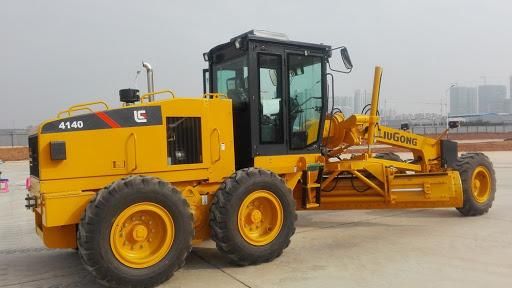

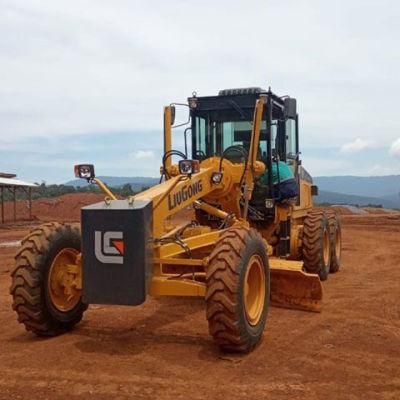

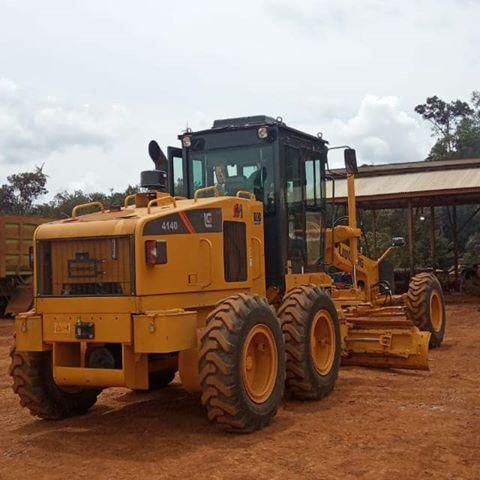

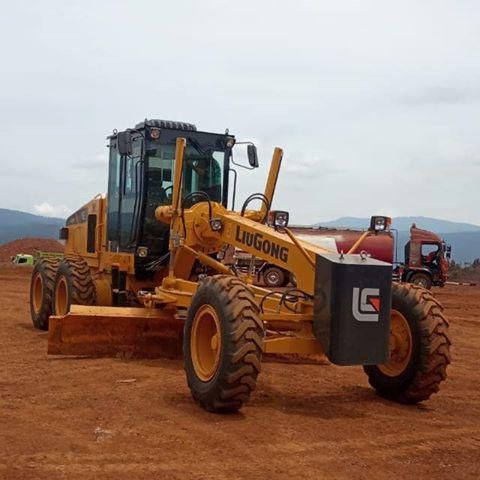

Clg 414 Road Grader 140HP Liugong 4140 Mini Motor Grader
 Product description
1. Fuel Efficient Dongfeng Cummins Engine.
2. Low Vibration, Noise, Dust +UV Resistant cab
3. Meritor wet axle with "no-spin" differential lock as standard
4. Balance box enables the 4 rear wheels to swing up and down by +/- 15°

Model	CLG4140
Operating weight	13500 kg
Engine model	Cummins 6BTAA5.9-C150
Rated power	112 kW (152 hp) / 2200 rpm
Drawbar pull	70 kN
Maximum travel speed, forward	41 km/h
Maximum travel speed, reverse	29 km/h
Blade width	3660 mm
Turning radius	7200 mm
Dimension	8400* 2470* 3350 mm

A grader, also commonly referred to as a road grader, motor grader, or simply a blade, is a form of heavy equipment with a long blade used to create a flat surface during grading. Although the earliest models were towed behind horses, and later tractors, most modern graders are self-propelled and thus technically "motor graders".

Typical graders have three axles, with the steering wheels in front, followed by the grading blade, then a cab and engine atop tandem rear axles. Some graders also have front wheel drive for improved performance. Some graders have optional rear attachments, such as a ripper, scarifier, or compactor. A blade forward of the front axle may also be added. For snowplowing and some dirt grading operations, a main blade extension can also be mounted.

Capacities range from a blade width of 2.50 to 7.30 m (8 to 24 ft) and engines from 93-373 kW (125-500 hp). Certain graders can operate multiple attachments, or be designed for specialized tasks like underground mining.
