• Model NO.：XS163
• Travel Speed：40cm,s
• Condition：New
• Operating Weight：16000kg
• Load on Front Drum：9900kg
• Load on Rear Wheels：6100kg
• Drum Diamete：1523mm
• Drum Width：2130mm
• Static Linear Load：464n,Cm
• Vibration Frequency(Low/High)：28,35
• Engine Model：Cummins B5.9
• Engine Power：125kw
• Transport Package：Nude Package
• Specification：6222*2300*3200mm
• Origin：China
• HS Code：84294019
• Production Capacity：10000

Basic Info.

Model NO. XS163 Travel Speed 40cm/s Condition New Operating Weight 16000kg Load on Front Drum 9900kg Load on Rear Wheels 6100kg Drum Diamete 1523mm Drum Width 2130mm Static Linear Load 464n/Cm Vibration Frequency(Low/High) 28/35 Engine Model Cummins B5.9 Engine Power 125kw Transport Package Nude Package Specification 6222*2300*3200mm Origin China HS Code 84294019 Production Capacity 10000

Product Description

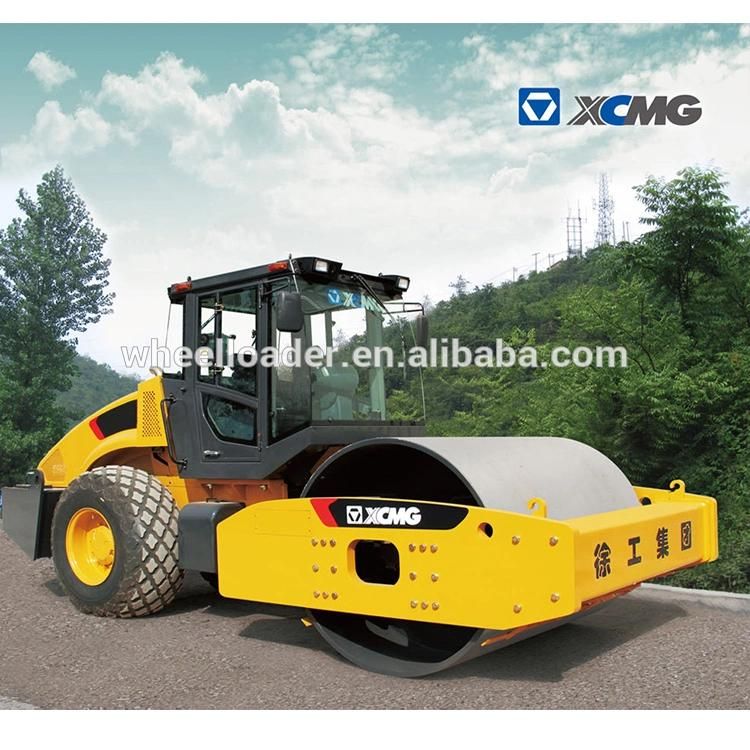

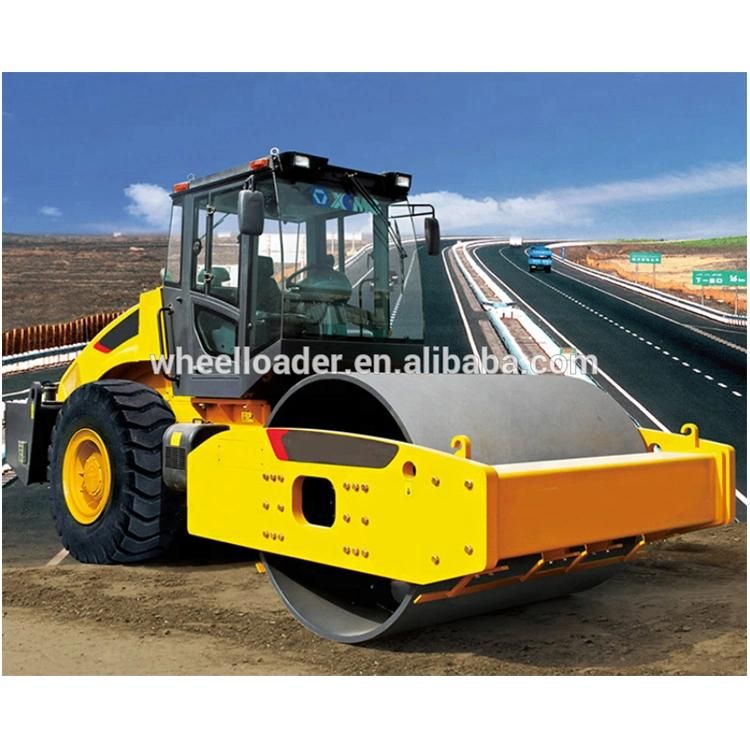

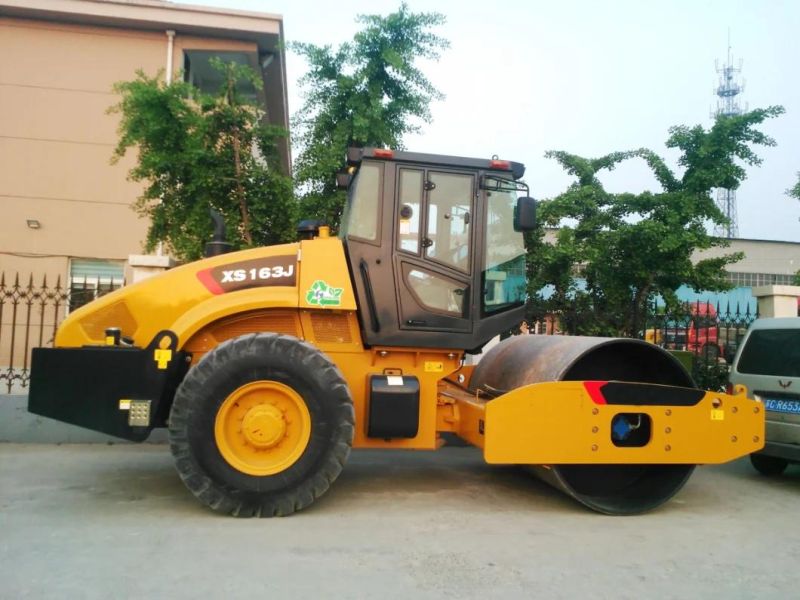

Top Quality XS163 16 ton Road Roller with Single Steer Wheel

XS143J/XS163J/XS183J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.



Performance feature
The spacious and bright cab features wide view and comfort.

Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.

The special compactor drive axle has the function of preventing slipping, featuring strong traction.

Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes a closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.

Energy-saving and environmentally friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.

High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.

The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.

Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.

Optional configuration

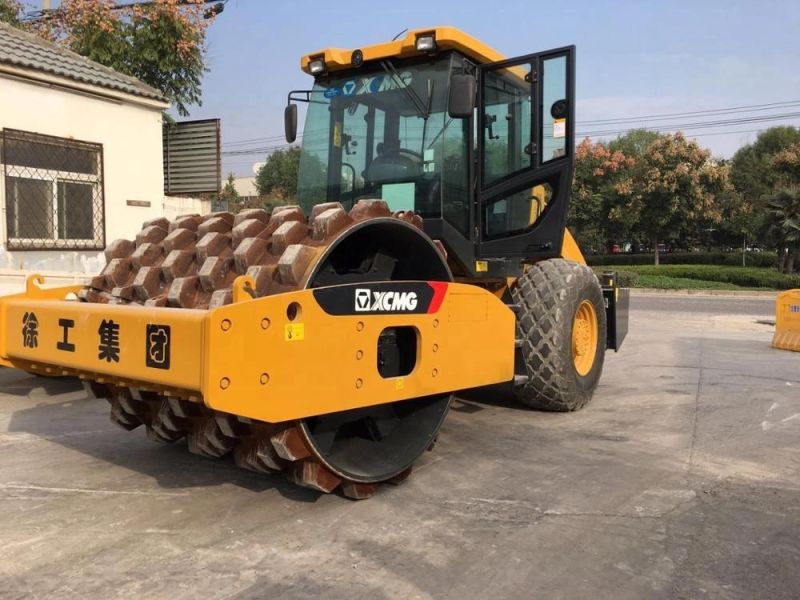

The integral convex block drum, split convex block drum, and the cab with air conditioning.

Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Parameter:


Model	XS163
Operating weight(KG)	16000
Load on front drum(KG)	9900
Load on rear wheels(KG)	6100
Drum diameter(mm)	1523
Drum width(mm)	2130
Static linear load(N/cm)	464
Vibration frequency(Low/High)	28/35
Nominal amplitude(High/Low)(mm)	1.86/0.88
Excitation force(High/Low)	320/235
Travel speed(km/h)	0~12
Steering angle(°)	±33
Swing angle(°)	±10
Theoretical  gradeability(%)	55
Min. external turning radius(mm)	6415
Engine model	Cummins B5.9
Engine power(kW)	125
Rated engine speed(r/min)	2200
Overall length(mm)	6222
Overall width(mm)	2300
Overall height(mm)	3200
