• Model NO.：XMR30S
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Operating Weight：3000kg
• Engine Model：Detuz F2l2011
• Speed：0-10km,H
• Rated Power：22kw
• Dimenssion：2733,1306,2900mm
• Transport Package：Nude Package
• Specification：ISO, CE, GOST
• Trademark：Oriemac
• Origin：China(Mainland), Jiangsu
• Production Capacity：15000units,Year

Basic Info.

Model NO. XMR30S Travel Speed 40cm/s Centrifugal Force 40KN Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight 3000kg Engine Model Detuz F2l2011 Speed 0-10km/H Rated Power 22kw Dimenssion 2733/1306/2900mm Transport Package Nude Package Specification ISO, CE, GOST Trademark Oriemac Origin China(Mainland), Jiangsu Production Capacity 15000units/Year

Product Description

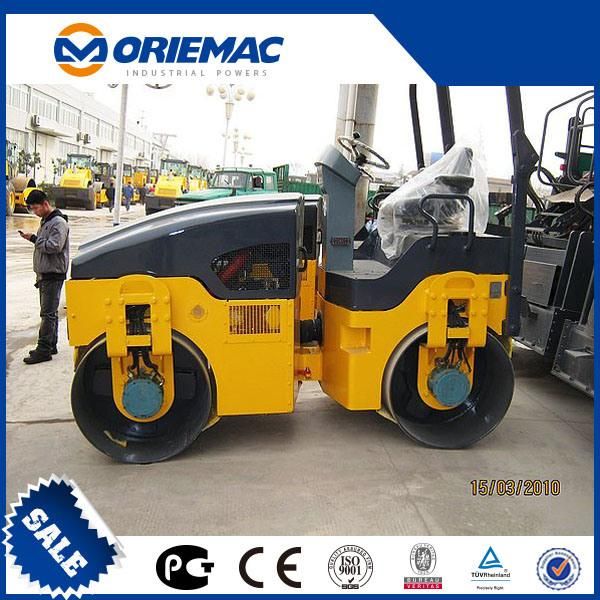

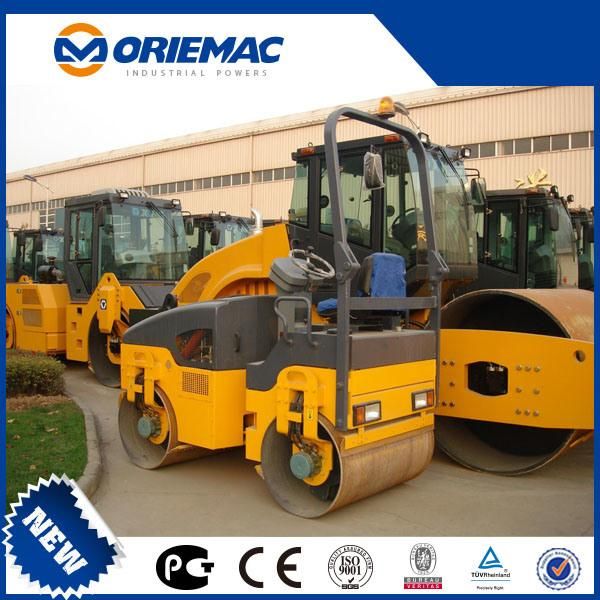

3 Ton Double Drum Vibratory Mini Road Roller (XMR30S)

1. Comfortable driving
2. Unique structure
3. Easy operation
4. Outstanding configuration
5. Leading compacting performance
6. Easy maintenance

1- The Mini double drum Roller XMR30S is a highly efficient machine designed for a wide range of compaction and
Maintenance work including roads, airfields, seaports, dams and housing foundations. The compact
Design and high mobility also make the machine indispensable to municipal construction work such
As stadiums, parks, pedestrians, parking area, trenches, etc.
Articulated frame features flexible steering for great stability.
Hydraulic transmission, hydraulic vibration and steering combine to offer unsurpassed reliability.
Both front and rear drums are equipped with scrapers and sprinkler devices.
Mini double drum Roller. Excellent drum edge visibility during operation allows for easy compaction of road curbs.

2- XMR30S Mini double drum Roller vibratory roller features high efficiency. The machine is widely used in construction and maintenance of the road, airport, port, dam and building, stadium, park and footwalk.
· It adopts the articulated frame, featuring flexible steering and excellent stability.
· It adopts hydraulic drive, vibration and steering, featuring high reliability.
· The front and rear wheels are equipped with mud-scrapper and watering device.
· The operator could see the border of the drums clearly during the operation. The large clearance of both frames ensure that it is easy to finish the compaction work on the road side.

Model	Unit	XMR30S
operating weight	kg	3000
static linear load(front/rear)	N/cm	116/110
speed	km/h	0-10
gradeability in theory	%	30
min. turning radius (L/R)	mm	2800/4000
min. ground clearance	mm	320
wheel base	mm	1800
steering angle	±°	30
swing angle	±°	10
vibration frequency	Hz	60
vibrating system-max. pressure	Mpa	18
steering system-max. pressure	Mpa	16
nominal amplitude	mm	0.4
centrifugal force	kN	34
compacting width	mm	1200
drum diameter	mm	750
engine model		Detuz F2L2011
rated engine speed	r/min	2600
rated engine power	kw	22
overall dimensions(length/width/height)	mm	2733/1306/2900
rated oil wear	g/kW.h	220
hydraulic tank capacity	L	55
fuel tank capacity	L	80
water tank capacity	L	150
