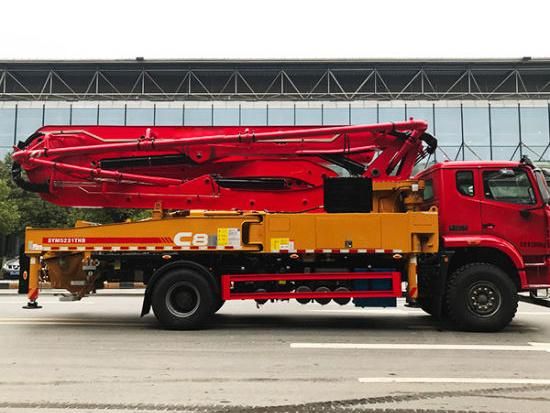

• Model NO.：SY5230THB 28
• Productivity：240m²,h
• Feeding Height：1400mm
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Total Weight：22000kg
• Length：10716mm
• Width：2500mm
• Height：3672mm
• Transport Package：Nude
• Specification：CE, ISO, GOST
• Trademark：Oriemac
• Origin：Hunan, China
• Production Capacity：1000PC,Month

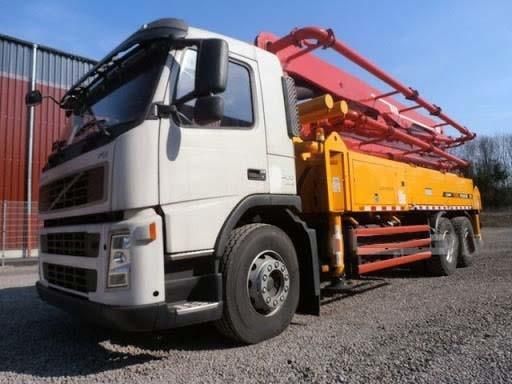

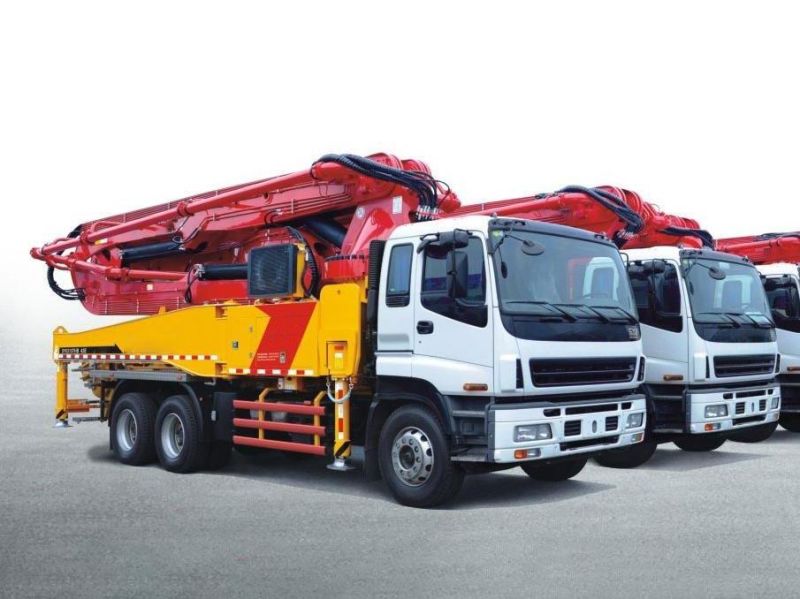

Truck mounted concrete pump 52mUnitParametersHDT5410THB-52/5Main technical parameters in working conditionTheoretical Productivitym3/h125Pumping Capacity IndexMPa.* m3/h586Max. Concrete PressureMpa8.5Hopper CapacityL700Feeding Heightmm1400Model of Distributing Valve S pipe valveMax. operation Radiusm47.8Max. operation Heightm51.8Max. operation Depthm39.8open height of aggregate carrying pipemm9400Distance between Front Landing Legsmm10295Distance between Rear Landing Legsmm10650Distance between Front and Rear Landing Legsmm10310Diameter of Delivery Pipemm125Length of rear hose pipem3Rotary Range of Distributing Boom 365°Number of Boom Sections 5Rotary Angle of Each Boom Section 90/180/
180/180/270°Close-control Distancem33Remote-control Distancem200Main technical parameters in
driving conditionMax. Traveling Speedkm/h80Min. Turning Radiusmm12500Brake Distancem10Approach Angle 16°Departure Angle 11°Chassis Model CYH51Y Wheel Base between the First and the Second Axlemm1800Wheel Base between the Second and the Third Axlemm5000Wheel Base between the Third and the Fourth Axlemm 1350Front Treadmm2022Rear Treadmm1830Max. Engine Powerkw259(2100r/min)/275 (2200r/min)Max Engine TorqueN.m1460(1100r/min)/1500 (1100-1600r/min)Overall Dimension
(length×width×height)mm13990*2500*4000Full-load Total Weightkg42000
