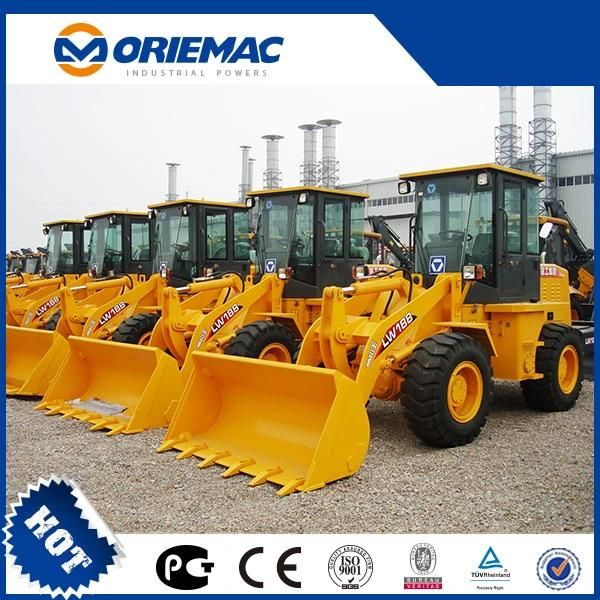

Oriemac Mini Tractor Front End Wheel Loader Lw188 with Log Grapple
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：2ton
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：LW188
- Type：Small Loader
- Load and Unload Method：Front Discharge
- Color：Yellow
- Dumping Distance：850 mm
- Wheeelbase：2200 mm
- Diesel Engine：Luotuo
- Rated Power：60 Kw
- Dimension：5520*1960*2850 mm
- Overall Weight：6 T
- Tyre Specification：16,70-20
- Warranty：1 Year
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：ORIEMAC
- Origin：Jiangsu, China
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. LW188 Type Small Loader Load and Unload Method Front Discharge Color Yellow Dumping Distance 850 mm Wheeelbase 2200 mm Diesel Engine Luotuo Rated Power 60 Kw Dimension 5520*1960*2850 mm Overall Weight 6 T Tyre Specification 16/70-20 Warranty 1 Year Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/MonthProduct Description
ORIEMAC Mini Tractor Front End Wheel Loader Lw188 with Log GrappleLW188/LW220 wheel loader is a medium sized engineering machinery and specially designed for loading & unloading, bulldozing, excavating, lifting and drawing slack material in Mines.
Hydraulic mechanism transmission & capacity, Articulated frame, fully hydraulic steering system, hydraulic operating apparatus make the loader having the features of small radium turning, easy to handle & safe performance and high productivity.
Articulated frame, small turning radius
The bucket can be automatically leveled
Hydro mechanical drive
Low pressure wide base tyre
All round and wide view cab which can be disassembled
The 60KW LR4105G72D engine has strong power
The air cleaner adopts 3-stage filtration, which has good effect.
The power shift transmission has good reliability.
The cab has falling objects protection function.
Exhaust treatment system
| Rated load | 1.8t |
| Rated load | 2350/2700/3000t |
| Dumping distance | 850 mm |
| Lifting time | ≤ 5s |
| Total time of three devices | ≤ 10s |
| Digging force | 50kN |
| Articulated angle | 35 ±1 |
| Wheeelbase | 2200 mm |
| Tread | 1490 mm |
| Speed | |
| 6/6km/h | |
| 24/24km/h | |
| Diesel engine | Luotuo |
| Model | LR4105G72DA |
| Type | Natural intake |
| Rated power | 60kW |
| Rated rotary speed | 2400r/min |
| Dimension: (Length ×Width×Height) | 5520 ×1960×2850mm |
| Overall weight | 6.0t |
| Tyre specification | 16/70-20 |
