Agriculture Machinery 165HP Cheap Motor Grader (GR165)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Size：8900*2625*3470mm
  • Engine Model：D6114
  • Rated Power：125kw,2300rpm
  • Operating Weight(Standard)：15000kg
  • Traveling Speed：5 8 11 19 23 38 Km,H
  • Max. Gradeability：20%

Base Info

  • Model NO.：GR165
  • Maximum Lift Above Ground：450mm
  • Moldboard Width*Height：3965*610mm
  • Transport Package：Nude Package
  • Specification：ISO, CE, GOST
  • Trademark：Oriemac
  • Origin：China(Mainland), Jiangsu
  • Production Capacity：9000units,Year

Description

Basic Info.

Model NO. GR165 Maximum Lift Above Ground 450mm Moldboard Width*Height 3965*610mm Transport Package Nude Package Specification ISO, CE, GOST Trademark Oriemac Origin China(Mainland), Jiangsu Production Capacity 9000units/Year

Product Description

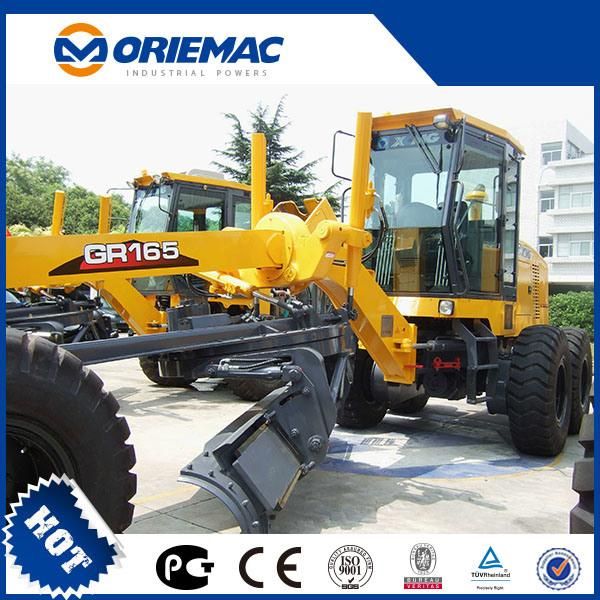

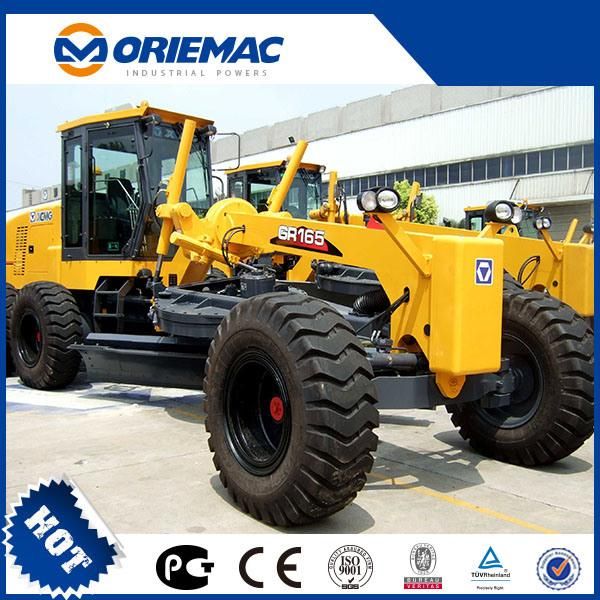

Agriculture machinery 165HP motor grader(GR165)

New appearance.
The adopted articulated frame assists the front wheel to steer, featuring small turning radius and flexibility.
Electro-hydraulic controlled brake power shift gearbox includes 6 Forward gears, and 3 Reverse gears.
The adopted international matched hydraulic parts ensure the reliable operation.
The blade movement is hydraulic controlled fully.
The rear axle is three-way drive axle with NO-SPIN self -locking differential.
The reasonable distribution of the adjustable operation panel, seat, lever and instrument guarantees the comfortable and convenient operation.
The luxury and beautiful cab features wide visibility and good sealing.

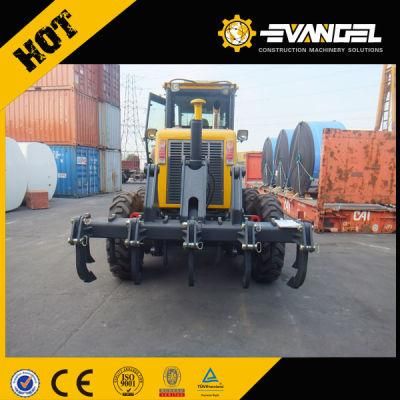

The machine can be equipped with front bulldozing plate, rear scarifier, front harrow and auto-leveling system.
Basic specification
Engine modelD6114
Rated power/speed125kW/2300rpm
Dimension(LxWxH)8900×2625×3470mm
Operating weight(Standard)15000kg
Performance specification
Travelling speed ,forward5811192338 km/h
Travelling speed ,reverse51123 km/h
Tractive force(f=0.75)77KN
Max. gradeability20%
Tire inflation pressure260 kPa
Working hydraulic pressure16 MPa
Transmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±50°
Max. lean angle of front wheels±17°
Max. oscillation angle of front axle±15°
Max. oscillation angle of balance box15
Frame articulation angle±27°
Min. turning radius using articulation7.3m
Biade
Maximum lift above ground450mm
Maximum depth of cutting500mm
Maximum blade position angle90°
Blade cutting angle28°_70°
Circle reversing rotation360°
Moldboard width X height3965×610mm
