• Model NO.：RP601L,RP701L
• Condition：New
• Color：Yellow
• Size：6096*2570*3832
• Payment Term：T,T or LC
• Delivery Time：15-30 Days
• Model：RP601
• Transport Package：Suitable Package for Shipment
• Specification：40hq
• Trademark：EVANGEL
• Origin：Xuzhou, China
• Production Capacity：20sets,Month

Basic Info.

Model NO. RP601L/RP701L Condition New Color Yellow Size 6096*2570*3832 Payment Term T/T or LC Delivery Time 15-30 Days Model RP601 Transport Package Suitable Package for Shipment Specification 40hq Trademark EVANGEL Origin Xuzhou, China Production Capacity 20sets/Month

Product Description

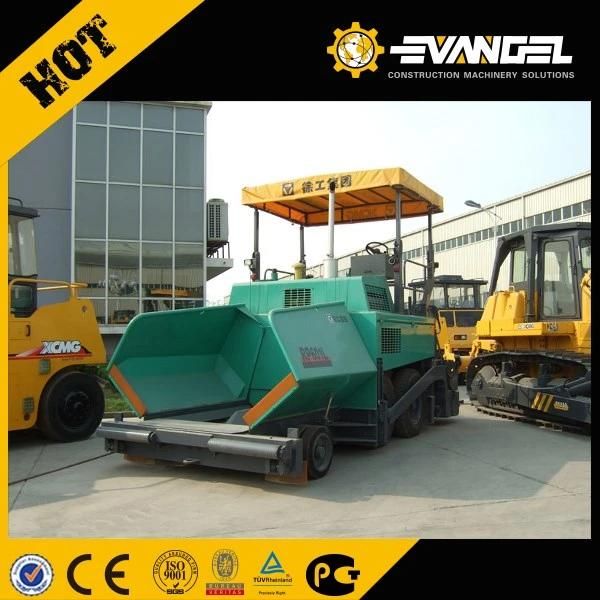

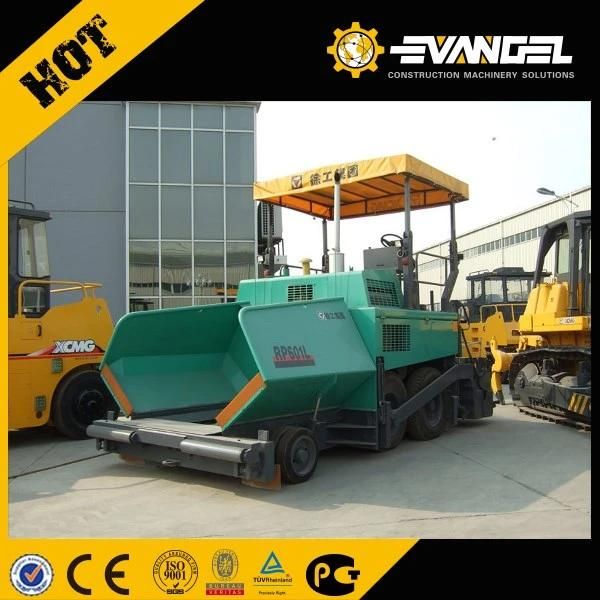

Asphalt Concrete Paver (RP601L/RP701L)
Main features:
RP601L, RP701L are elaborately designed with advanced VOGELE pave technology. It uses world advanced techniques: Fully hydraulic driven, constant velocity and automatic control system. Centralized lubricating system. Electric-heating system and the conveyor and auger could be adjusted manually or automatically. The working width is from 2.5m to 7m; The paving thickness could be infinitely adjusted from 0-300m. All the control components are on the control board that can be movable to right and left side. With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.

It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.

Item	Unit	RP451L	RP601	RP601L	RP701L
Basic Working Width	m	2	2.5	2.5	2.5
Max Working Width	m	4.5	6.0/7.0	6	7
Max Paving Thickness	mm	150	150	300	300
Paving Speed	m/min	0~13	0~11	0~18	0~18
Traveling Speed	km/h	0~13	0~3.2	0~18	0~18
Theoretical Productivity	t/h	240	300	400	400
Hopper Capacity	t	12	13	20(paving shift)	20(paving shift)
Gradient Ability	%	20(paving shift)	20	13	13
Smoothness	mm/3m	3	3	3	3
Slope Leveling Tolerance	%	±0.02	±0.03	±0.02	±0.02
Crown adjust	%	0~3	0~+3	0~+3	0~+3
Tamper revolution	r/min		0~1500	0~1500	0~1500
Tamper Amplitude	mm		4/8	4	4
Engine Type		4JR3G1(Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)	D4114ZG2B (Shangchai)
Rated power	kw	55	100	100	100
Rated revolution	rpm	2200	2400	2400	2400
Weight	t	10.5	17.4~20.5	15.3~19	15.3~19
Overall Dimension	mm	5670×2070×3590	6400×2500×3830	6096×2580×3832	6096×2580×3832
