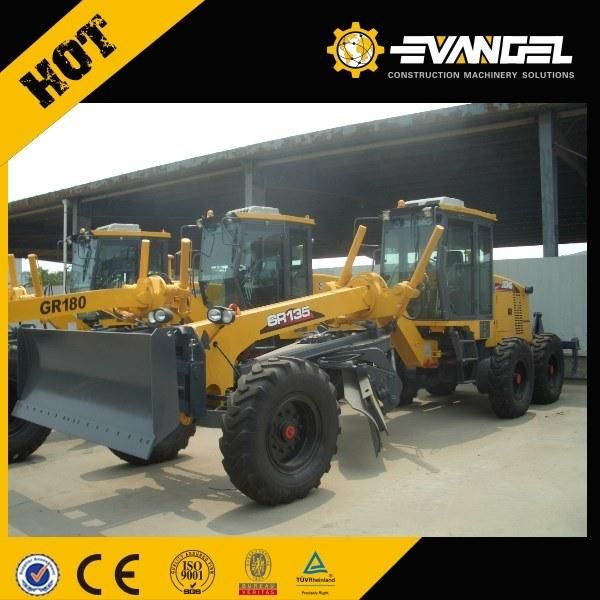

China High Quality 130HP Motor Grader Gr135

Evangel Industrial (Shanghai) Co., Ltd.
  • Engine Rated Power：100kw,2200rpm
  • Dimension：8015× 2380× 3050mm
  • Weight：11000kg
  • Max. Lifting Height：410mm
  • Engine Model：Cunmmins 6bt5.9-C
  • Transmission：Hc-Yd13

Base Info

  • Model NO.：GR135
  • Front Dozer and Rear Ripper：Optional Parts
  • Color：Yellow
  • Packing Method：Container
  • Transport Package：Standard Export Seaworthy Packaging
  • Specification：ISO
  • Origin：Jiangsu, China
  • HS Code：84292090
  • Production Capacity：200PCS,Month

Description

Engine  rated  power/rev100kW/2200rpmDimension8015× 2380× 3050mmWeight11000kgDistribution  weight  of  front  wheel3190kgDistribution  weight  of  rear  wheel7810kgMin.   clearance Front  and  rear  axle  clearance5780  mmFront  and  rear  axle  clearance1541  mmMax.   steering  angle  of  front  wheel± 49°Max.   inclination  angle  of  front  wheel Max.   swing  angle Frame  steering  angle Min.   turning  radius6.6mTraction≥ 61.3kNGradeability Forward  speed5, 8, 13, 20, 30, 42  km/hReverse  speed5, 13, 30  km/hBladeMax.   lifting  height410mm Max.   Digging  Depth515mmMax. inclination  angle90°  Cutting  angle54° _ 90°Rotating  angle360°Blade  length  ×   arc  height3710× 610mm
