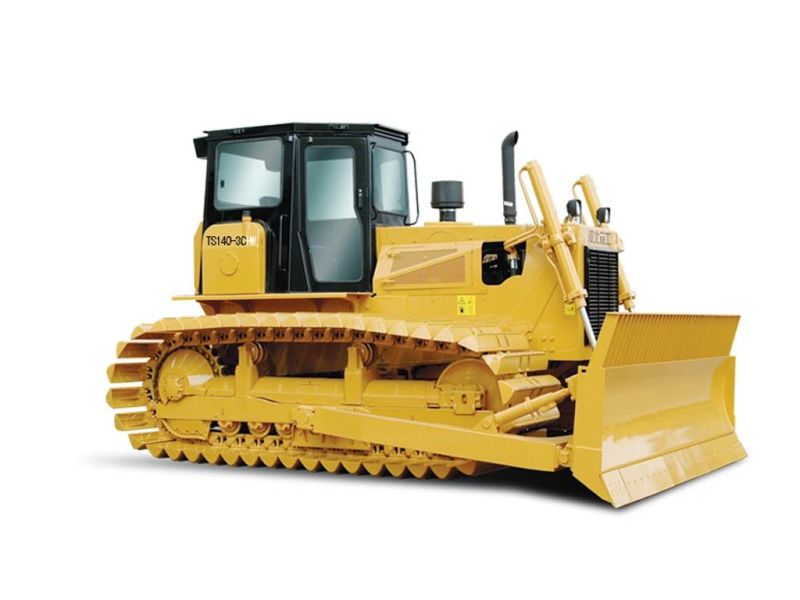

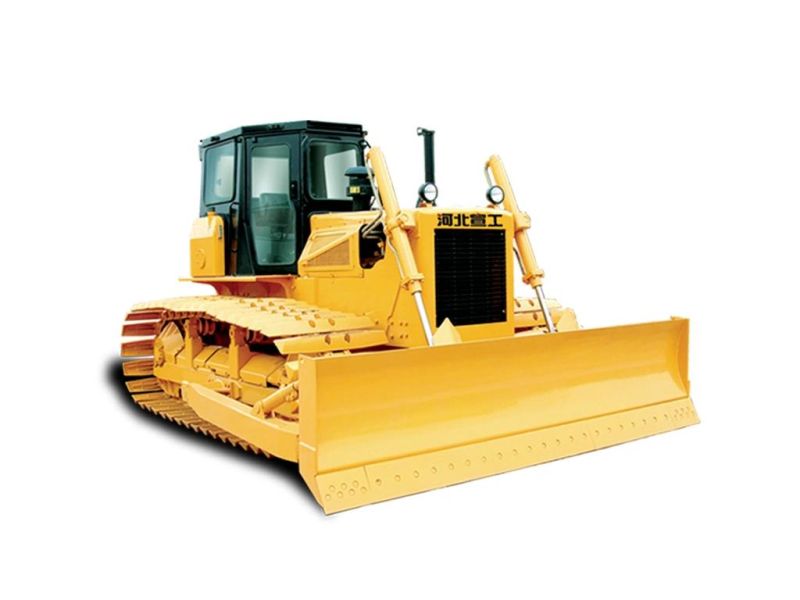

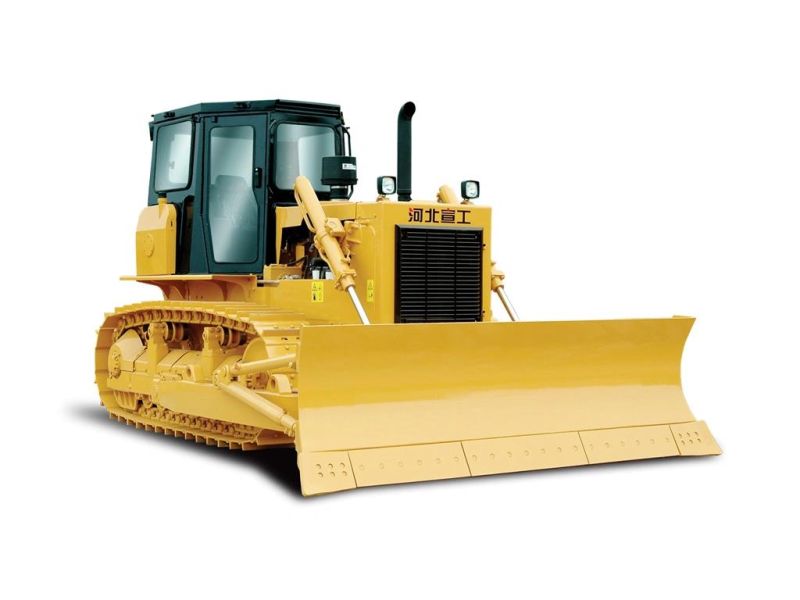

• Model NO.：T140-1
• Condition：New
• Color：Yellow
• Operation Weight(T)：16.2
• Flywheel Power(Kw)：104
• Ground Pressure (at Operating Weight)(Kp：61.8
• Min. Ground Clearance(mm)：353
• Diesel Engine：Weichai
• Model：Wd10g156e26
• Rated Rpm (R/Min)：1800
• Fuel Consumption( G/Kw·h)：215
• Specification：5336*3297*2842 mm
• Origin：China
• HS Code：84291190
• Production Capacity：1000,PCS

[Product Parameters]
 Main specificationsOverall dimensions (L×W×H)  5336*3297*2842 mmOperation weight(t)16.2Flywheel  power(kW)104 Ground pressure (at operating weight)(KPa)61.8Min. ground clearance(mm)353Grade abilityStraight 30°    Side  25°Diesel engineManufactured factoryWEICHAI POWER CO., LTDModelWD10G156E26Rated RPM (r/min)1800Fuel consumption( g/kW·h)≤215Max. torque (1000-1200r/min)(N·m)780/1000-1200Driving SystemGearForwardReverseFirst 0-2.52 km/h0-3.53km/hSecond 0-3.55 km/h0-4.96 km/hThird0-5.68km/h0-7.94km/hForth0-7.53km/h0-10.53km/hFifth0-10.61km/h Undercarriage systemNumber of track rollers6Number of carrier roller2 Number of front idlerone on each sidePitch( mm)203Width of shoe(mm)500
