• Model NO.：60vs
• Size：Small-Scale
• Certification：CE
• Condition：New
• Working Weight of The Whole Machine (Kg：5850
• Boom Length (mm)：3000
• Bucket Rod Length (mm)：1600
• Walking Speed (Km/H)：4 , 2.2
• Engine：Yanmar 4tnv98
• Minimum Ground Clearance (mm)：380
• Counterweight Ground Clearance (mm)：690
• Backend Radius of Gyration (mm)：1650
• Maximum Digging Radius (mm)：6150
• Maximum Mining Radius (mm)：6010
• Maximum Digging Depth (mm)：3820
• Maximum Excavation Height (mm)：5780
• Specification：5900*1920*2550
• HS Code：8429521100
• Production Capacity：1000,PCS

Basic Info.

Model NO. 60vs Size Small-Scale Certification CE Condition New Working Weight of The Whole Machine (Kg 5850 Boom Length (mm) 3000 Bucket Rod Length (mm) 1600 Walking Speed (Km/H) 4 / 2.2 Engine Yanmar 4tnv98 Minimum Ground Clearance (mm) 380 Counterweight Ground Clearance (mm) 690 Backend Radius of Gyration (mm) 1650 Maximum Digging Radius (mm) 6150 Maximum Mining Radius (mm) 6010 Maximum Digging Depth (mm) 3820 Maximum Excavation Height (mm) 5780 Specification 5900*1920*2550 HS Code 8429521100 Production Capacity 1000/PCS

Product Description

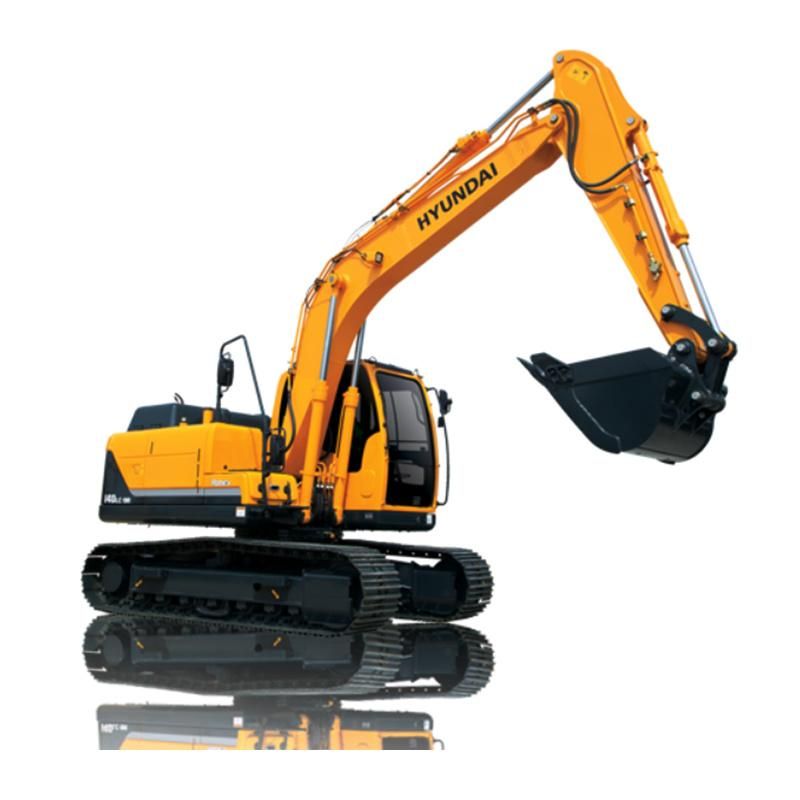

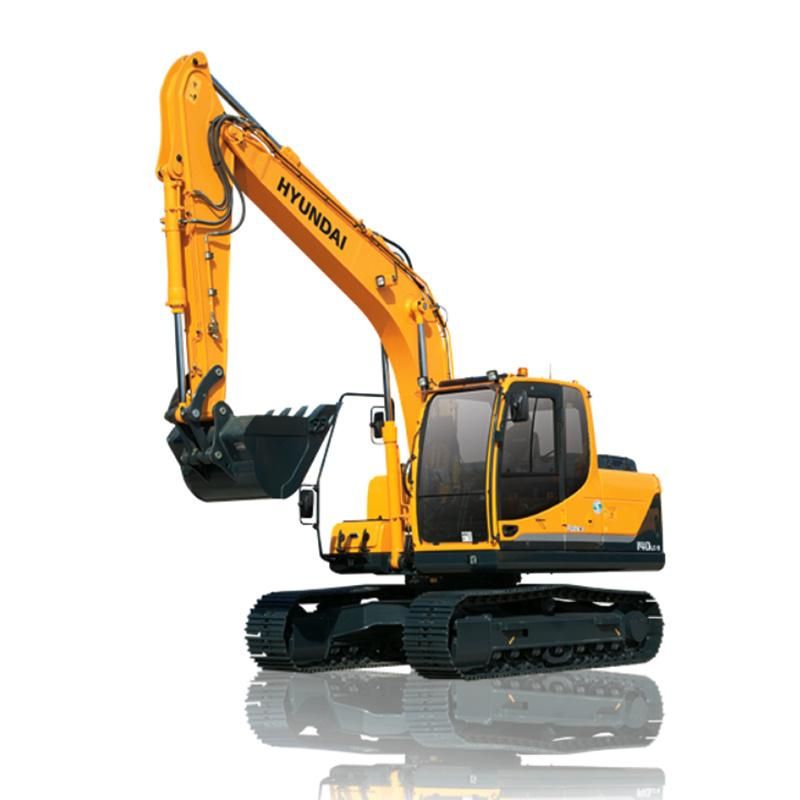

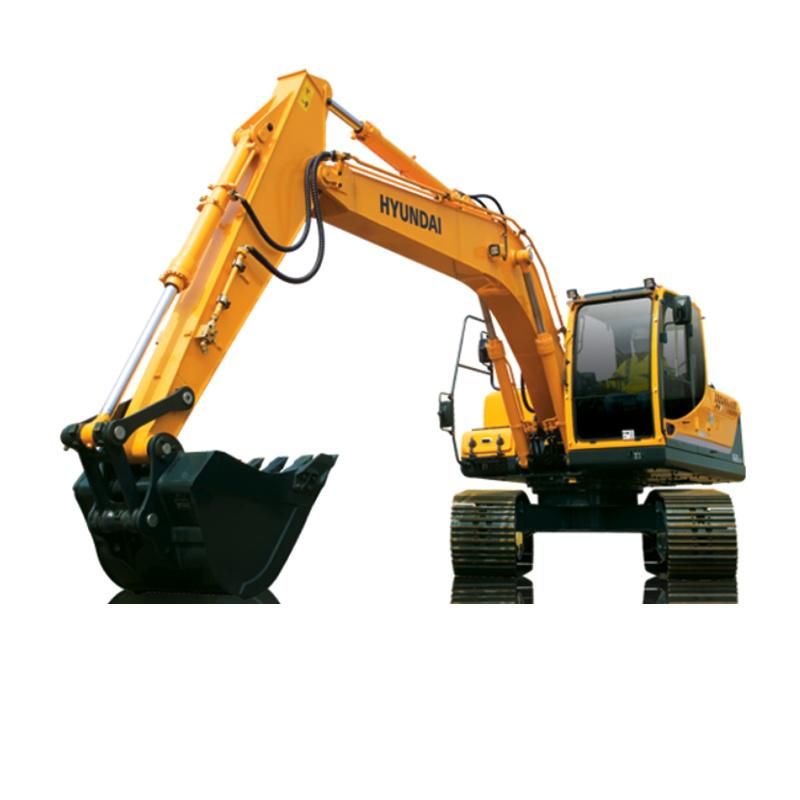

More dynamic Hyundai 60vs 6 Ton Mini Excavator

Feature

More environmentally friendly, more dynamic, faster, lower fuel consumption

- new Tier3 engine with advanced diesel high pressure common rail electronic control injection technology

- fully and thoroughly combustion of diesel fuel, greatly improving performance

- multi-fuel filtering system ensures long service life of the engine while reducing harmful gas emissions and being more environmentally friendly

- optimize the oil circuit design of the main control valve, and improve the operating speed and compound operating capacity

- the loading operation is more efficient and the amount of work per hour is larger

- lower operating costs and higher returns

IPC main pump intelligent control system

VPC variable power control system

- IPC system reduces fuel consumption by intelligently controlling the main pump flow through the operating handle

- VPC system can realize variable control of pilot pressure to ensure operating speed in all working modes

Coordinate with fuel performance to ensure high efficiency and low consumption

Parameters

Working weight of the whole machine (kg): 5850

Bucket capacity (M:): 0.21

Boom length (mm): 3000

Bucket rod length (mm): 1600

Walking speed (km/h): 4 / 2.2

Climbing ability (%): 70

Engine: Yanmar 4TNV98

Rated power (kw/rpm):54.3 / 2400

Maximum torque (N.m/rpm): 20.6 / 1800

Displacement (L):3.319

Bore diameter * stroke (mm): 98 (3.86) * 110 (4.33).

Cooling mode: water cooling

Working form: 4 cylinder 4 stroke water-cooled direct injection engine

Maximum flow rate of main pump (l/min): 2 x 55

Pilot oil circuit (MPa): 30

Working hydraulic circuit (Mpa): 220

Walking hydraulic circuit (Mpa): 220

Rotary hydraulic circuit (Mpa): 220

Boom cylinder - number x cylinder diameter * stroke (mm): 1-110 x 65 x 715 (4.3 * 28.1).

Bucket cylinder cylinder number x cylinder diameter * stroke (mm): 1-90 x 55 x 850 (3.5 "x 33.5")

Bucket oil cylinder - number x cylinder diameter * stroke (mm): 1-80 x 50 x 660 (3.1 * 26).
