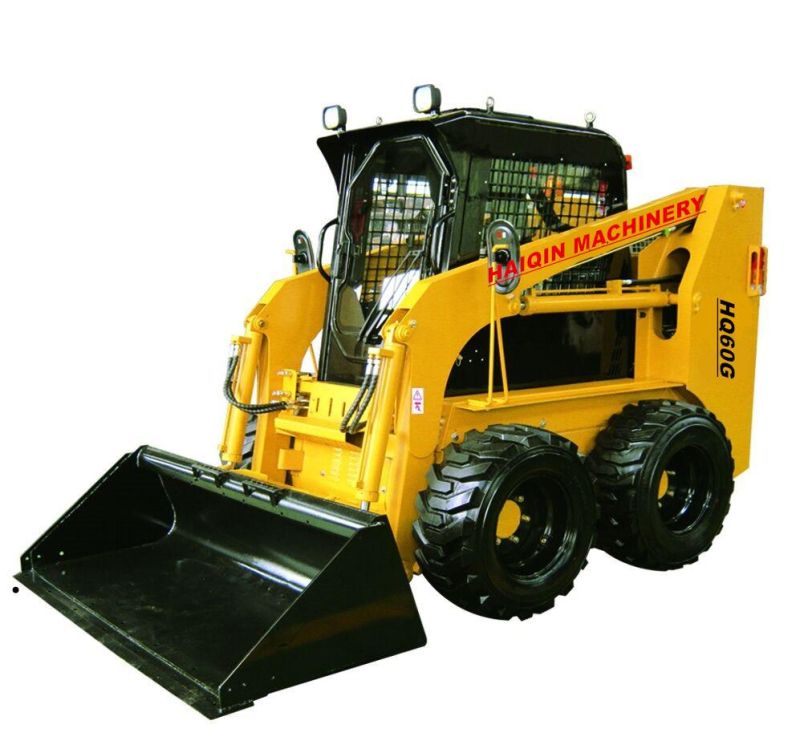

• Model NO.：HQ60G
• Type：Small Loader
• Loading Weight：850kg
• Engine：Euro II or III Engine or EPA 4
• Power：45kw
• Warranty：1 Year
• Size：3490*1880*2160
• Transport Package：4 Units in a 40 Feet Container
• Specification：CE, GOST, ISO, SGS, ROPS&FOPS
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：8000 Units , Year

Basic Info.

Model NO. HQ60G Type Small Loader Loading Weight 850kg Engine Euro II or III Engine or EPA 4 Power 45kw Warranty 1 Year Size 3490*1880*2160 Transport Package 4 Units in a 40 Feet Container Specification CE, GOST, ISO, SGS, ROPS&FOPS Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 8000 Units / Year

Product Description

1, Loader Standard :

It standard configuration: Xinchai 498 engine, 850kg loading capacity ,Italian pump, American Eaton hydraulic motor, Italian multi way valve, open cab, 12-16.5 tires, 74 inch bucket, hydraulic brake, Italian quick hitch change etc .
Also Can choose Option : Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,
Combinition bucket,Mower,Asphalt cutter,and More.

2, Main Specifications :

Rated operating capacity(kg):...................................................................................................... 850
Tipping load(kg): .........................................................................................................................1700
Bucket capacity(m3):........................................................................................................................ 0.5
Operationg weight(kg) :.....................................................................................................................3200
Max. travel speed(km/h):............................................................................................................... 12
Hydraulic pump flow(L/min): .........................................................................................................75
Fuel tank capacity(L): ....................................................................................................................80
Tires :..............................................................................................................................................12-16.5
Overall dimensions(mm) :.................................................................................................3490×1880×2160
Height at maximum extension(mm):.............................................................................................. 4000
Height to bucket hinge pin(mm): ..................................................................................................3100
Width with bucket(mm):................................................................................................................. 1880
Track width(mm) :...........................................................................................................................1500
Wheelbase(mm) :...........................................................................................................................991
Ground clearance(mm):................................................................................................................ 200
Dump angle: ...............................................................................................................................40°
Dumping height(mm): ...............................................................................................................2400
Maximum reach(mm):.................................................................................................................. 750
Engine Maker/Model :................................................................................................................XINCHAI498
Net power :..............................................................................................................................45KW/2500rpm
Type:...................................................................................................4 Cylinder in-line, Water cooled, 4 stroke,
Displacement(L): ...........................................................................................................................3.168

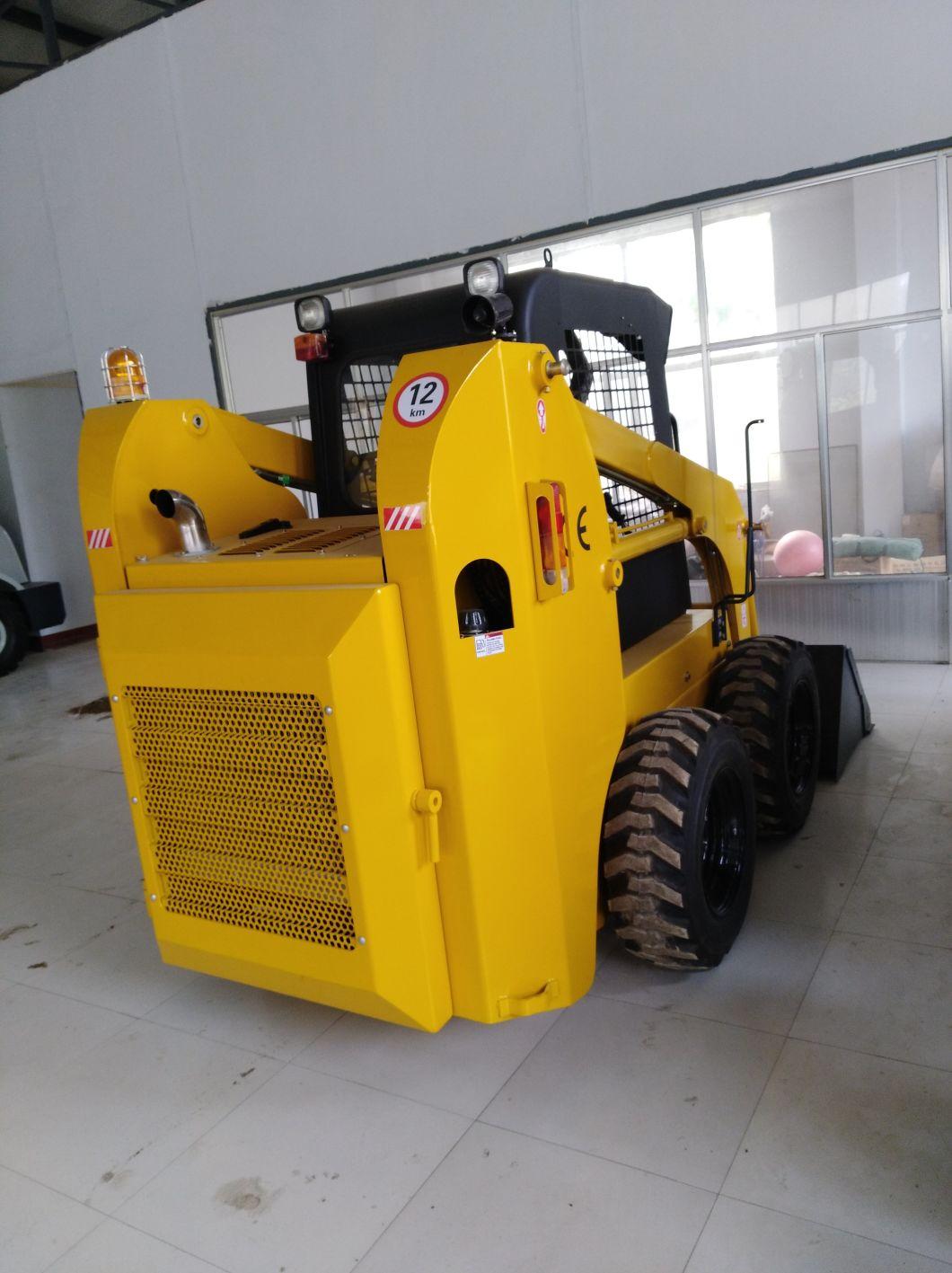

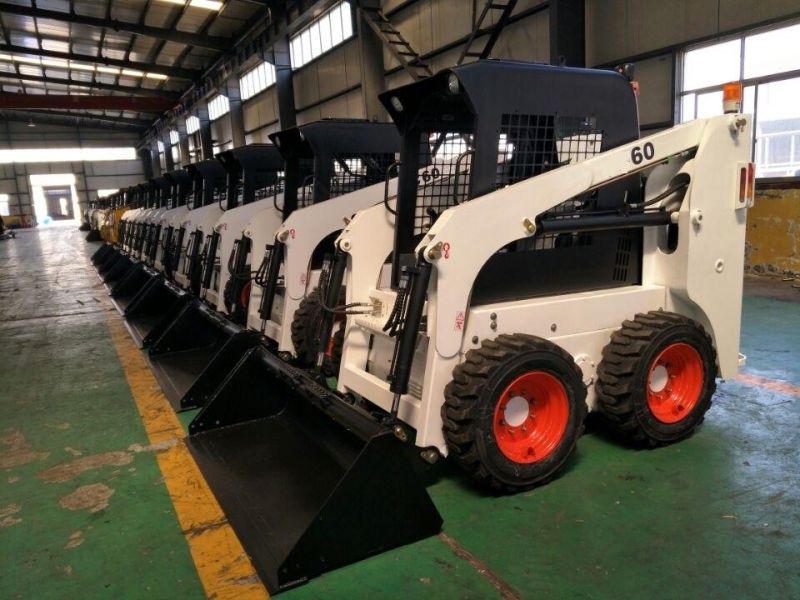

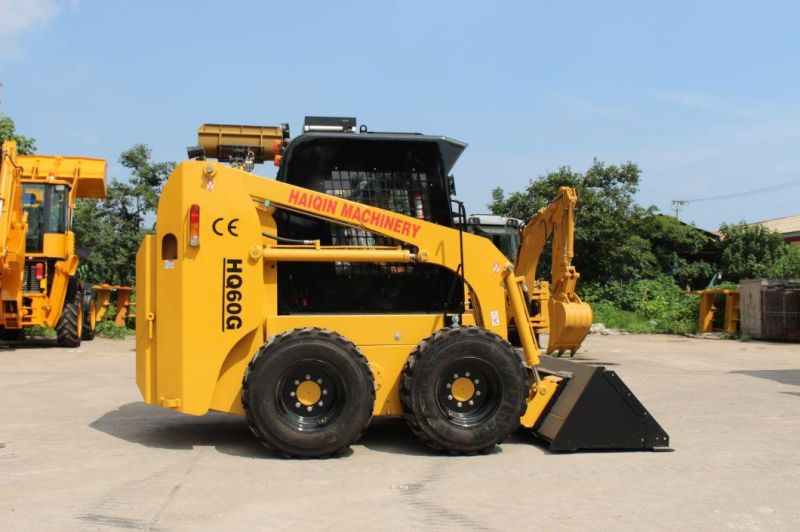

3, More photos :
