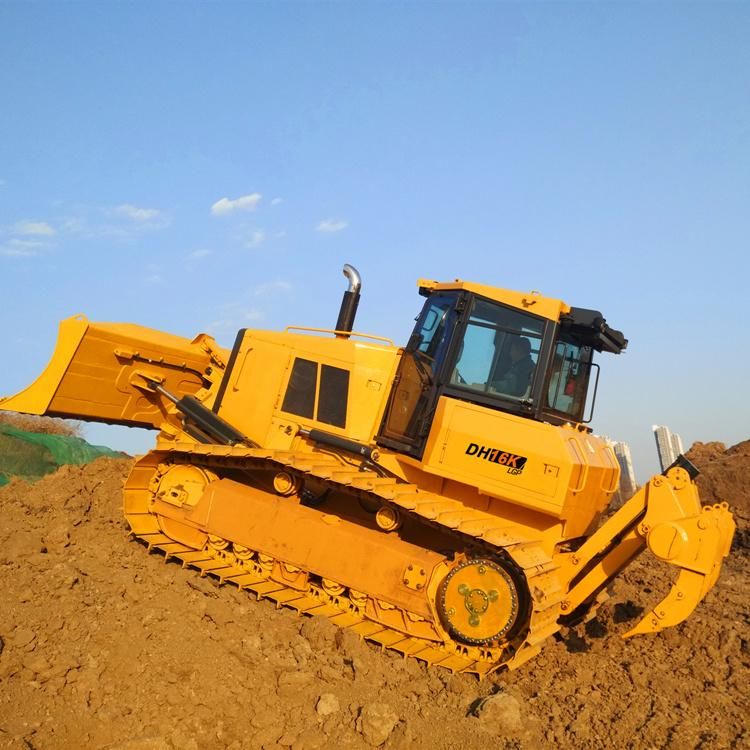

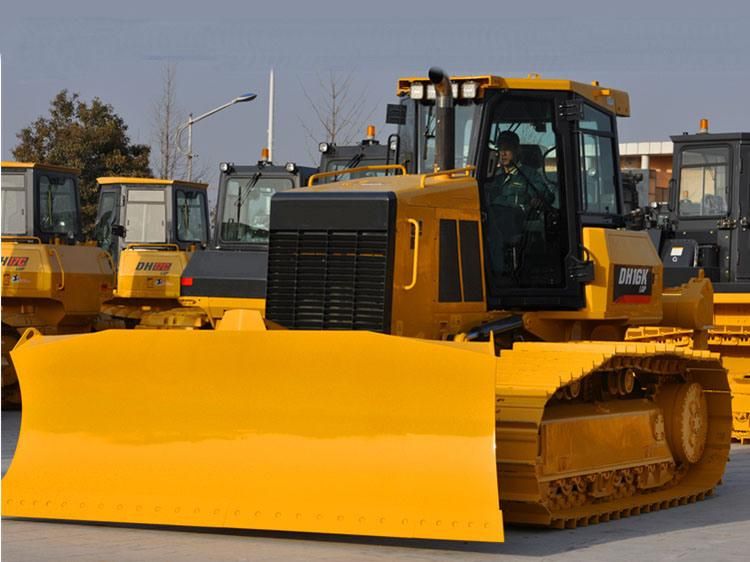

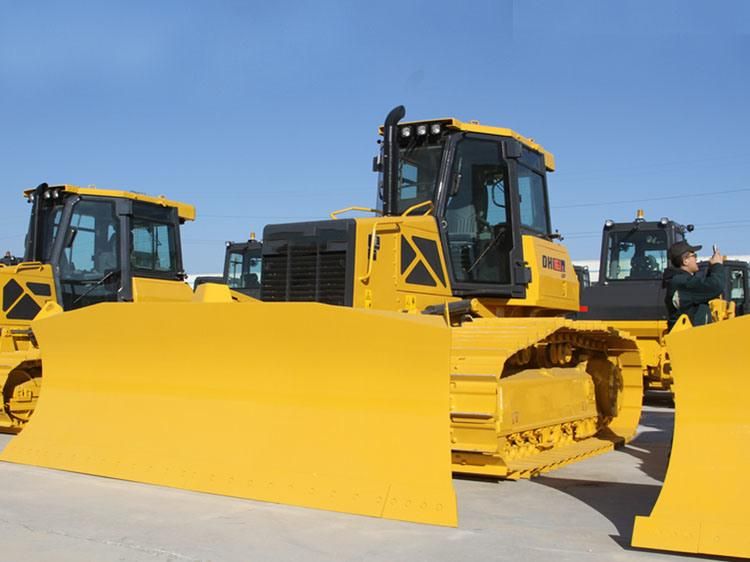

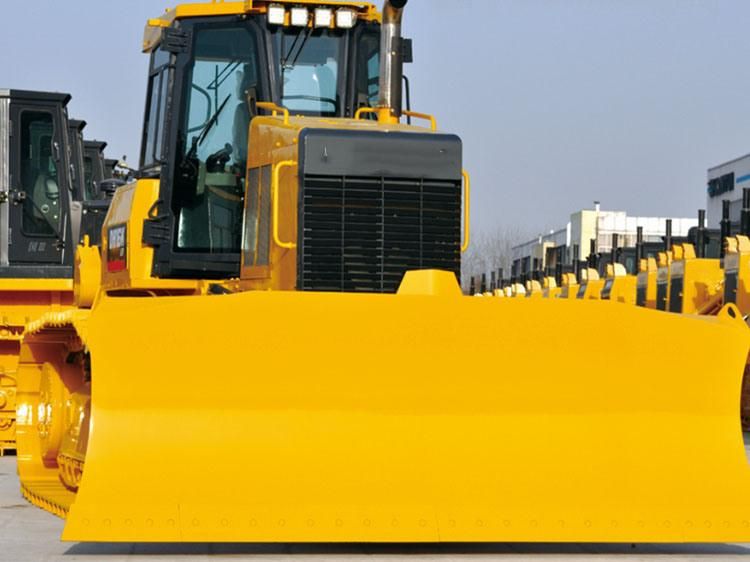

• Model NO.：DH16K
• Condition：New
• Color：Yellow
• Operating Weight：17235kg
• Emission：Euro IV
• Maximum Torque：850nm,1400rpm
• Length：5800mm
• Width：3400mm
• Height：3065mm
• Transport Package：Nude Packing
• Specification：142kW
• Trademark：SHANTUI
• Origin：China
• HS Code：8429119000
• Production Capacity：100units,Mouth

Overview Product Description

Product Parameters



PRODUCTDH16K XLDH16K LGPPERFORMANCE PARAMETERSOperatiing Weight (kg)17235KG/37786LB (Track frame included)18400KG/40351LB(Track frame included)18780KG/41189LB (Ripper included)19945KG/43739LB(Ripper included)19310KG/42358LB (Winch included) Rated horsepower (kw/hp)142kW (190hp)Minimum turning radius (mm)3879mm (152.7in.)4012mm(158in.)Ground pressure (kpa)50kPa (7.25psi)/45.9kPa (6.66psi)36.9kPa(5.35psi)ENGINEModelFPT N67EmissionEPA Tier 4 Final / EU Stage IVNo.of cylinders×Bore×stroke (mm×mm)6-104mm-132mm (6-4in.-5in.)Piston displacement (L)6.7L (409cu.in.)Horsepower/rpm (kw/rpm)142KW/2100rpmMaximum torque (N.m/r/min)850Nm (627lb.-ft.) / 1400rpmDIMENSIONSLength (mm)5800mm (228in.)Width (mm)3400mm (133.9 in.)4011mm(157.9 in.)Height (mm)3065mm (121in.)TRAVELING PERFORMANCEForward/Reverse (km/h)0~10km/h6.2mph)Gradeability (deg)30Clearance (mm)370UNDERCARRIAGESuspensionOscillating equalizer bar and pivot shaftTrack gauge (mm)2040mm (80.3 in.)2350mm(92.5 in.)Shoe width (mm)560mm (22 in.) / 610mm (24 in.)810mm(32 in.)Track length on ground (mm)3075mm (121in.)Number of shoes (each side)43Pitch (mm)203mm (8in.)Carrier rollers (each side)2Track rollers (each side)8Working equipmnetBlade width (mm)3400mm (133.9 in.)4011mm(157.9 in.)Blade height (mm)1200mm (47.2 in.)1195mm(47in.)Blade capacity (m³)3.484.15 Detailed Photos
