500t 1000t Pieced Cement Silo Lime Silo Fly Ash

Shanghai Newwall Machinery Co., Ltd.
  • Building Material Making Machinery:Cement Storage Silo
  • Transport Package:Seaworthy Packing
  • Specification:30-20000T
  • Trademark:NW
  • Origin:Shanghai

Base Info

  • Model NO.:NW
  • HS Code:8474900000
  • Production Capacity:2000PCS,Year

Description

Basic Info.

Model NO. NW HS Code 8474900000 Production Capacity 2000PCS/Year

Product Description

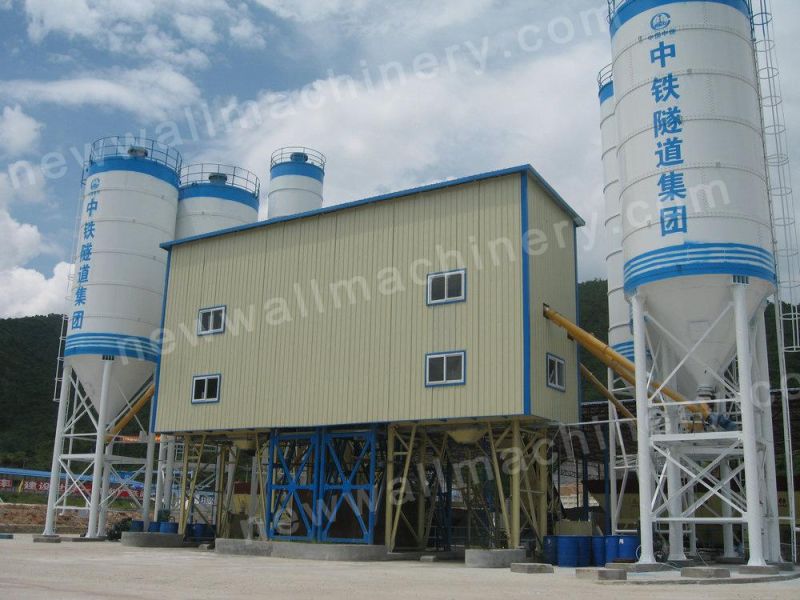

The Sectional silo is also called piece assembly silo, it's bolt connection type silo, the silo body can be connected by high strength bolts, so no matter what size you need, all parts can be loaded into container, which is easy to transport and save freight. The diameter is 3~10m, silo volume can be up to 2000m3.

With mature technology, the silo is reliable in strength and airtight and can be produced very economically. The separate segments- sealed according to the special applications are prefabricated in units, which can be transported by all usual possibilities. The silos will be delivered with oblique, flat or without roofs.
Used for: Powdery and coarse bulk materials as cement, lime, gypsum, fly ash, different binder materials, gravel, limestone, sand and different chippings.

Application: Loading and unloading plants, Dosing-Weighing and Mixing plants, Preparation plants, transitional silo.
Advantages: Designed and statical optimized silos, precise elements due to industrial fabrication.
Short and cost-economic construction, erection seasonally independent.
The discharge height depends on the method of discharge, withdrawal by conveyor or bulk loading on truck. The cone angle can be designed according to customer's requirements.500t 1000t Pieced Cement Silo Lime Silo Fly Ash
 volume(T) outside diameter(mm)cylinder height(mm)
 50 31004681
 60 3100 6200
 1003100  10755
 150 3300 12302
 150 3800 9239
 2004500  9265
 250 4500 12300
 300 5000 10783
 400 5700 12300
 500 6500 12302
 800 8000 10783
1000 8000 13820
 1500 10000 15337
 2000 10000 18378
