• Model NO.：SD13
• Condition：New
• Color：Orange
• Operating Weight：13700kg
• Emission：China II
• Maximum Torque：674,1300 N.M,R,Min
• Length：4492mm
• Width：3185mm
• Height：2950mm
• Transport Package：Nude Packing
• Specification：105kW
• Trademark：SHANTUI
• Origin：China
• HS Code：8429119000
• Production Capacity：100units,Mouth

Overview Product Description

Product Parameters



PRODUCTSD13 PERFORMANCE PARAMETERSOperatiing Weight (kg)13700Rated horsepower (kw/hp)105/130Minimum turning radius (mm)3880Ground pressure (kpa)53.8ENGINEModelSC8D143G2B1EmissionChina IITypeIn-line, direct injection, water cooled, 4-cycles, turbochargedNo.of cylinders×Bore×stroke (mm×mm)6×114×135Piston displacement (L)8.27Horsepower/rpm (kw/rpm)105/1900Maximum torque (N.m/r/min)674/1300DIMENSIONSLength (mm)4492Width (mm)3185Height (mm)2950TRAVELING PERFORMANCEForward/Reverse (km/h)F1:0-3.2 F2:0-5.9 F3:0-9.8 R1:0-3.9  R2:0-7.1 R3:0-11.9Gradeability (deg)30Clearance (mm)320TRANSMISSIONTorque convertor3-element, single stage, 1-phaseGear boxPlanetary gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet multiple disc,coned disc spring loaded, hydraulically actuated, hand operated, interconnected with steering brakeBrakeWet, contracting band,foot operated with hydraulic boosterFinal driverspur gear,double reduction ,splash lubricationUNDERCARRIAGESuspensionSwing type of sprayed beam,suspended structure of equalizer barTrack gauge (mm)1880Shoe width (mm)460Track length on ground (mm)2365Number of shoes (each side)38Pitch (mm)190Carrier rollers (each side)2Track rollers (each side)6WORKING HYDRAULIC SYSTEMPressure (Mpa)14Working pumpGear   pumpValveMulti-way   valveBore of blade lift cylinder (mm)φ90Bore of blade tilt cylinder (mm)φ160TANK CAPACITYFuel tank capacity (L)300Working hydraulic tank capacity (L)70WORKING EQUIPMENTBlade width (mm)3185Blade height (mm)1090Blade capacity (m³)3.7

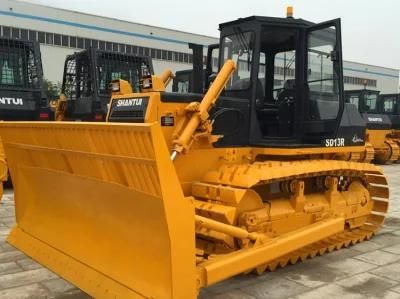

Detailed Photos
