• Model NO.：SD16
• Condition：New
• Color：Orange
• Operating Weight：17000kg
• Emission：China II
• Maximum Torque：764,1300 N.M,R,Min
• Length：5140mm
• Width：3388mm
• Height：3032mm
• Transport Package：Nude Packing
• Specification：120kW
• Trademark：SHANTUI
• Origin：China
• HS Code：8429119000
• Production Capacity：100units,Mouth

Overview Product Description

Product Parameters

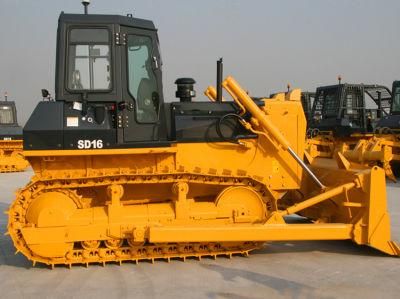

PRODUCTSD16 PERFORMANCE PARAMETERSOperatiing Weight (kg)17000Rated horsepower (kw/hp)(120/160)Minimum turning radius (mm)4466Ground pressure (kpa)58ENGINEModelWeichai WP10G178E355/Shangchai SC11CB184G2B1EmissionChina IITypeIn-line, direct injction, 4-cycles, water cooled, turbochargedNo. of cylinders×Bore×stroke (mm×mm)6-126×130/6-121×152Piston displacement (L)9.726/10.5Horsepower/rpm (kw/rpm)131/1850, 135/1850Maximum torque (N.m/r/min)764/1300DIMENSIONSLength*Width*Height (mm)5140×3388×3032TRAVELING PERFORMANCEForward (km/h)F1:0~3.29F2:0~5.82F3:0~9.63Reverse (km/h)R1:0~4.28R2:0~7.59R3:0~12.53Gradeability (deg)30°Clearance (mm)400TRANSMISSIONTorque convertor3-element, single stage, 1-phaseGear boxPlanetary gear and powershift transmission, hydraulically actuated, forced lubricationMain driveSpiral bevel gear, single-stage speed reduction, splash lubricationSteering clutchWet multiple disc, coned disc spring loaded, hydraulically actuated, hand   operated, interconnected with steering brakeBrakeWet, contracting band,foot operated with hydraulic boosterFinal driverspur gear, double reduction, splash lubricationUNDERCARRIAGESuspensionSwing type of sprayed beam, suspended structure of equalizer barTrack gauge (mm)1880Shoe width (mm)510 (560,610)Track length on ground (mm)2430Number of shoes (each side)37Pitch (mm)203Carrier rollers (each side)2Track rollers (each side)6WORKING HYDRAULIC SYSTEMPressure (Mpa)14Working pumpGear pumpValveMulti-way valveBore of blade lift cylinder (mm)Φ110Bore of blade tilt cylinder (mm)Φ160Bore of ripper lift cylinder (mm)Φ160TANK CAPACITYFuel tank capacity (L)315Working hydraulic tank capacity (L)110WORKING EQUIPMENTBlade width (mm)3388Blade height (mm)1149Blade capacity (m³)4.5Max.Drop below ground of blade540Lift height of blade1095Maximum lifting height of ripper (mm)572Maximum digging depth of ripper (mm)592 Detailed Photos
