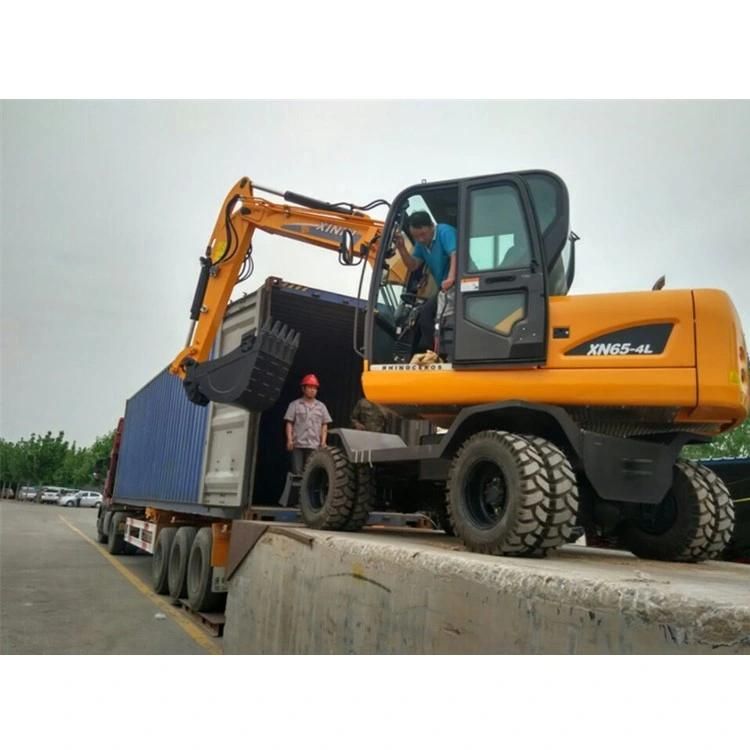

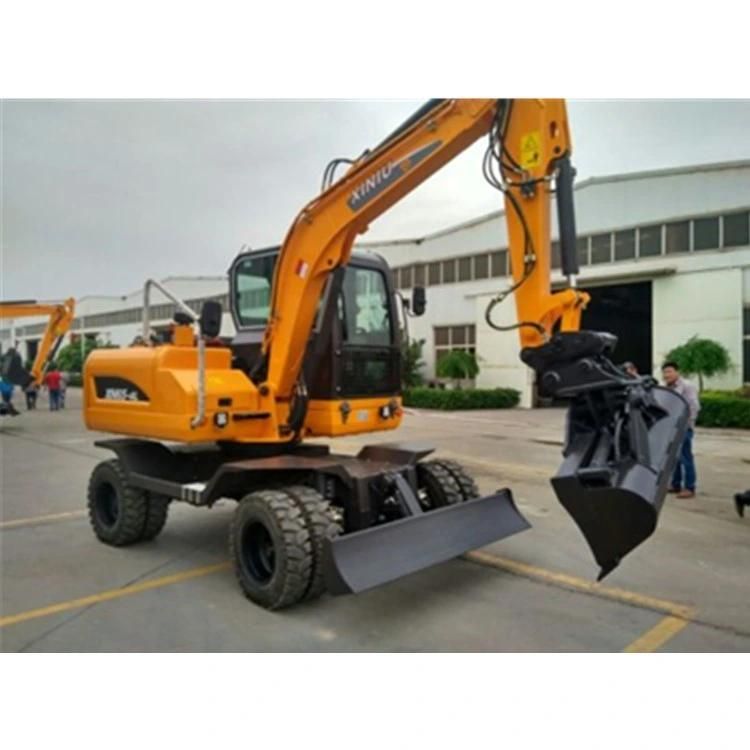

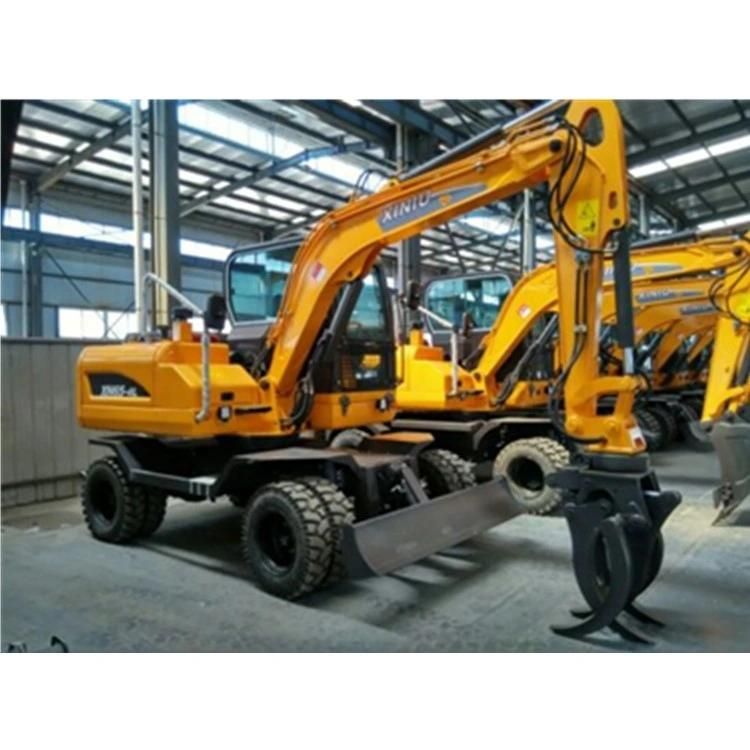

6ton Wheel Excavator (Xn65-4L)
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Type：Wheel Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Backhoe
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.0~1.5m³
Base Info
- Model NO.：XN65
- Size：Small-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Product Name：6ton Wheel Excavator (Xn65-4L)
- Operating Weight：6t
- Digging Bucket Capacity：0.25cbm
- Attachment：Hammer, Auger, Grabber, Tilt Bucket, Quick Hitch
- Max. Digging Depth：5370mm
- Max. Digging Height：3810mm
- Max. Dumping Height：2857mm
- Transport Package：Nude Package
- Specification：5598X2035X2905mm
- Trademark：RHINOCEROS
- Origin：China
- HS Code：8429521200
- Production Capacity：1000pieces,Year
Description
Basic Info.
Model NO. XN65 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Product Name 6ton Wheel Excavator (Xn65-4L) Operating Weight 6t Digging Bucket Capacity 0.25cbm Attachment Hammer, Auger, Grabber, Tilt Bucket, Quick Hitch Max. Digging Depth 5370mm Max. Digging Height 3810mm Max. Dumping Height 2857mm Transport Package Nude Package Specification 5598X2035X2905mm Trademark RHINOCEROS Origin China HS Code 8429521200 Production Capacity 1000pieces/YearProduct Description
6ton Wheel Excavator (Xn65-4L)RHINOCEROS WHEEL EXCAVATOR: XN65-4L WITH CE ISO CERTIFICATE
6ton, XINCHAI engine, 48KW, 0.25m3 bucket, Japan SHIMADZU pump, USA EATON swing motor, RUILANG valve, USA PARKER Sealing parts, Italy Manuli hydraulic pipe, A/C cab for optional, English monitor, Radio, USB, all LED light, YTO axle and transmission, Overall dimension: 5598x2035x2780m
Wheel excavator XN65-4L detail specification:
| (Model) | XN65-4L |
| (Manufacturer) | SHANDONG RHINOCEROS ENGINEERING MACHINERY CO.,LTD |
| (Brand) | RHINOCEROS |
| (Operating Weight) | 6t |
| (Overall dimension) | 5598x2035x2780mm |
| (Bucket capacity) | 0.25cbm |
| (Engine type) | XINCHAI(A498BZG) |
| (Rated power/speed) | 48KW |
| (No. of cylinders/type) | 4 cylinders in line |
| (Bore and stroke) | 98*105 |
| (Voltage of start motor) | 24V |
| (Starting type) | ELECTRIC |
| (Hydraulic main pump) | JAPAN-SHIMADZU |
| (Hydraulic system pressure) | 18MPa |
| (Hydraulic system flow) | 115L/Min |
| (Valve) | RUILONG |
| (Swing motor) | USA Eaton |
| (Max swing speed) | 13r/min |
| (Travel motor) | No, it is the mechanical |
| (Max travel speed) | 35km/h |
| (Axle and Transmission) | YTO |
| (Gear) | Forward: 1 2 3 4 5 ; Reverse:1 |
| (Bucket Digging Force) | 42Kn |
| (Arm Digging Force) | 34Kn |
| (Grade ability) | 35 degree |
| (Working fuel consumption) | 6.64L/h |
| (Diesel oil tank capacity) | 120L |
| (Engine oil tank capacity) | 9L |
| (Hydraulic oil tank capacity) | 110L |
| (Cooling fluid tank capacity) | 16L |
| (Shipping Length) | 5598mm |
| (Shipping Height) | 2780mm |
| (Overall Width) | 2305mm |
| (Boom length) | 3100mm |
| (Arm length ) | 1600mm |
| (Radius,Swing Center to Rear End) | 1785mm |
| (Min swing radius) | 2552mm |
| (Tyre Type) | 8.25-16 |
| (Wheelbase) | 2350mm |
| (Wheel Tread) | 1580mm |
| (Steering Width) | 2000mm |
| (Ground clearance) | 260mm |
| (Blade height) | 295mm |
| (Blade Dimension) | 2000*345mm |
| (Overall width with outrigger extended) | 2800mm |
| (Drive Method 2WD/4WD) | Mechanical 4WD |
| (light) | All LED lights |
| (Max Digging Height) | 5370mm |
| (Max Dumping Height) | 3810mm |
| (Max Digging Depth) | 2857mm |
| (Max Digging Radius) | 5975mm |
| (Standard machine with A/C) | NO AC, CAN OPTIONAL |
| (Packing way) | one 40HQ load two units |
| (Passed certificates) | CE ISO |
| (Can add accessories) | hammer, auger, quick hitch, grader, narrow bucket, tilt bucke |
