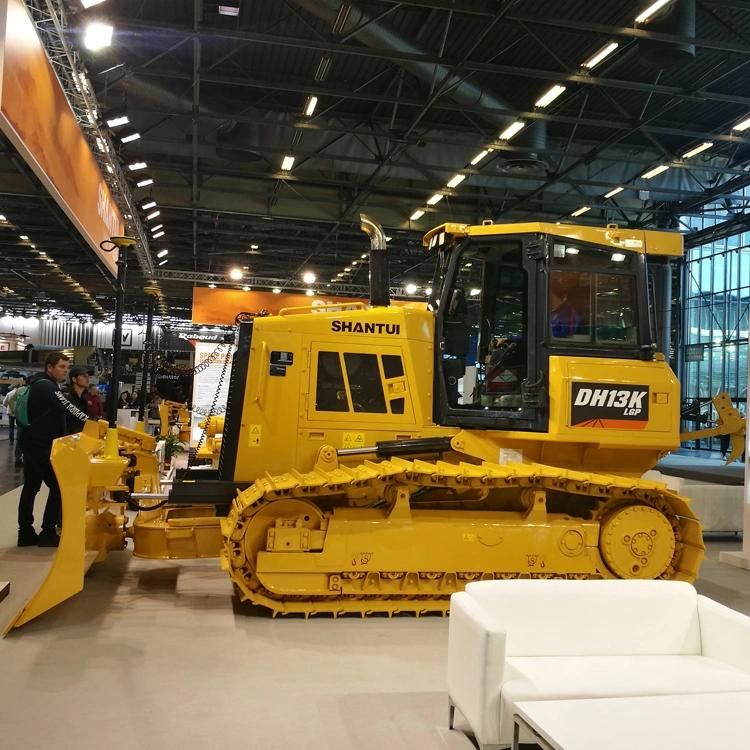

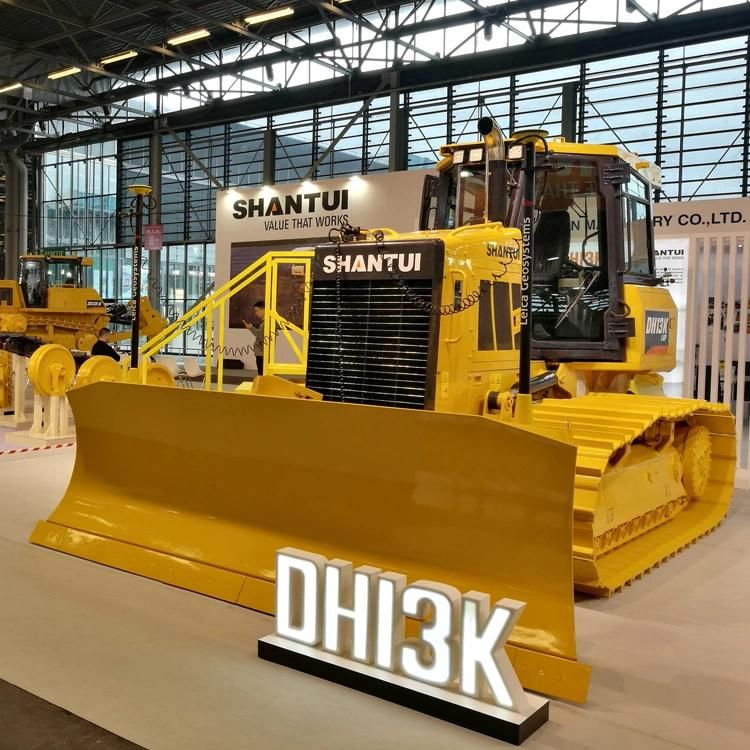

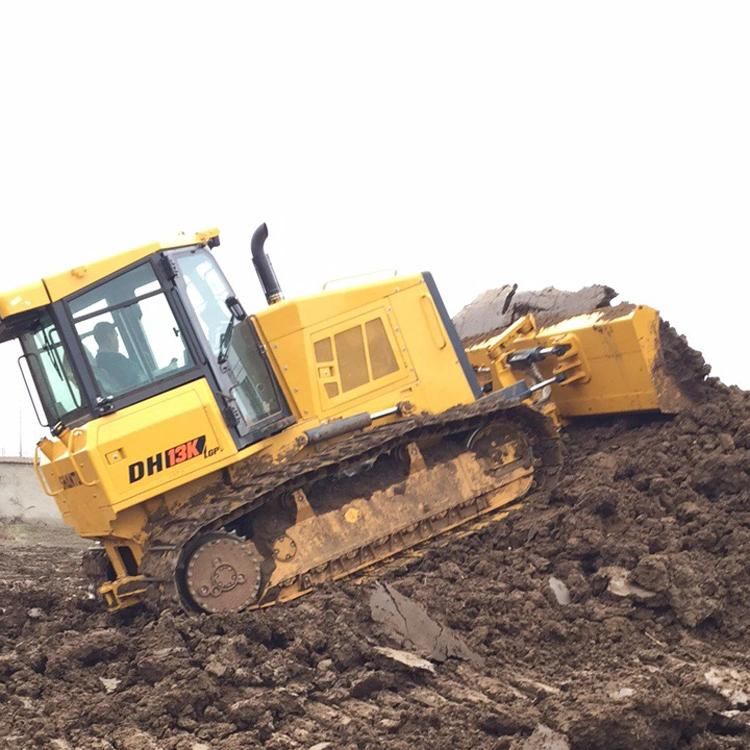

| PRODUCT | DH13B2 |
| PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 13400(XL); 13920(LGP) |
| Net horsepower (kw/hp) | 97/130@2200 |
| Minimum turning radius (mm) | 3324 |
| Ground pressure (kpa) | 39.9(XL); 33.2/30.6(LGP) |
| ENGINE | Model | Weichai WP6 |
| Emission | China Stage II |
| Type | water-cooled, in-line, 4-cycle, direct injection and turbocharged |
| No.of cylinders×Bore×stroke (mm×mm) | 6×105mm×130mm |
| Piston displacement (L) | 6.75 |
| Rated horsepower (kw/hp/rpm) | 105/141@2200 |
| Maximum torque (N.m/r/min) | 564 / 1400-1600 |
| DIMENSIONS | Length (mm) | 4924(Traction frame) |
| Width (mm) | 3380 |
| Height (mm) | 3047 |
| TRAVELING PERFORMANCE | Forward/Reverse (km/h) | 0~10 |
| Gradeability (deg) | 30 |
| Clearance (mm) | 365 |
| TRANSMISSION | Traveling pump(Linde) | Variable displacement piston pump, maximum flow 105ml/r |
| Traveling motor(Linde) | Variable displacement piston motor, maximum flow 165ml/r |
| Coupling | Elastic coupling |
| Final driver | 1 level straight gear + 1 level planetary deceleration |
| Brake | Normally closed brake,wet friction disc, compressed with disc spring, hydraulic separation |
| UNDERCARRIAGE | Suspension | Pivot balanced beam, suspended structure of equalizer |
| Track gauge (mm) | 1780(XL); 2000(LGP) |
| Shoe width (mm) | 560(XL); 700/760(LGP) |
| Track length on ground (mm) | 2640 |
| Number of shoes (each side) | 40 |
| Pitch (mm) | 190 |
| Carrier rollers (each side) | 2 |
| Track rollers (each side) | 7 |
| TANK CAPACITY | Fuel tank capacity (L) | 238 |
| Hydraulic oil tank capacity (L) | 55 |
| Transmission hydraulic tank capacity (L) | - |
| Working equipmnet | Blade width (mm) | 3380 |
| Blade height (mm) | 1306 |
| Blade capacity (m³) | 3.42 |
| Ripper(Optional) | Ripper type | 3-shank |
| Weight(kg) | 1035 |
| Max. digging depth(mm) | 500 |
