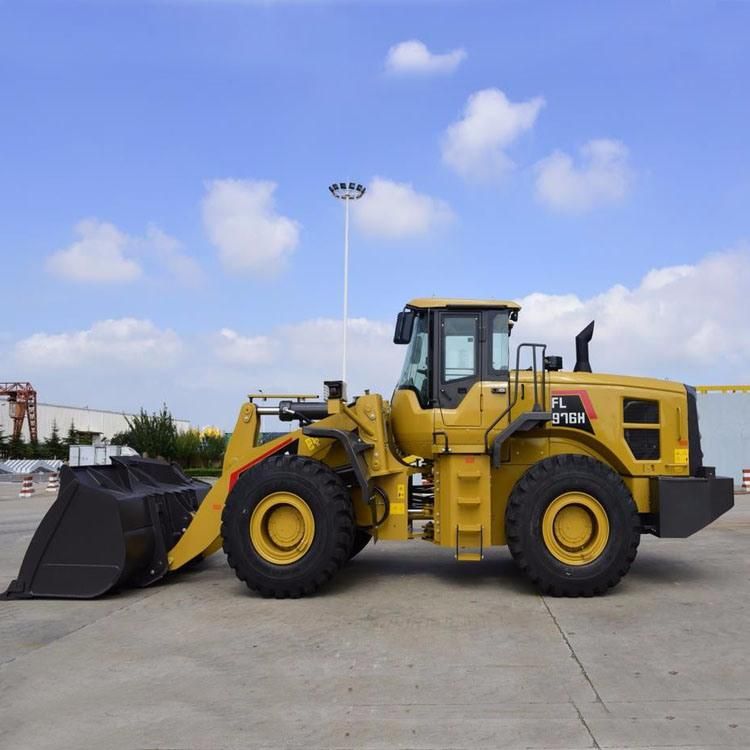

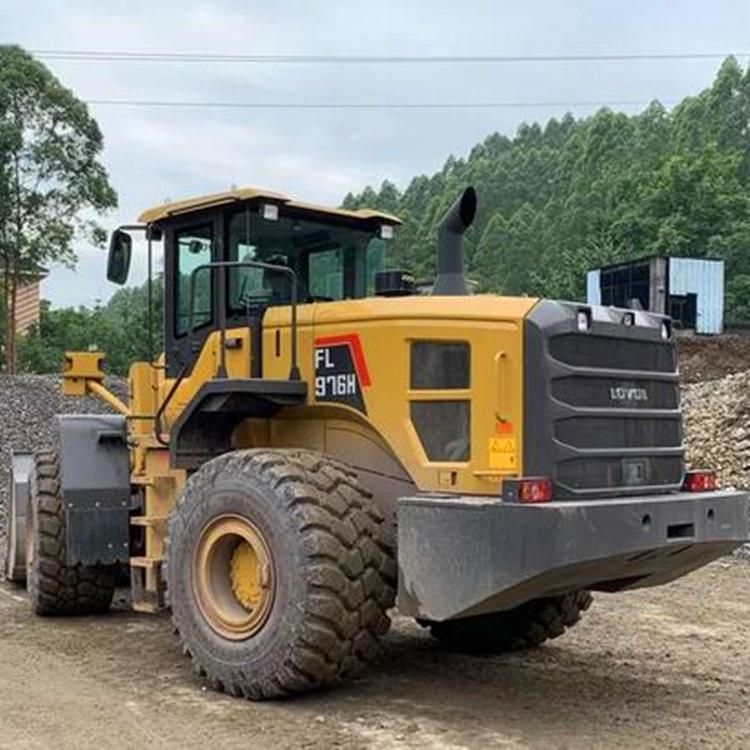

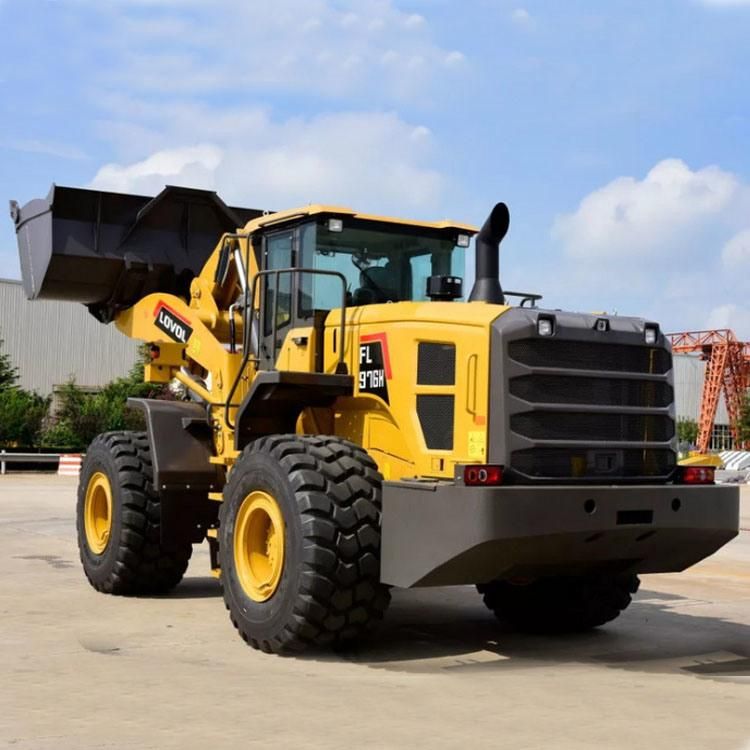

• Model NO.：FL976H
• Type：Medium-sized Loader
• Operating Weight(T)(Excluding Ripper)：23600kg
• Load Weight：7000kg
• Bucket Capacity：4.5cbm
• Engine Model：Guangxi Cummins Qsl9.3
• Rated Power：180kw
• Rated Rotational Speed：2200rpm
• Unloading Height：3490mm
• Unloading Distance：1320mm
• Wheelbase：3500mm
• Bucket Outer Turning Radius：7320mm
• Operating Model：Pilot Control
• Transport Package：Nude Packing
• Specification：9150*3200*3380 mm
• Trademark：FOTON LOVOL
• Origin：Shandong, China
• HS Code：8429510000
• Production Capacity：1000,Year

Main paramaterOperating mass(kg)23600Bucket capacity4.5Rated load(kg)7000Traction(kN)192Digging force(kN)210Gradeability29Unloading height(mm)3490Unloading distance(mm)1320Min. ground diatance(mm)503Wheel tread(mm)2280Wheelbase(mm)3500Bucket outer turning radius(mm)7320Outline distance(mm)9150*3200*3380EngineModelGuangxi Cummins QSL9.3Max. torque(N·m)1190Rated power(kW)180Rated rotational speed(rpm)2200Running systemGearbox shiftFront:4 gears Rear:3 gearsMax. speed37TypePly ratingSteering angle37,39OtherOperating modelPilot controlSum of three items(s)11Fuel tank(L)330Hydraulic oil tank(L)150
