• Model NO.：DH13K
• Condition：New
• Color：Yellow

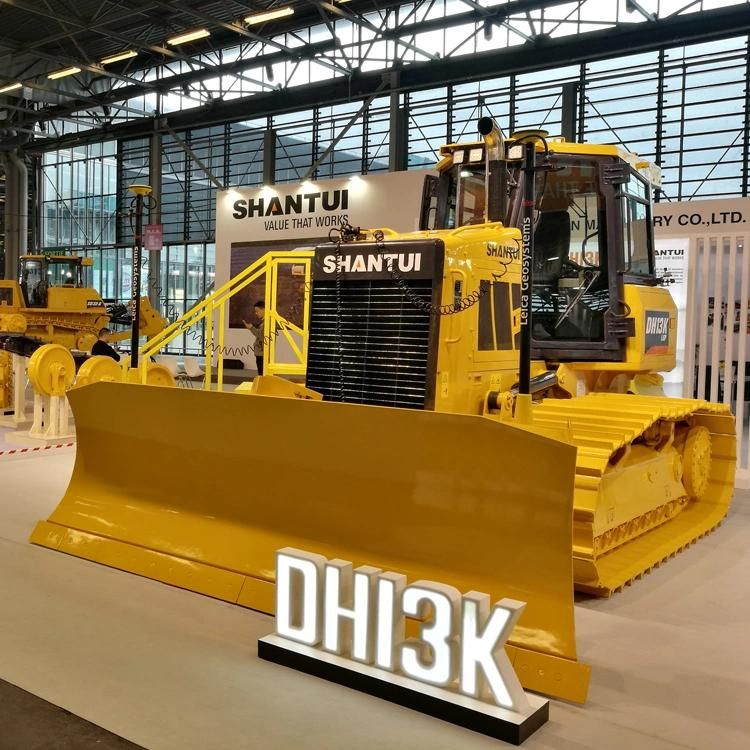

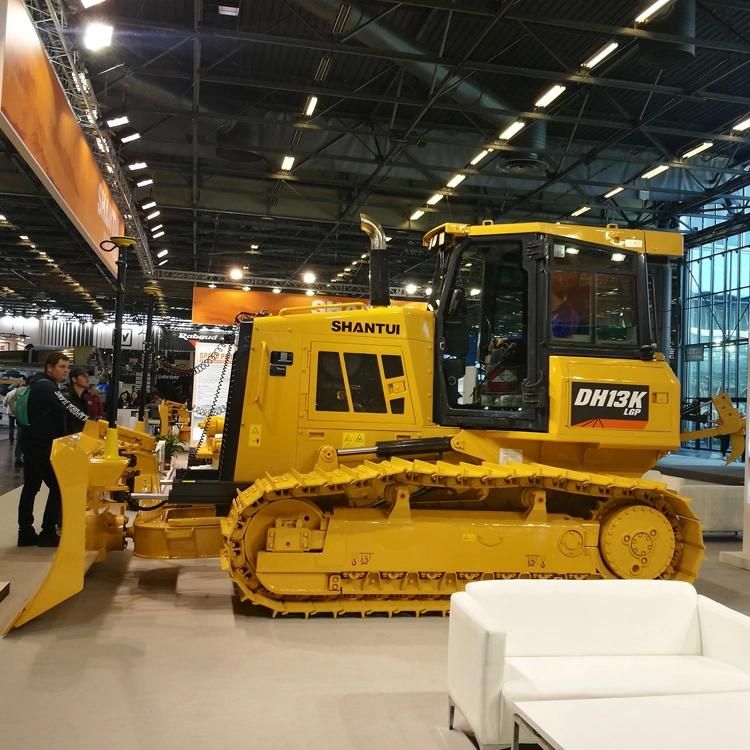

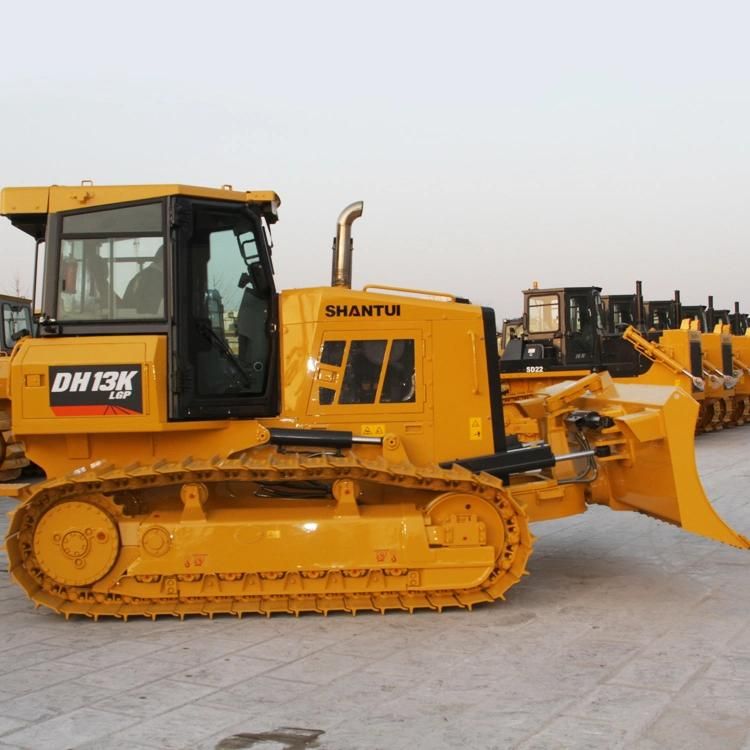

• Product Name：Shantui 130HP Bulldozers (Dh13K)
• Operatiing Weight (Kg)：13700(Track Frame),14900(Ripper)
• Rated Horsepower (Kw/HP)：118,158@2200
• Minimum Turning Radius (mm)：3468
• Ground Pressure (Kpa)：46.3
• Model：Fpt N67
• Transport Package：Nude Package
• Specification：130HP bulldozer
• Trademark：shantui
• Origin：China
• HS Code：8429119000
• Production Capacity：1000pieces,Year

ENGINE  DH13KENGINE FPT N67/Cummins QSB 6.7EMISSION STANDARD Tier4fRATED SPEED 2200rpmGROSS POWER116kW(155hp)NET POWER 116W(155hp)NUMBER OF CYLINDERS 6-104mm-132mm(6-4in.-5in.)5in.)/
 6-107mm-124mm(6-4.2in.-4.9in.)PISTON DISPLACEMENT6.7L(409cu.in.)MAXIMUM TORQUE 750Nm(554lb.-ft.)/1500rpm/
 672Nm(496lb.-ft.)/1500rpmCOOLING SYSTEM Intelligent temperature control fanPOWER TRANSMISSION SYSTEMPOWER TRANSMISSION SYSTEM Double loop electro static pressure drive, intelligent matching load changeSYSTEM OVERFLOW PRESSURE 42500KPa(6162.5psi)TRAVEL SPEED -FORWARD 0~10km/h6.2mph)REVERSE 0~10km/h6.2mph)TRACTIVE FORCE 200kN(45000lb)STEERING CLUTCH Hydraulic motor differential steering, in situ steering, steering with loadSTEERING BRAKE Normally closed brakeFINAL DRIVE One stage straight gear + One stage planetary gearUNDERCARRIAGE SYSTEM XL  LGPTYPE Pivot, balanced beam suspension  Pivot, balanced beam suspensionTRACK TYPE Single-grouser,drySingle-grouser,dryTRACK GAUGE 1930mm(76in.) 2150mm(79in.)WIDTH OF TRACK SHOES 560mm/(22in.) 760mm(30in.)GROUND LENGTH 2640mm(104in.) 2640mm(104in.)GROUND AREA 29568cm²(4583sq.in.)40128cm²(6220sq.in.)TRACK PITCH OF SHOES PER SIDE 4343GROUND PRESSURE 46.3kPa(6.71psi) 35.6kPa(5.16psi)CARRIER ROLLERS 2 Pieces/side 2 Pieces/sideTRACK ROLLERS 7 Pieces/side 7 Pieces/sidePITCH 190mm(7in.) 190mm(7in.)MIN. TURNING RADIUS 3468mm(137in.) 3543mm(139in.)MAINTENANCE CAPACITYFUEL TANK CAPACITY 251L(66gal.)COOLANT CAPACITY 30L(8.0gal.)ENGINE OIL CAPACITY 20L(5.3gal.)DEF TANK 41.5L(11gal.)HYDRAULIC TANK 65L(17gal.)FINAL DRIVE 19L(5gal.)/SideOPERATING WEIGHT XL LGPTRACTION FRAME 13700kg(30203lb.)14300kg(31526lb.)RIPPER  14900KG(32849LB.)--WINCH  14700KG(32408LB.)15300kg(33731lb.)
