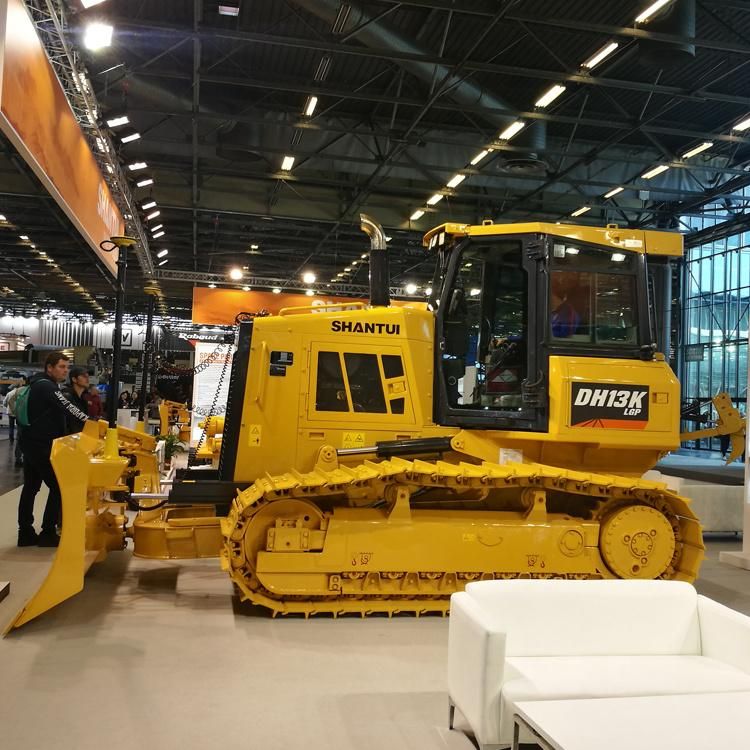

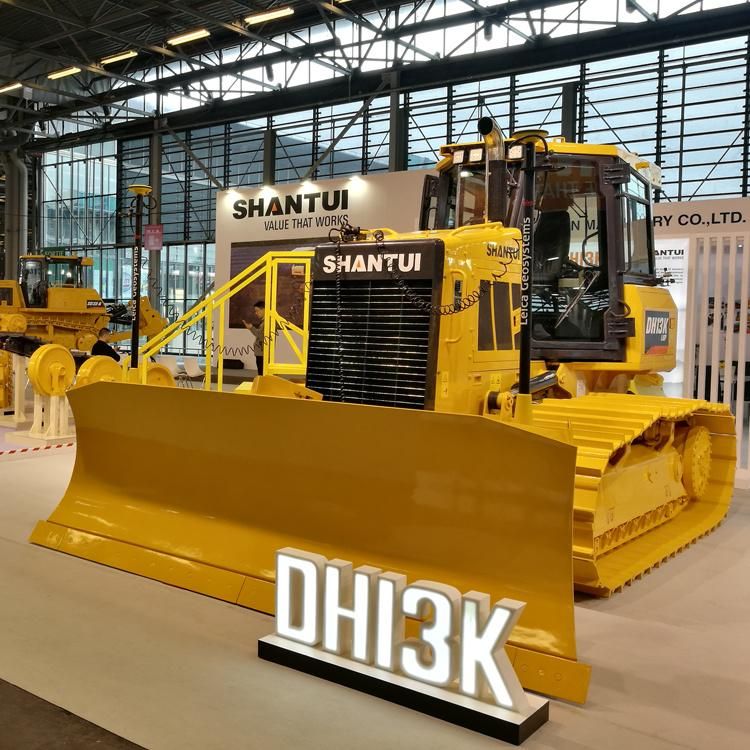

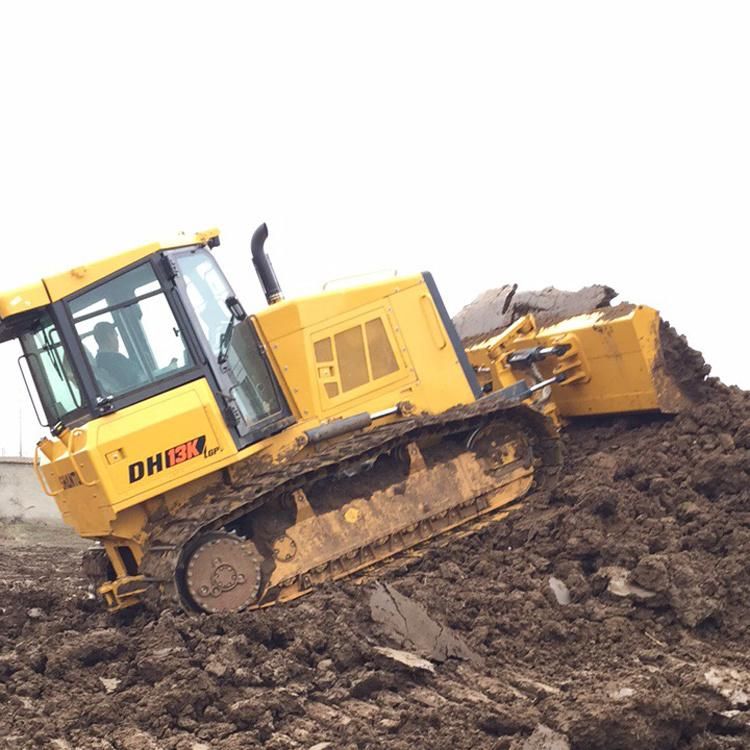

PRODUCT | DH13B2 |
PERFORMANCE PARAMETERS | Operatiing Weight (kg) | 13400(XL); 13920(LGP) |
Net horsepower (kw/hp) | 97/130@2200 |
Minimum turning radius (mm) | 3324 |
Ground pressure (kpa) | 39.9(XL); 33.2/30.6(LGP) |
ENGINE | Model | Weichai WP6 |
Emission | China Stage II |
Type | water-cooled, in-line, 4-cycle, direct injection and turbocharged |
No.of cylinders×Bore×stroke (mm×mm) | 6×105mm×130mm |
Piston displacement (L) | 6.75 |
Rated horsepower (kw/hp/rpm) | 105/141@2200 |
Maximum torque (N.m/r/min) | 564 / 1400-1600 |
DIMENSIONS | Length (mm) | 4924(Traction frame) |
Width (mm) | 3380 |
Height (mm) | 3047 |
TRAVELING PERFORMANCE | Forward/Reverse (km/h) | 0~10 |
Gradeability (deg) | 30 |
Clearance (mm) | 365 |
TRANSMISSION | Traveling pump(Linde) | Variable displacement piston pump, maximum flow 105ml/r |
Traveling motor(Linde) | Variable displacement piston motor, maximum flow 165ml/r |
Coupling | Elastic coupling |
Final driver | 1 level straight gear + 1 level planetary deceleration |
Brake | Normally closed brake,wet friction disc, compressed with disc spring, hydraulic separation |
UNDERCARRIAGE | Suspension | Pivot balanced beam, suspended structure of equalizer |
Track gauge (mm) | 1780(XL); 2000(LGP) |
Shoe width (mm) | 560(XL); 700/760(LGP) |
Track length on ground (mm) | 2640 |
Number of shoes (each side) | 40 |
Pitch (mm) | 190 |
Carrier rollers (each side) | 2 |
Track rollers (each side) | 7 |
TANK CAPACITY | Fuel tank capacity (L) | 238 |
Hydraulic oil tank capacity (L) | 55 |
Transmission hydraulic tank capacity (L) | - |
Working equipmnet | Blade width (mm) | 3380 |
Blade height (mm) | 1306 |
Blade capacity (m³) | 3.42 |
Ripper(Optional) | Ripper type | 3-shank |
Weight(kg) | 1035 |
Max. digging depth(mm) | 500 |
