• Model NO.：STr13
• Condition：New
• Color：Yellow
• Product Name：130HP Shantui Bulldozer (Str13)
• Engine Model：Shangchai Sc8d143G2b1
• Blade Width/Height (mm)：2908,930
• Operating Weight (Kg)：14500
• Transport Package：Nude Package
• Specification：5470*2908*2950mm
• Trademark：shantui
• Origin：Shandong, China
• HS Code：8429521200
• Production Capacity：1000

Basic Info.

Model NO. STr13 Condition New Color Yellow Product Name 130HP Shantui Bulldozer (Str13) Engine Model Shangchai Sc8d143G2b1 Blade Width/Height (mm) 2908/930 Operating Weight (Kg) 14500 Transport Package Nude Package Specification 5470*2908*2950mm Trademark shantui Origin Shandong, China HS Code 8429521200 Production Capacity 1000

Product Description

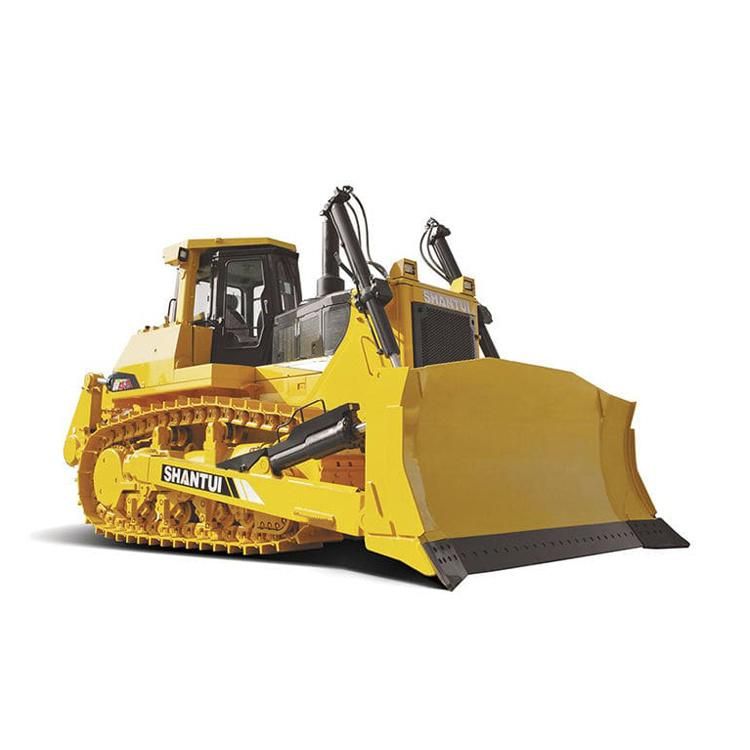

130HP shantui Bulldozer (STR13)Features

It is equipped with the engine of high power, low fuel consumption, and high torque reserve and the power shift transmission, featuring high working efficiency, high performance reliability, and flexible and convenient operations.

1.Shangchai SC8D143G2B1 turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve coefficient, with the rated power up to 95.5kW.

2. The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating efficiency.

3.The large gilled tube radiator is adopted to effectively guarantee the normal running under high environmental temperature and ease the cleaning.

4.The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.

5. The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.

6.The chassis system features high durability and stability and good traction performance.

7. The cab, operating devices, and instrument assembly features high comfort and convenience.

8.The trimming blade capable of large-angle forward and backward tilting adopts symmetrically arc-shaped double-faced structure to adapt to double-faced operations. The internally arranged vertical plate weldments guarantee the strength for all trimming blade parts to collect more handled material at one time and adapt to various complicated working environments.

9. The two side beams and the crossbeam for the H-shaped blade holder are welded from square steel tubes and the front and rear of crossbeam are welded from integral angle blocks to guarantee the high strength of blade holder.

Specification

Overall dimensions(mm)	5470×2908×2950
Engine model	Shangchai SC8D143G2B1
Track plate width (mm)	460
Blade width/height (mm)	2908/930
Operating weight (kg)	14500
Net power/rated speed (kW/rpm)	95.5±5%/1900
Ground pressure(Mpa)	0.057
