• Model NO.：XG4221T
• Engine Power：74~147kw
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow
• Rated Speed：1850rpm
• Rated Power：235kw
• Engine：Weichai
• Blade Height：1590mm
• Blade Width：4130mm
• Ground Pressure：0.104
• Minimum Turning Radius：3940
• Operating Weight：34390kg
• Productivity：480
• Transport Package：Nude
• Specification：6603*4130*3708.5mm
• Trademark：XGMA
• Origin：China
• HS Code：84291190
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. XG4221T Engine Power 74~147kw Certification ISO9001: 2000 Condition New Color Yellow Rated Speed 1850rpm Rated Power 235kw Engine Weichai Blade Height 1590mm Blade Width 4130mm Ground Pressure 0.104 Minimum Turning Radius 3940 Operating Weight 34390kg Productivity 480 Transport Package Nude Specification 6603*4130*3708.5mm Trademark XGMA Origin China HS Code 84291190 Production Capacity 1000 Units/Year

Product Description

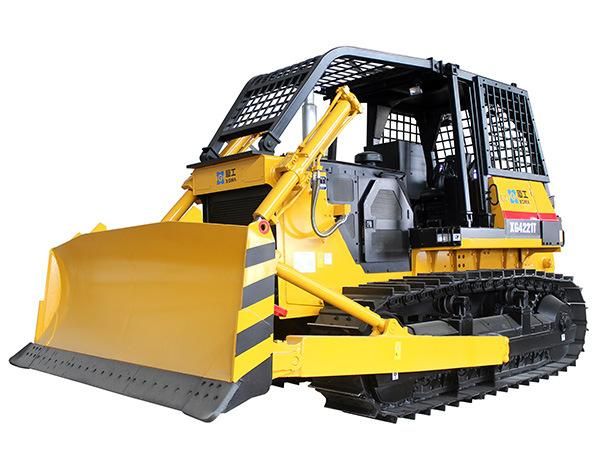

Good quality XGMA Bulldozer

1.A diesel engine with turbocharger and fuel-feeding system of PT pump is adopted as the power supplier for the machine, with its characteristics of low fuel consumption, high power performance and large torque reserve.

2.The diesel engine matches very well with the hydraulic torque converter and the transmission system, making a wide rotational speed range for machine traveling in high efficiency. Output power can be achieved perfectly, with the control of shifting on the transmission gearbox.

3.A hydraulic drive system is adopted for the working device, with its characteristics of simple structure, flexibility and reliability.

4.The hydraulic-assisting mode is adopted in the control system, making the machine can be operated easily.

5.A mode of hanging balance beam is adopted in the traveling system, making the machine works well in rugged areas system to ensure machine performance in the harsh environment of the rainforest.

6.Using a special cooling Mechanical winch and hydraulic winch can choose to adapt to different operational requirements.




Performance Parameters

DescriptionUnitXG4321LEngineModeltype NTA855-C360Rated speedrpm2000Rated powerkW235Fuel consumptiong/kW.h213Travel
       SpeedForwardIkm/h0~3.6IIkm/h0~6.6IIIkm/h0~11.5ReverseIkm/h0~4.4IIkm/h0~7.8IIIkm/h0~13.5Work
       EquipmentBlade heightmm1590Blade widthmm4130Max. depthmm560Max. liftmm1560Max. tilt adjustmentmm1000Pitch adjustment 55Ripper
       (Optional)Teeth 1 or 3Max. digging depthmm842(3 teeth)Max. liftmm883(3 teeth)Weightkg5350(3 teeth)SpecificationMin. ground clearancemm500Ground pressureMpa0.104Min. turning radiusmm3940Grade ability°30Operating weightkg34390Productivitym3/h480Overall
       Dimensions
       (LxWxH)Basicmm6603x4130x3708.5With ripper and ROPSmm8916×4130×3708.5(1tooth)
       8586×4130×3708.5(3teeth)
