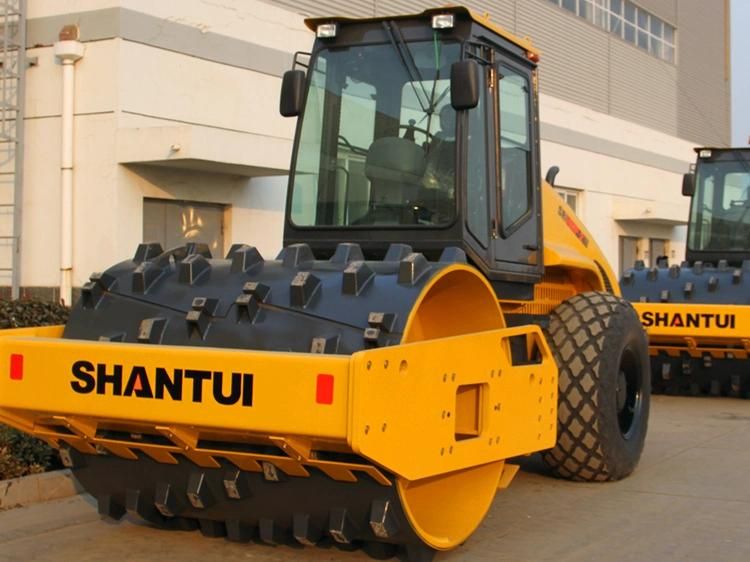

Sr14 14 Tons Shantui Single Drum Vivratory Road Roller with AC Cabin
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Wheeled
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Slot Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：SR14
- Travel Speed：30cm,s
- Centrifugal Force：27KN
- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Operating Weight (Kg)：14000
- Exciting Force (Kn)：310,200
- Vibration Frequency (Hz)：30,35
- Transport Package：Nude Package
- Specification：5909*2305*3130mm
- Trademark：Shantui
- Origin：China
- HS Code：8429401100
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. SR14 Travel Speed 30cm/s Centrifugal Force 27KN Certification CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Operating Weight (Kg) 14000 Exciting Force (Kn) 310/200 Vibration Frequency (Hz) 30/35 Transport Package Nude Package Specification 5909*2305*3130mm Trademark Shantui Origin China HS Code 8429401100 Production Capacity 50000PCS/YearProduct Description
Feature:Driving/Riding Environment
The drive mode adopts hydrostatically driven traveling and (front and rear drums) double drive to achieve stronger gradeability. The speed changeover is electronically controlled to realize easy, simple, and comfortable operations. The two-speed stepless speed regulation guarantees the working at most appropriate speed under diversified working conditions.
The articulated full-hydraulic steering system features flexible and convenient steering. The steering gear adopts U.S. Eaton product and incorporates FK combination valve to achieve high flow, low steering force, and overload protection and cushioning function.
The brake system composed of the brakes on drive axle and vibratory drum reducer and the hydrostatic brake of closed type hydraulic system incorporates the service brake, parking brake, and emergency brake functions to guarantee the driving safety and reliability.
The all-new streamlined design guarantees smooth, neat, and elegant machine modeling.
With luxury upholstery, the cab in polyhedral structure features broad visual field and large space.
Parameter:

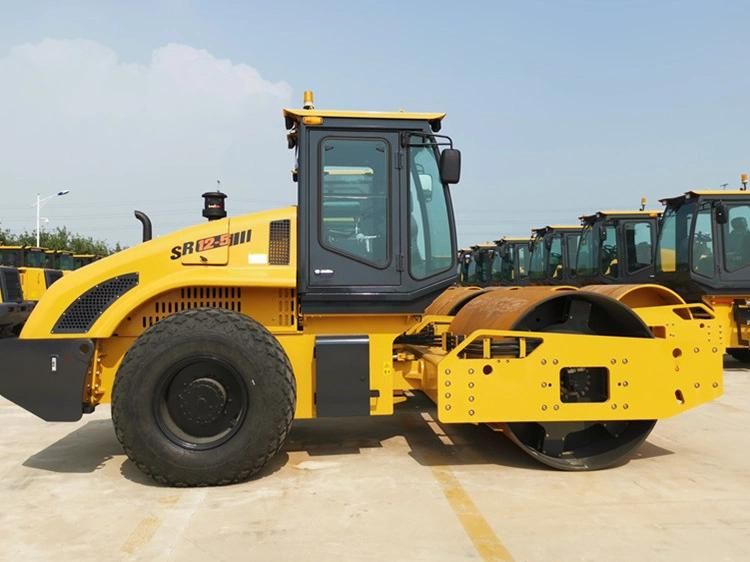

| Parameter name | SR12-5 |
| Performance parameters | |
| Operating weight (Kg) | 12000 |
| Exciting force (KN) | 290/200 |
| Vibration frequency (Hz) | 30/35 |
| Nominal amplitude (mm) | 2/1.0 |
| Ground pressure (KPa) | - |
| Gradeability (%) | 48 |
| Engine | |
| Engine model | WP6G140E22 |
| Rated power/rated speed (kW/rpm) | 105/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 5934*2275*3214 |
| Driving performance | |
| Forward speed (km/h) | F1:0-5.3,F2:0-9.9 |
| Reversing speed (km/h) | R1:0-5.3,R2:0-9.9 |
| Chassis System | |
| Wheelbase (mm) | - |
| Tank capacity | |
| Fuel tank (L) | 230 |
| Working device | |
| Compacting width(mm) | 2130 |
