• Model NO.：XP163
• Operating Weight：16000kg
• Number of Tyres：4 Front 5 Rear
• Transport Package：Nude, Suitable for Shiping
• Specification：4770*2210*3442 mm
• Trademark：Oriemac
• Origin：Jiangsu, China
• HS Code：8429401900
• Production Capacity：5000PCS,Year

Type

Unit

XP163

Operating weight

kg

11100

Max operating weight

kg

16000

Travel Speed, Forward

km/h

4.2 , 8.2 , 17.4

Travel Speed, Reverse

Km/h

4.2, 8.2

Gradeability in theory

%

30

Minimum outer turning radius

mm

7230

Min ground clearance

mm

250

Compacting width

mm

2055

Overlapping of front&rear tyre

mm

30

Tire specification

9.0-12-20PR

Number of tyres

4 front & 5 rear

Ground pressure

kPa

200-400

Engine Model

YC4A125Z

Rated rotating speed

r/min

2200

Rated power

kW

92

Engine oil consumption

g.kw/h

≤230

Dimensions(LxWxH)

mm

4770x2210x3442

Fuel tank capacity

L

130

Hydraulic oil tank capacity

L

60

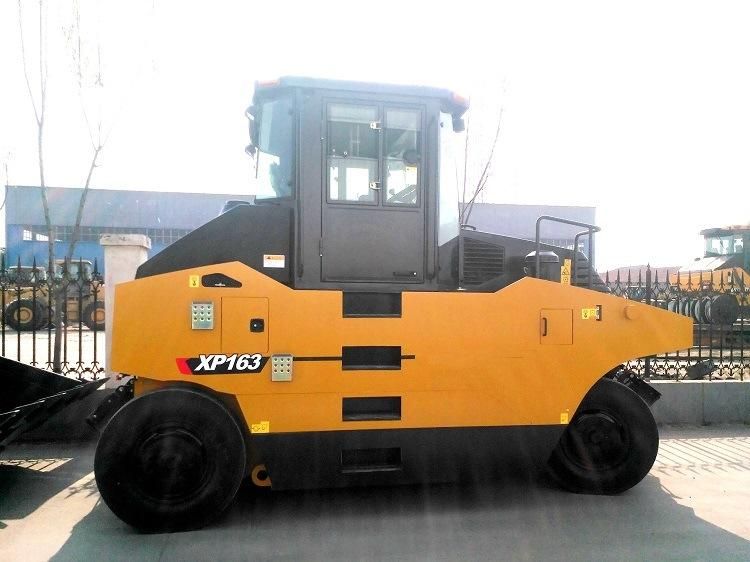

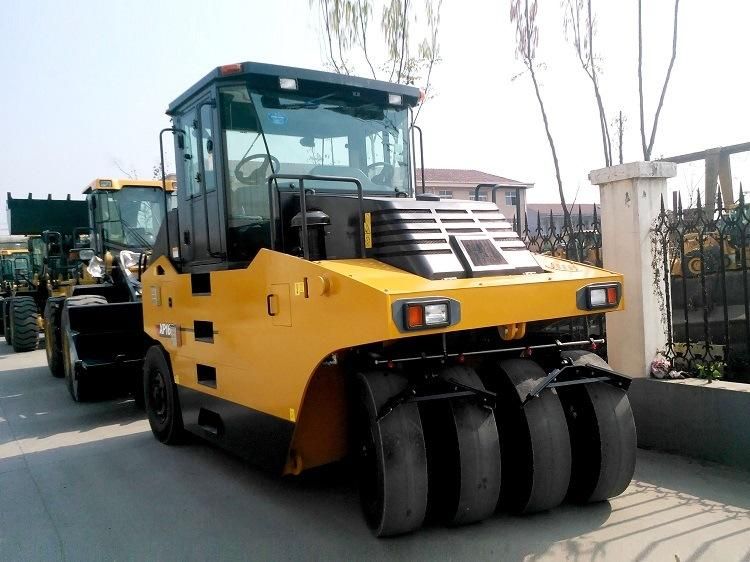

Product Pictures
