China Top Brand Shantui SD26s (LGP) 260HP Bulldozer with Weichai Engine
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：SD26S(LGP)
- Condition：New
- Color：Yellow
- Ground Pressure (Kpa)：77
- Transport Package：Nude Package
- Specification：5495*3725*3402
- Trademark：Shantui
- Origin：China
- HS Code：8429119000
- Production Capacity：50000PCS,Year
Description
Basic Info.
Model NO. SD26S(LGP) Condition New Color Yellow Ground Pressure (Kpa) 77 Transport Package Nude Package Specification 5495*3725*3402 Trademark Shantui Origin China HS Code 8429119000 Production Capacity 50000PCS/YearProduct Description
China top brand Shantui SD26s (LGP) 260HP Bulldozer with Weichai Engine
Easy maintenances
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt corrugated pipes for protection and deconcentrators for branching, featuring high protection grade.
The openable large-space side hoods make the repairs and maintenance easier.
All lubricating and maintenance points of machine are directed to the outer side of machine body to achieve convenient and rapid maintenances.
| Parameter name | SD26 | SD26E(LONG TRACK) | SD26F(FOREST LOGGING) | SD26S(LGP) |
| Performance parameters | ||||
| Operating weight (Kg) | 23400 | 24600 | 24700 | 25700 |
| Ground pressure (kPa) | 77 | 72 | 66 | 41 |
| Engine | ||||
| Engine model | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 | WEICHAI WP12 |
| Rated power/rated speed (kW/rpm) | 206/1800 | 206/1800 | 206/1800 | 206/1800 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 5495*3725*3402 | 5495*3725*3402 | 5495*3725*3402 | 6225*4365*3402 |
| Driving performance | ||||
| Forward speed (km/h) | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 | F1: 0-3.8 F2:0-6.8 F3:0-11.7 |
| Reversing speed (km/h) | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13.9 | R1:0-4.5 R2:0-8.1 R3:0-13. |

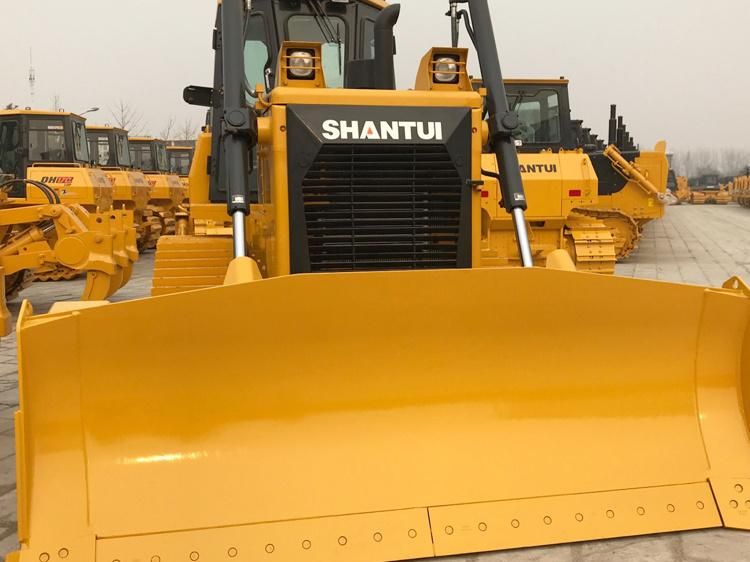

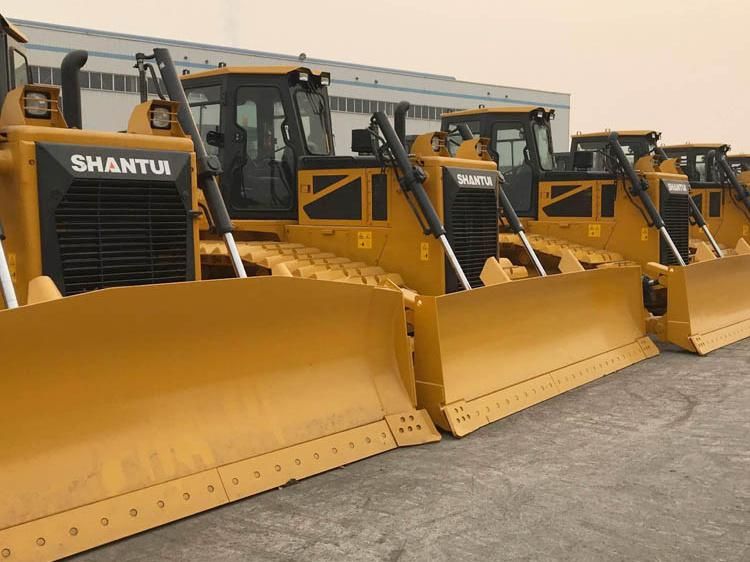

Photo:
