• Model NO.：SYG5418THB
• Feeding Height：1400mm
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow
• Total Weight：41000kg
• Length：13850mm
• Width：2500mm
• Height：4000mm
• Transport Package：Nude
• Specification：CE, ISO, GOST
• Trademark：Oriemac
• Origin：Hunan, China
• Production Capacity：1000PC,Month

Basic Info.

Model NO. SYG5418THB Feeding Height 1400mm Vibrating Amplitude 2.6mm Certification ISO9001: 2000, CE Condition New Color Yellow Total Weight 41000kg Length 13850mm Width 2500mm Height 4000mm Transport Package Nude Specification CE, ISO, GOST Trademark Oriemac Origin Hunan, China Production Capacity 1000PC/Month

Product Description

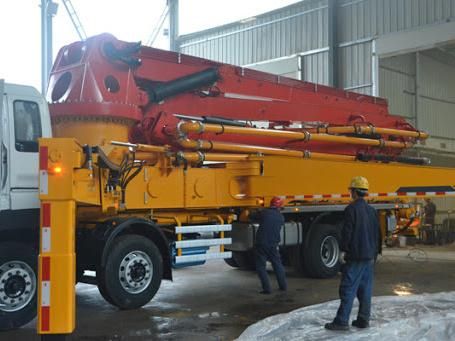

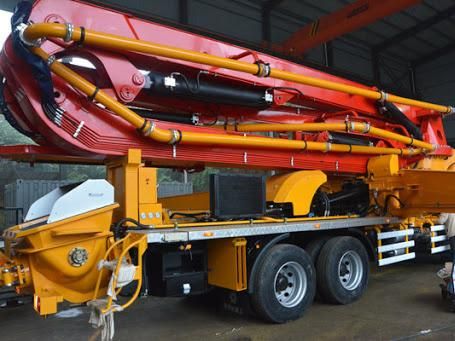

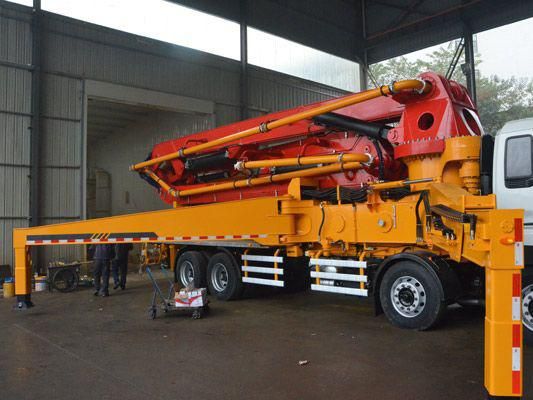

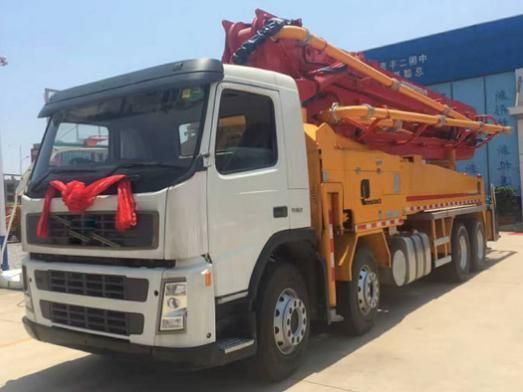

Hot Sale High Quality 52m Concrete Pump Truck for sale(SYG5418THB)

5 sections RZ form Boom, highest flexibility;
X outrigger, easy and fast operation, OSS function;
High performance SYMC control unit and fine definition SYLD display;
Automatic retraction of concrete piston, easy replacement and maintenance friendly;
Electro-hydraulic buffer, differential pressure induction, open loop hydraulic system, low operation temperature; Less impact and high reliability.

SYG5530THB 53 truck-mounted concrete pump has 53m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 53m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.

Length	13760mm(45′ 2″)	13850mm
Width	2500mm(8′ 2″)	2500mm
Height	4000mm(13′ 1″)	4000mm
Dead weight	41000kg(90387 lbs)	40490kg
