Concrete Asphalt Road Paving Machinery (RP601L/RP701L)
Evangel Industrial (Shanghai) Co., Ltd.- Type：Paver
- Object：Asphalt Concrete Pavement
- Moving Type：Mobile
- Mixing Method：Continuous Drum
- Automatic Grade：Automatic
- Product Capacity：40～400t,h
Base Info
- Model NO.：(RP601L,RP701L)
- Certification：ISO9001: 2000
- Condition：New
- Size：6096*2570*3832
- Transport Package：Seaworthy Packing
- Specification：40hq
- Trademark：EVANGEL
- Origin：Xuzhou, China
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. (RP601L/RP701L) Certification ISO9001: 2000 Condition New Size 6096*2570*3832 Transport Package Seaworthy Packing Specification 40hq Trademark EVANGEL Origin Xuzhou, China Production Capacity 20sets/MonthProduct Description

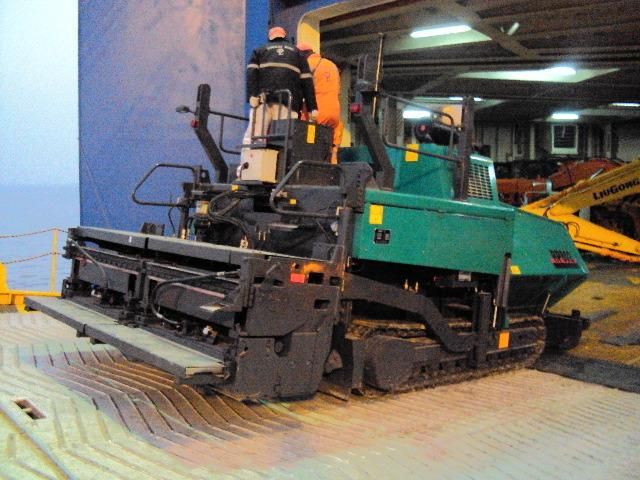

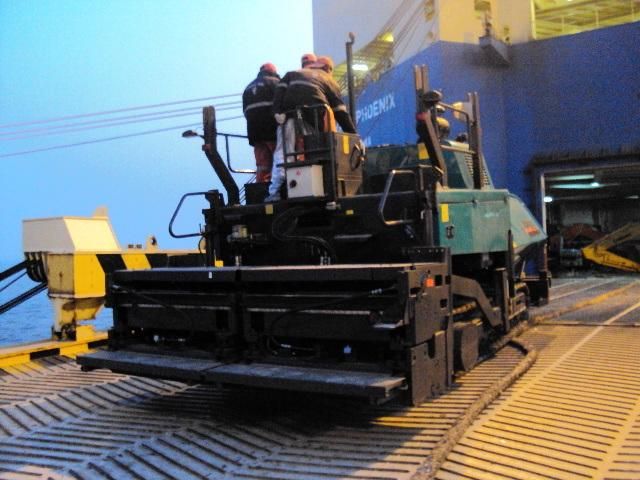

concrete asphalt road paving machinery (RP601L/RP701L)Main features:
RP601L, RP701L are elaborately designed with advanced VOGELE pave technology. It uses world advanced techniques: Fully hydraulic driven, constant velocity and automatic control system. Centralized lubricating system. Electric-heating system and the conveyor and auger could be adjusted manually or automatically. The working width is from 2.5m to 7m; The paving thickness could be infinitely adjusted from 0-300m. All the control components are on the control board that can be movable to right and left side. With the main switch and advanced automatic leaving system, this type of pave has high automation, easy and convenient operation, good quality and high efficiency.
It could be widely used on paving for base and surface for road, airport, causeway, port, square and an ideal equipment for working with asphalt concrete.
| Item | Unit | RP451L | RP601 | RP601L | RP701L |
| Basic Working Width | m | 2 | 2.5 | 2.5 | 2.5 |
| Max Working Width | m | 4.5 | 6.0/7.0 | 6 | 7 |
| Max Paving Thickness | mm | 150 | 150 | 300 | 300 |
| Paving Speed | m/min | 0~13 | 0~11 | 0~18 | 0~18 |
| Traveling Speed | km/h | 0~13 | 0~3.2 | 0~18 | 0~18 |
| Theoretical Productivity | t/h | 240 | 300 | 400 | 400 |
| Hopper Capacity | t | 12 | 13 | 20(paving shift) | 20(paving shift) |
| Gradient Ability | % | 20(paving shift) | 20 | 13 | 13 |
| Smoothness | mm/3m | 3 | 3 | 3 | 3 |
| Slope Leveling Tolerance | % | ±0.02 | ±0.03 | ±0.02 | ±0.02 |
| Crown adjust | % | 0~3 | 0~+3 | 0~+3 | 0~+3 |
| Tamper revolution | r/min | 0~1500 | 0~1500 | 0~1500 | |
| Tamper Amplitude | mm | 4/8 | 4 | 4 | |
| Engine Type | 4JR3G1(Shangchai) | D4114ZG2B (Shangchai) | D4114ZG2B (Shangchai) | D4114ZG2B (Shangchai) | |
| Rated power | kw | 55 | 100 | 100 | 100 |
| Rated revolution | rpm | 2200 | 2400 | 2400 | 2400 |
| Weight | t | 10.5 | 17.4~20.5 | 15.3~19 | 15.3~19 |
| Overall Dimension | mm | 5670×2070×3590 | 6400×2500×3830 | 6096×2580×3832 | 6096×2580×3832 |
