• Model NO.：XP163
• Travel Speed：35cm,s
• Centrifugal Force：30.5KN
• Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Color：Yellow
• Operation Weight：16000kg
• Engine：92kw Yc4a125z
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XP163 Travel Speed 35cm/s Centrifugal Force 30.5KN Certification EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008 Condition New Color Yellow Operation Weight 16000kg Engine 92kw Yc4a125z Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/Month

Product Description

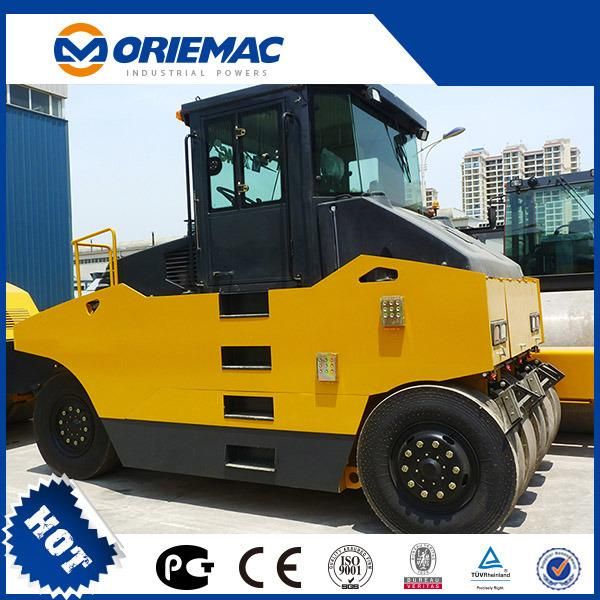

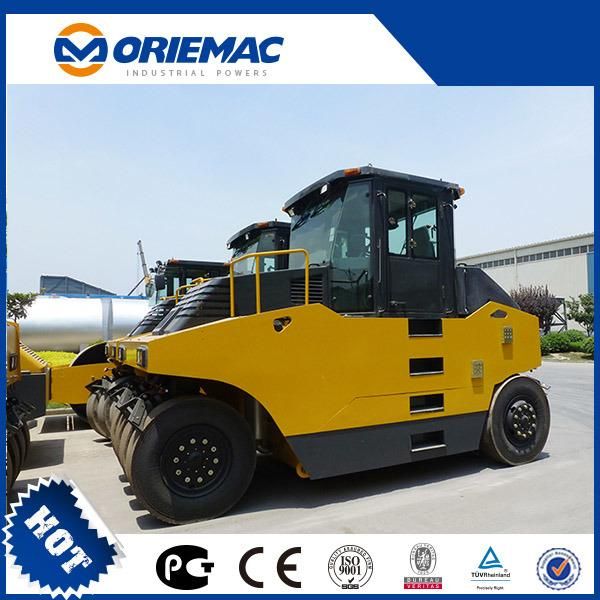

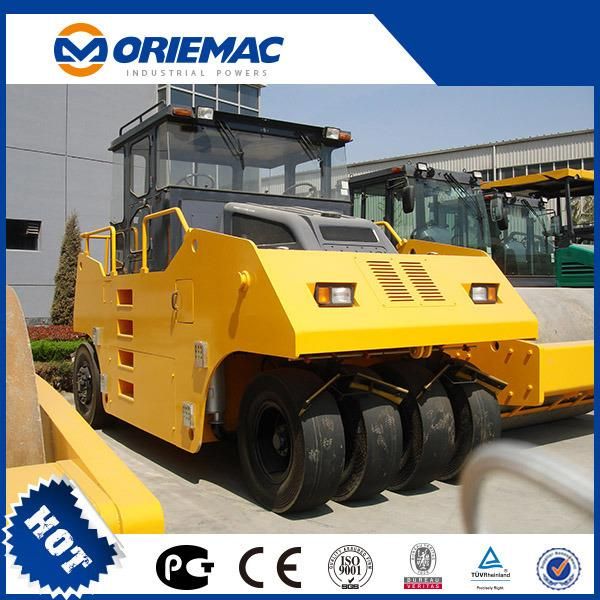

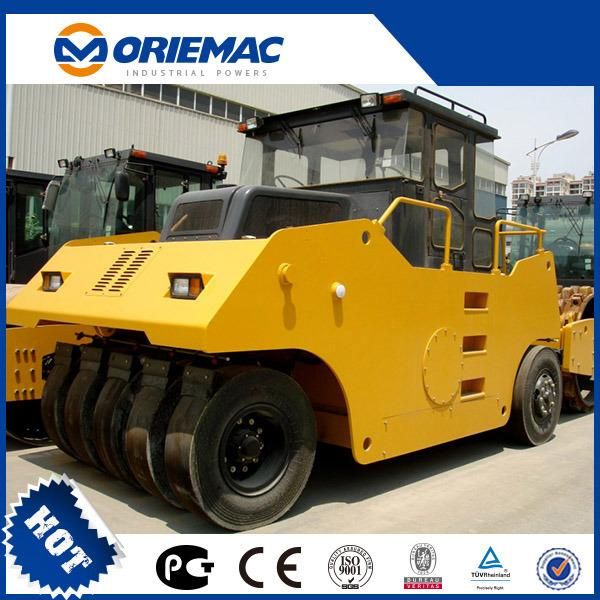

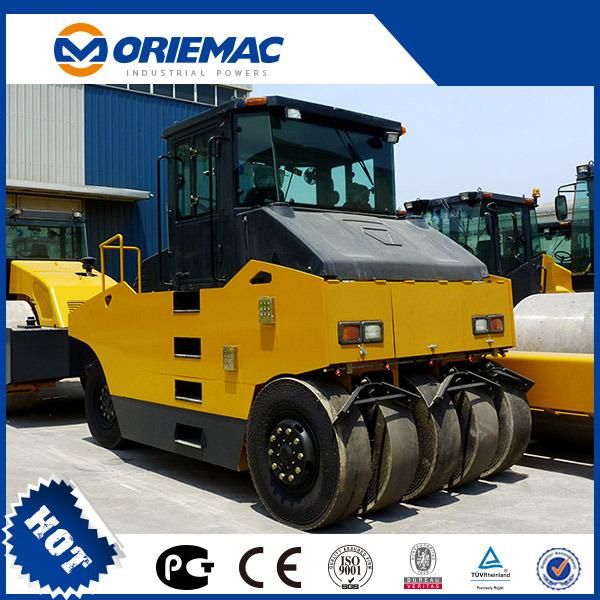

16000kg tyre compactor

1. Operation weight: 16000kg
2. Ground pressure: 200-400Kpa
3. Tyre abount: Front 4 Rear 5
4. Engine: 92kw YC4A125Z

P163/XP203 tyre compactor is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.
Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts the gearbox with synchronizer, with 3 forward gears and 2 reverse gears, which can respectively meet the requirements of compaction and site transfer, featuring flexible operation and comfortable handfeel, and greatly reducing the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road. When the machine works on rough road, the front wheels swing mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
Safety and reliability
The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, features durability and reliability, ensuring the safety performance of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.

Model	Unit	XP163
Min. working weight	kg	11100
Max. working weight	kg	16000
Ground pressure	kPa	200-400
Travel speed	km/h
	Speed I	4.2
	Speed II	8.2
	Speed III	17.4
	Reverse speed I	4.17
	Reverse speed II	8.2
Theoretical gradeability	%	20
Min. external turning radius	mm	7230
Min. ground clearance	mm	250
Compaction width	mm	2055
Roller overlap amount	mm	30
Tyre specification		9.00-20-12PR
Amount		Front 4 Rear 5
Engine model		YC4A125Z
Type		Water cooling, pressurizing
Rated power	kw @2200 r/min	92
Engine oil consumption	g.kw/h	≤230
Hydraulic oil tank capacity	L	60
Diesel oil tank capacity	L	130
Overall length	mm	4715
Overall width	mm	2055
Overall height	mm	3258
