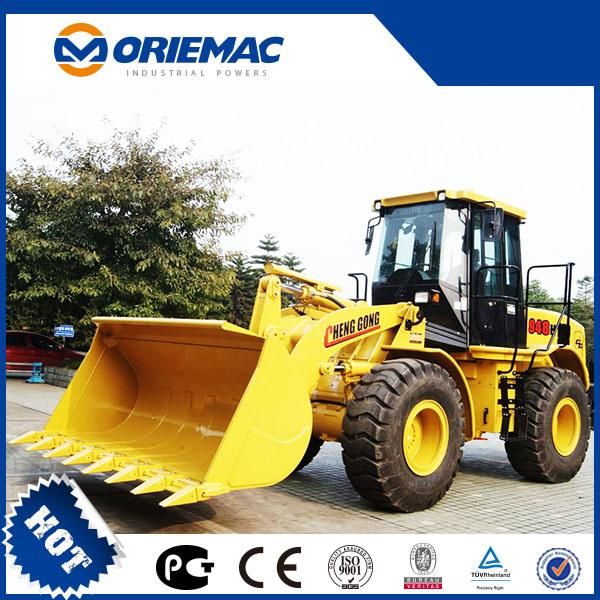

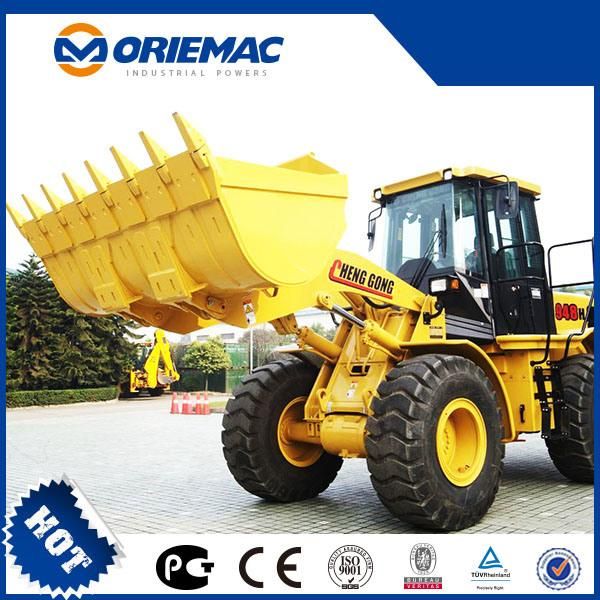

Chenggong Small 4ton Front Wheel Loader for Sale Cg948h
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Certification：TUV, UL, ISO, RoHS, CE, ISO9001: 2000
- Condition：New
- Rated Load：4ton
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
Base Info
- Model NO.：CG948H
- Type：Medium-sized Loader
- Brand Name：Chenggong
- Model Number：Cg948
- Backet Capacity：2.3cbm
- Transport Package：Nude Package
- Specification：ISO, CE, GOST
- Trademark：Chenggong
- Origin：China(Mainland), Sichuan
- Production Capacity：1500 Units, Year
Description
Main Specifications
CG948H
Engine Model
QSB6.7
Rated power
( KW/rpm )
119/2200
( hp/rpm )
159.6/2200
Rated Load Weight ( kg/Ib )
4000/8818
Max. Dump Clearance (45°Discharge)(mm/ft'in')
2895/9'5"
Dump Reach (Max. Dump Clearance) (mm/ft'in')
960/3'1"
Max. Forward speed (km/h/mph)
37/23
Min. Turning Radius (mm/ft'in')
5200/17'1"
Action time of working Device (s)
9.8
Lifting time of working Device (s)
4.8
Bucket Capacity (m ³/yd ³)
2.3/3.0
Breakout Force (kN/kip)
120/27
Overall Size (L*W*H)(mm/ft'in")
7400×2800×3485
24'2" ×9'2" ×11'4"
Operating Mass (kg/Ib)
13200/2910.6
Wheelbase (mm/ft'in")
2900/9'5"
