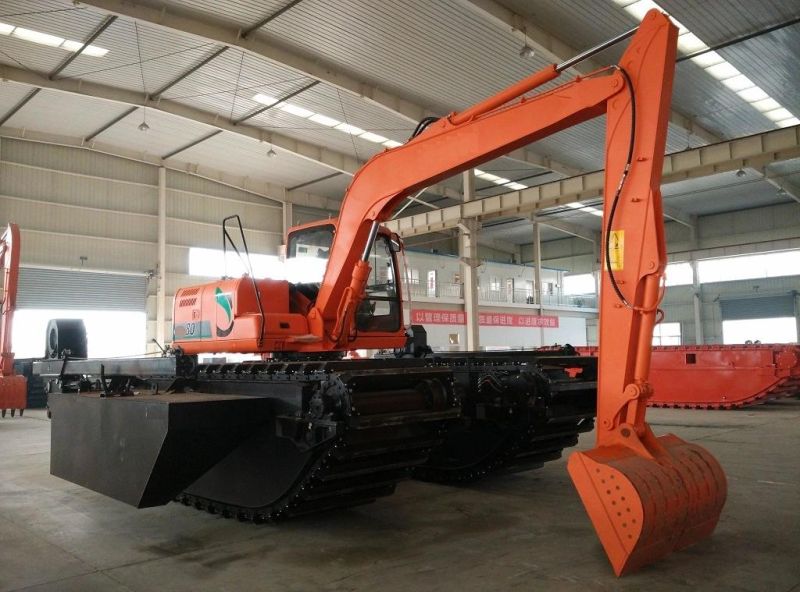

Heking Brand Amphibious Excavator Hk150SD
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：0.1~0.5m³
Base Info
- Model NO.：HK150SD
- Size：Medium-Sized
- Certification：CE, ISO9001: 2000
- Condition：New
- Transport Package：Nude Package
- Specification：ISO, CE, GOST
- Trademark：Heking
- Origin：China(Mainland), Anhui
- Production Capacity：1500 Units, Year
Description
15000KGStandard bucket capacity 0.25m³ Boom length 4500mm Arm length 3000mm Chains 2 Engine model Yammar 4TNV98T Type Inter-cooled turbo Power 56.5kW/2200rpm Max.Torque 301N m / 1650rpm No.Of cylindar 4 Displacement 3.319L Type Variable plunger pump Max.Displacement 90cm3/r Working pressure 26.5Mpa Slew motor Fixed plunger Travel motor Variable plunger Slew speed 12rpm Min.Slew radius 2257mm Max.Travel speed high/low 3.79/2.33km/h Gradeability 35° Tracktive effort 112.2kN Max.Digging force of bucket 49kN Max.Digging force of arm 43.4kN Ground pressure 0.13kg/cm2 Fuel tank capacity 300L Hydraulic tank capacity 210L Item Standard(mm) Length of pontoon 6640 Ground clearance of platform 1474 Overall height 3294 Boom transport height 3294 Overall length 9009 Rear swing radius 2130 Track gauge 2050-3100 Overall width 3500-4548 Width of pontoon 1298 Min.Ground clearance 717 Height of pontoon 1420 Width of upper structure 2207 Item Standard(mm) Max.Digging reach 8996 Max.Digging reach on ground 8772 Max.Digging depth 5879 Max.Vertical digging depth 4796 Max.Digging height 8443 Max.Dumping height 6457 Min.Front slewing radius 3524
