• Model NO.：XS142J
• Travel Speed：40cm,s
• Centrifugal Force：40KN
• Certification：CS, CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Road Roller Model：China Brand
• Model：Xs142j,Xs162j
• Transport Package：Nude
• Specification：ISO, CCC
• Trademark：Oriemac
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：10000PCS,Month

Basic Info.

Model NO. XS142J Travel Speed 40cm/s Centrifugal Force 40KN Certification CS, CE, ISO 9001:2000, ISO 9001:2008 Condition New Road Roller Model China Brand Model Xs142j/Xs162j Transport Package Nude Specification ISO, CCC Trademark Oriemac Origin Jiangsu, China HS Code 84294019 Production Capacity 10000PCS/Month

Product Description

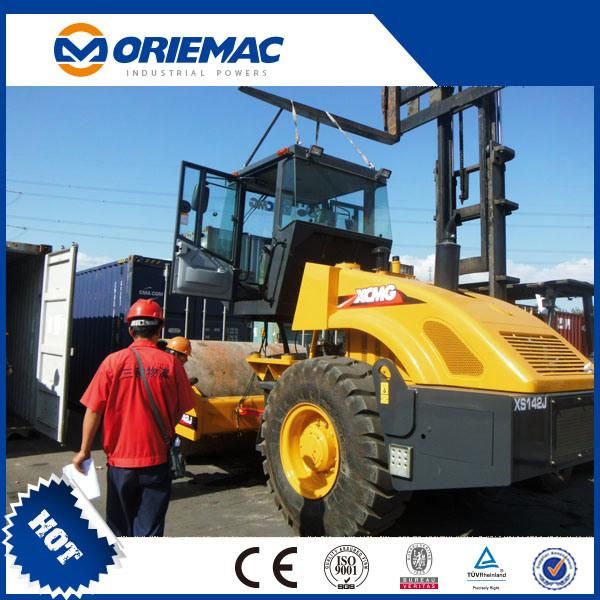

XS142J/XS162J/XS182J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
Performance feature

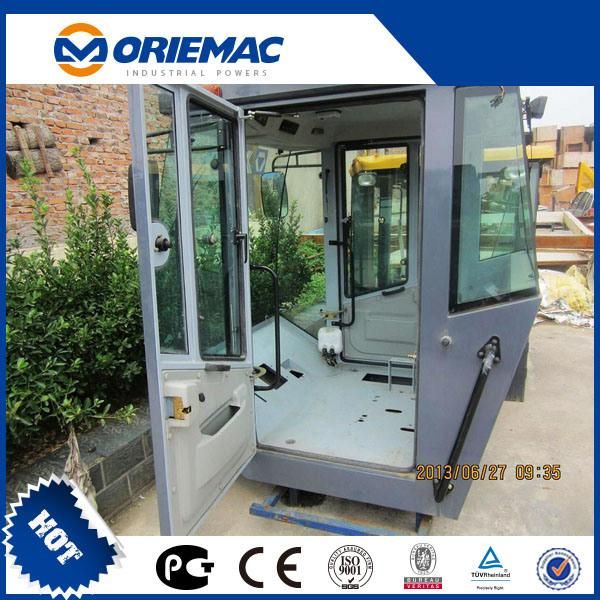

The spacious and bright cab features wide view and comfort.
Simple operation
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance.
Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16t, 18t). All those have a long service life, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmental friendly power
Shanghai Diesel Engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
Optional configuration
The integral convex block drum, split convex block drum, and the cab with air conditioning.
Convenient maintenance
The engine cover is easy to open, and the opening angle is large, which make the maintenance part accessible.
The high positioned air intake prolongs the maintenance interval of the air filter.

Model	Unit	XS142J
Operating weight	kg	14000
Weight on front drum	kg	7000
Static linear pressure	N/cm	322
Speed range	km/h
Speed I		2.7
Speed II		4.8
Speed III		10.5
Theoretical gradeability	%	30
Min. external turning radius	mm	6800
Steering angle	°	±30
Oscillating angle	°	±11
Vibration frequency	Hz	28
Nominal amplitude (high/low)	mm	1.9/0.95
Excitation force (high/low amplitude)	kN	274/137
Engine model		SC5D125G2B1
Type	Water cooled, pressurized	Water cooled, pressurized
Max. power	kW	92@2200r/min
Engine oil consumption	g/kW.h	230
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	180
