• Model NO.：Xs222e
• Travel Speed：35cm,s
• Centrifugal Force：30.5KN
• Certification：CE, RoHS, ISO 9001:2000
• Condition：New
• Color：Yellow
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：ORIEMAC
• Origin：Jiangsu, China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. Xs222e Travel Speed 35cm/s Centrifugal Force 30.5KN Certification CE, RoHS, ISO 9001:2000 Condition New Color Yellow Transport Package Nude, Suitable for Shiping Specification ISO Trademark ORIEMAC Origin Jiangsu, China Production Capacity 100 Sets/Month

Product Description

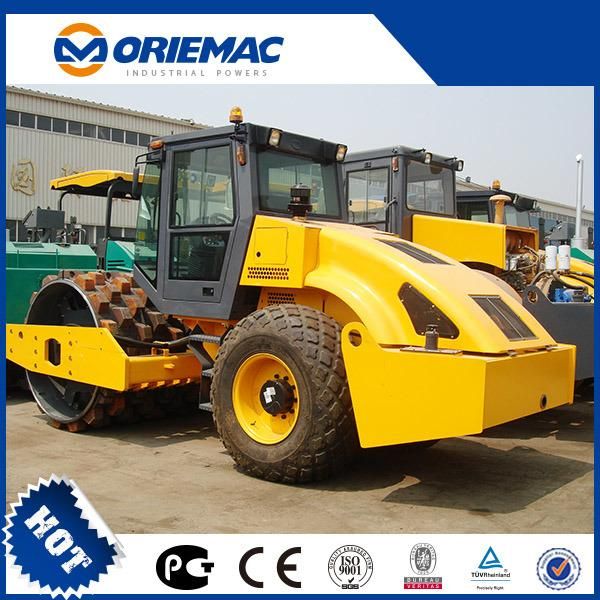

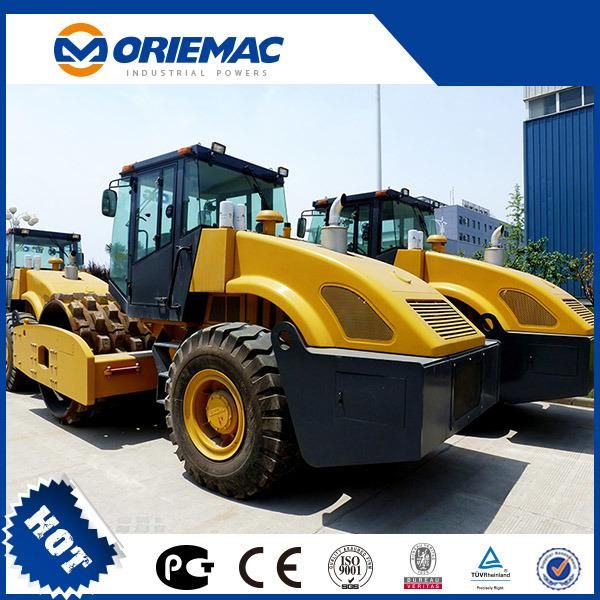

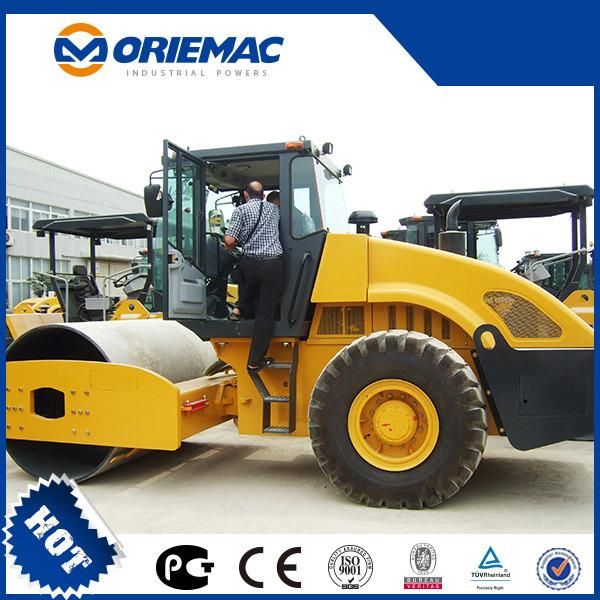

Vibratory Compactor XS222E Road Roller
1. Reliable performance and high performance
2. Advanced technology
3. SC8D190.1G2

Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
 is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access to.

Item	Unit	XS222E
Operation weight	kg	22000
Front axle load	kg	15000
Static linear load	kg/mm	704
Vibration frequency	Hz	28/33
Nominal amplitude	mm	1.86/0.93
Excitation force	kN	390/270
Speed I	km/h	0~4
II	km/h	0~5
III	km/h	0~6.4
iv	km/h	0~10
Theoretical gradeability	%	50
Min. turning radius (internal)	mm	4370
Engine model		SC8D190.1G2
Rated power	kW	140
Rated speed	rpm	2200
Dimension (Length ×Width× Height)	mm	6222×2390×3077
