• Model NO.：CS920
• Type：Small Loader
• Rated Bucket Capacity：1.00cbm
• Operating Weight：5700kg
• Dimension：5800*2000*2750mm
• Engine Model：Yto-Lr4b3 and Cumminsb3.3
• Load and Unload Method：Front Discharge
• Model：CS920
• Certificate：Ce
• Brand：Caise
• Color：Yellow
• Cab：Air Conditioner
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：Caise
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：500 Set,Sets , Month

Basic Info.

Model NO. CS920 Type Small Loader Rated Bucket Capacity 1.00cbm Operating Weight 5700kg Dimension 5800*2000*2750mm Engine Model Yto-Lr4b3 and Cumminsb3.3 Load and Unload Method Front Discharge Model CS920 Certificate Ce Brand Caise Color Yellow Cab Air Conditioner Transport Package Nude Packing Specification CE, ISO9001 Trademark Caise Origin Shandong, China HS Code 84295100 Production Capacity 500 Set/Sets / Month

Product Description

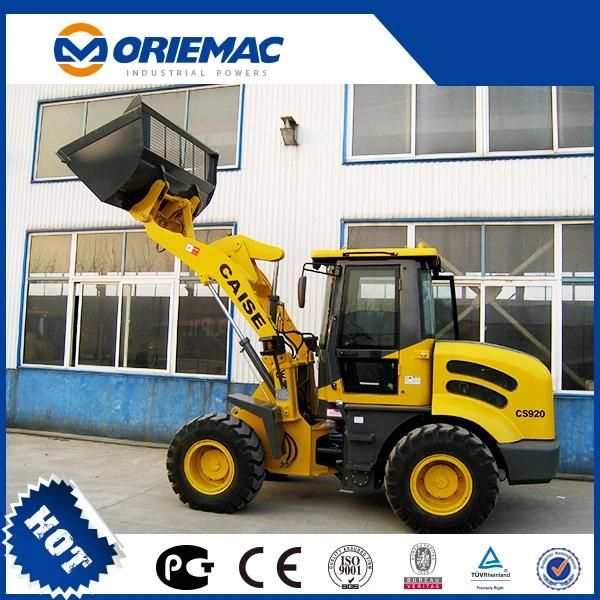

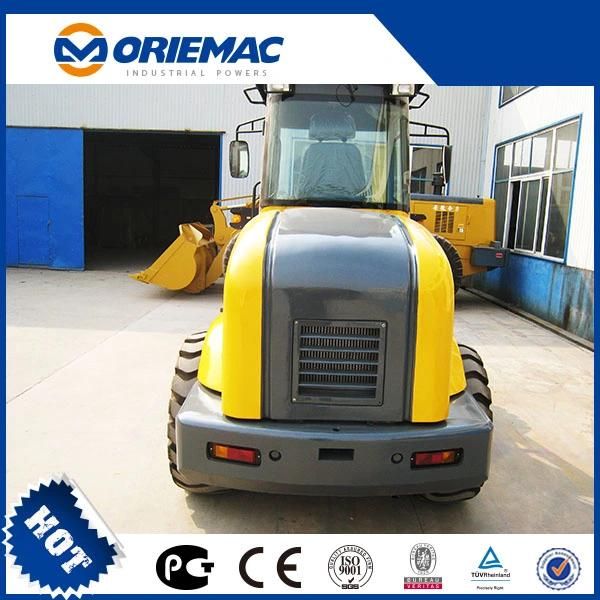

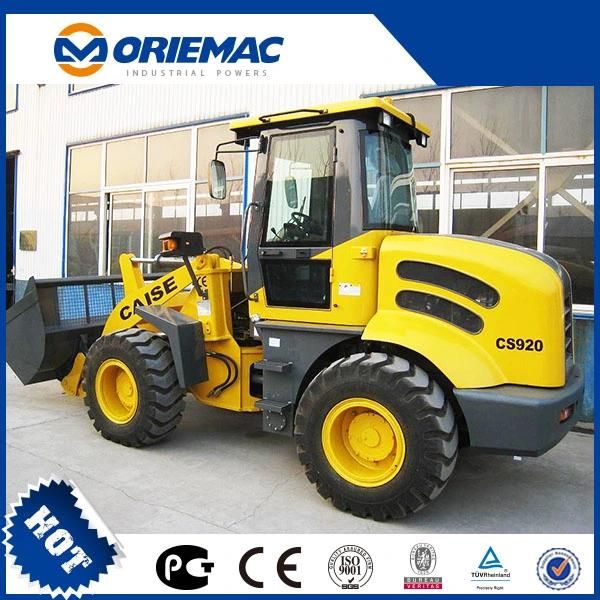

Caise cs920 wheel loader with cummins engine

2 ton small wheel loader CS920
Reliable performance and high costperformance
CE,EPA approved

mode	CS920
Rated loading weight	2000kg
Overall weight	5800 kg
The minimal circle diameter	310mm
Rated bucket capacity	1.00 m3_1.2 m3
Track base	1500mm
Wheel base	2350mm
Min.swerve diameter	4600mm
Min.ground clearance	350mm
Dump height fully raised	2800-3100mm
Reach fully raised	1050mm
Lifting time	≤5.0s
Driving mode	Four-wheel full hydraulic drive
Transmission gear box form	2 gear hydraulic variable speed changes
Operating weight	5700kg
Dimension(L×W×H)	5800×2000×2750mm
Engine model	YTO-LR4B3   and  CumminsB3.3
Engine Power	60KW
Rated speeds	2400rpm
Max.tilt anglle	30%
Max.bucket breakout force,lift cylinder	60KN
Maximum Speed	28m/h
Type Specification	16/70-20
Front wheel pressure	220kpa
Rear wheel pressure	180kpa

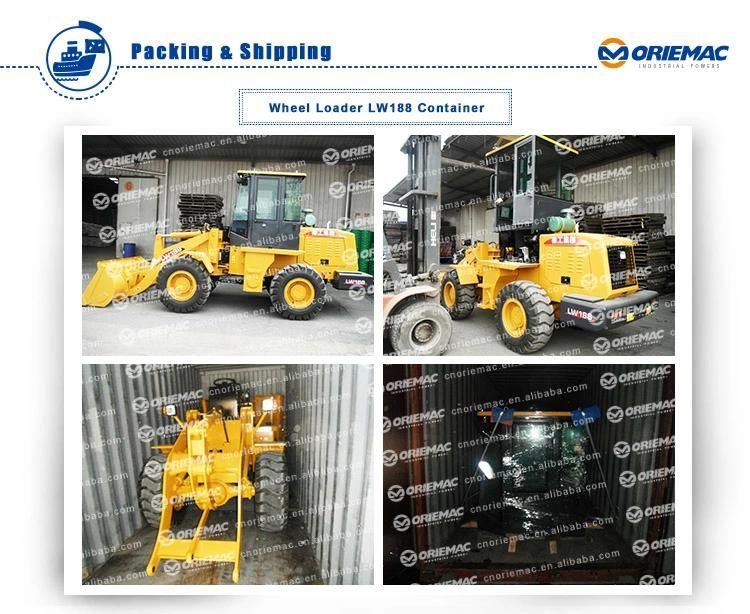

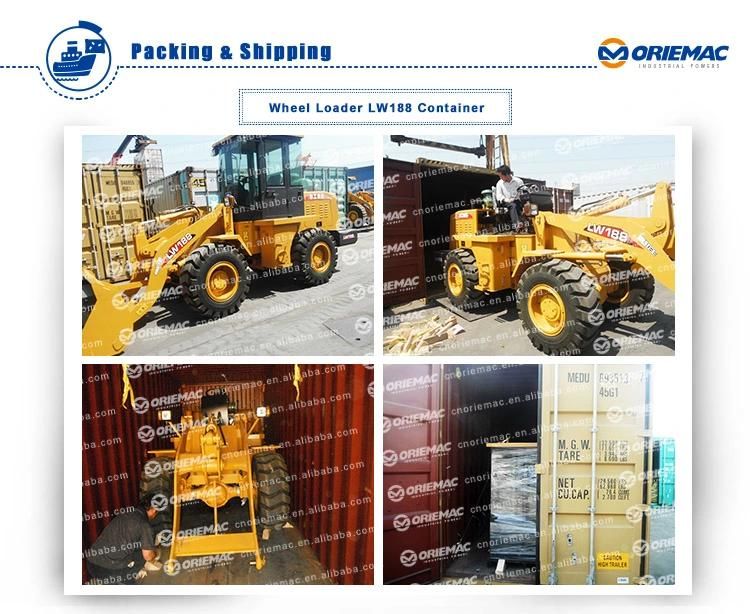

Packing and shipment
