• Model NO.：sd16
• Dozing Capacity：4.5m3
• Ripper：3 Shank Riper
• Transport Package：40hq
• Specification：ISO, CE
• Trademark：Shantui
• Origin：Shandong
• Production Capacity：1000sets,Month

Basic Info.

Model NO. sd16 Dozing Capacity 4.5m3 Ripper 3 Shank Riper Transport Package 40hq Specification ISO, CE Trademark Shantui Origin Shandong Production Capacity 1000sets/Month

Product Description

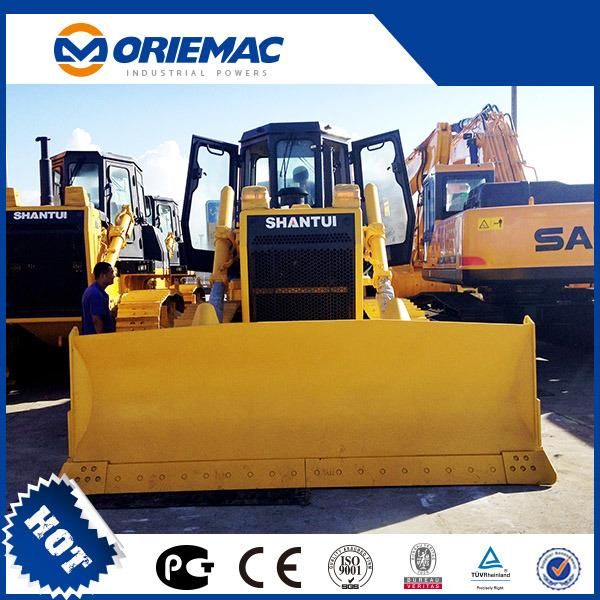

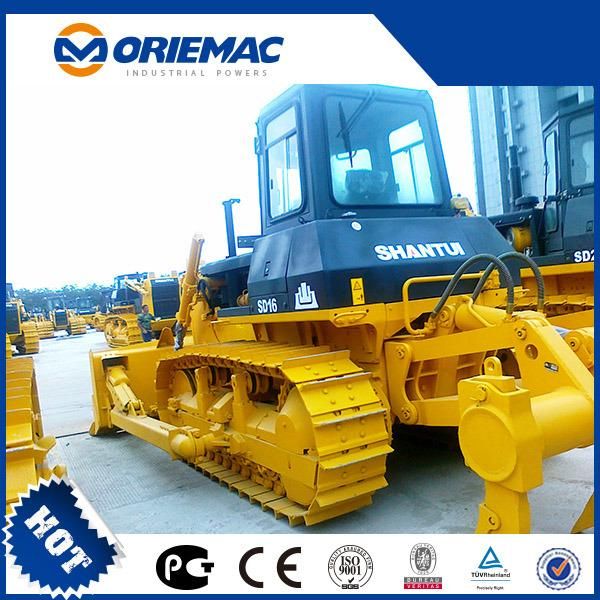

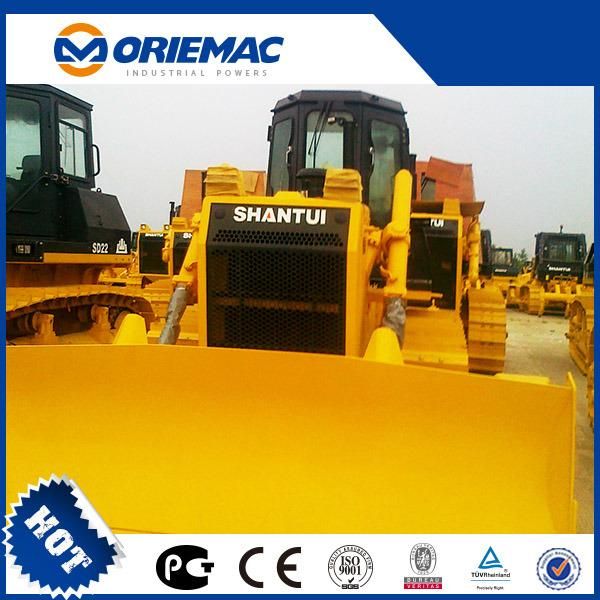

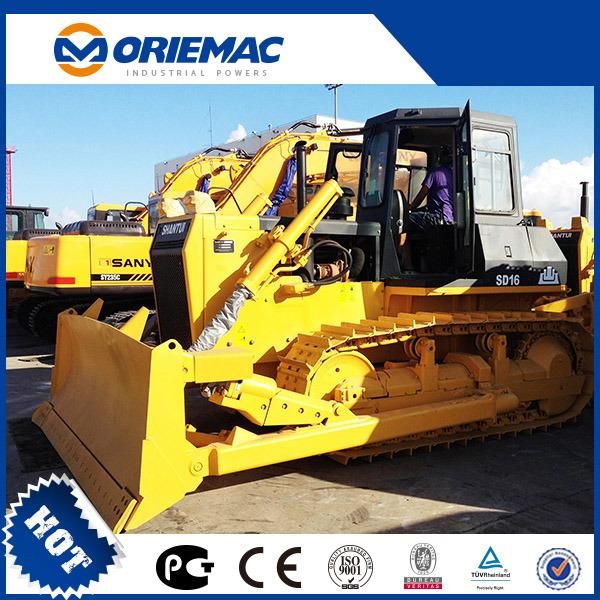

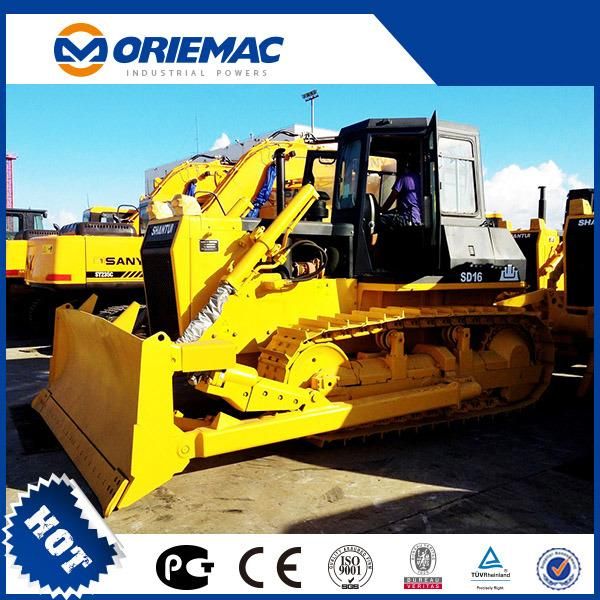

160HP China Top Brand Shantui Bulldozer SD16 Hot Sale

1. Engine: Shangchai C6121/Steyr WD615T1-3A
2. Rated power: 120 kw/160 HP
3. Operating weight: 17 t

Categories:	Bulldozer
Model	SD16
name	SD16 bulldozer
clicks:	418
Engine	Shangchai C6121ZG70B/Steyr WD10G175E15
Weight	17t



Specification Blade Type	Straight-tilt	Angle	U-type
Min.ground clearance(mm)	400	400	400
Ground pressure(MPa)	0.067	0.067	0.067
Min.turning radius(m)	4.7	4.5	4.9
Gradeability(°)	30	30	30
Track gauge(mm)	1880	1880	1880
Dozing capacity(m3)	4.5	4.4	5.0
Efficiency(Theoretical value in 40m)(m3 /h)	225	225	250
Blade width(mm)	3388	3970	3556
Blade height(mm)	1149	1090	1120
Max.drop below ground (mm)	540	540	530
Max.tilt adjustment(mm)	400	-	400

  ENGINE
Model^^^^^^^^^^^^^^^^^....ShangchaiC6121ZG70B / STEYR WD10G175E15
Water cooled,in-line,4-stroke,injection direct
Rated horsepower^^^^^^^^^^^^..120kW
Rated revolution^^^^^^^^^^^^.......1850r/min
Cylinder number-bore×stroke^^^^^^.......6-126×130mm
Piston displacement^^^^^^^^^^^...9.726L
Min.fuel consumption^^^^^^^^^^......214g/KW.h
Max. torque^^^^^^^^^^^^^^^....764N.m
TRAVEL SPEED

Gear	1st	2nd	3rd
Foward(km/h)	0-3.29	0-5.28	0-9.63
Reverse(km/h)	0-4.28	0-7.59	0-12.53
