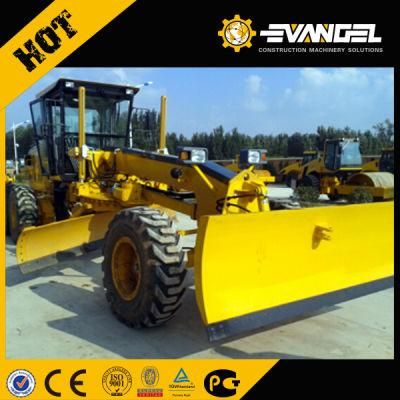

High Quality Good Price New 215HP Motor Grader Gr215

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Forward Speed(Km/H)：38
  • Reverse Speed(Km/H)：23
  • Weight：16500kg
  • Dimension(L*W*H)：8970X2625X3470mm
  • Engine Rated Power/Rev：140kw,2200rpm
  • Max. Gradeability：20%

Base Info

  • Model NO.：GR215
  • Transport Package：Nude Packing
  • Specification：CE, ISO
  • Trademark：XCM
  • Origin：Jiangsu, China
  • Production Capacity：500,Month

Description

Basic specificationEngine model6CTAA8.3 6CTA8.3Rated power/speed  153kW/2200rpm  160kW/2200rpmDimension(LxWxH)8970×2625×3470mmOperating weight(Standard)16500kgPerformance specificationTravelling speed ,forward5,8,11,19,23,38 km/hTravelling speed ,reverse5,11,23 km/hTractive force(f=0.75)82KNMax. gradeability20%Tire inflation pressure260 kPaWorking hydraulic pressure16 MPaTransmission pressure1.3~1.8MPaOperating specificationMax. steering angle of front wheels±50°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box15Frame articulation angle±27°Min. turning radius using articulation7.3mBiadeMaximum lift above ground450mmMaximum depth of cutting500mmMaximum blade position angle90°Blade cutting angle28°_70°Circle reversing rotation360°Moldboard width X height4270×610mm
